Termostato per guida DIN Sygonix SY-5984674 -20 a +100 °C per riscaldamento e raffreddamento

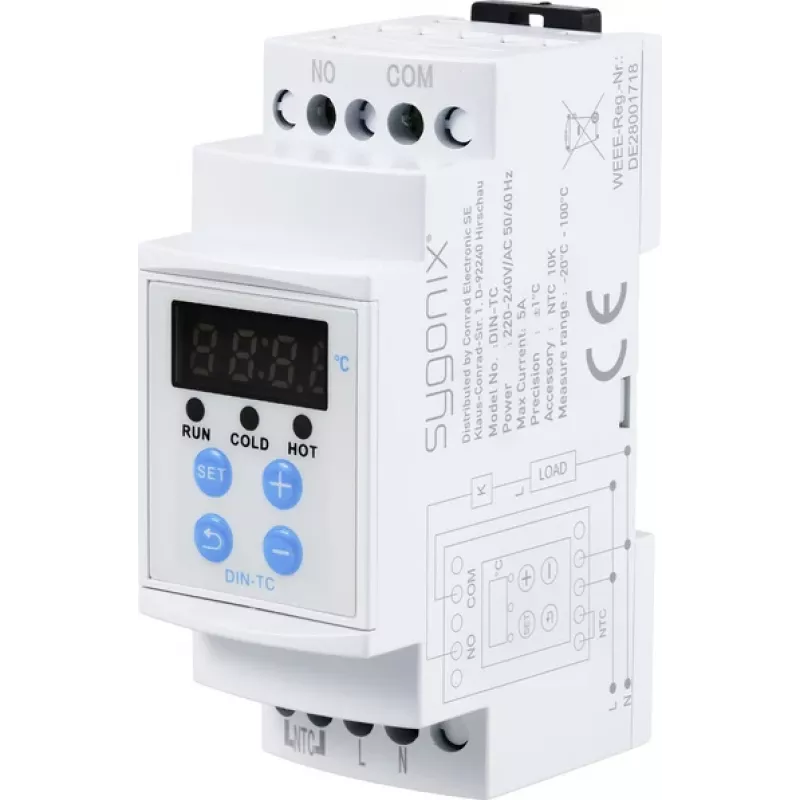

Sygonix SY-5984674 is a DIN rail mounted temperature switch with an adjustable range from -20 to +100 °C, designed for controlling heating and cooling systems. Unlike simple thermostats, it offers a relay output, adjustable hysteresis, and a remote NTC sensor for precise temperature management.

Highlights

• Wide temperature control range: -20 to +100 °C
• Dual control modes: heating and cooling
• Adjustable hysteresis from 0.1 to 30 °C
• Remote NTC sensor with 2 m cable
• 3-digit LED display for clear readout
• DIN rail mounting (TS-35)

In daily use

The switch mounts on a standard DIN rail in a control cabinet. Connect the sensor, set the desired temperature and hysteresis, and the relay output will switch the connected heater or cooler. The LED display shows the current temperature or setpoint, and the calibration function allows fine-tuning.

Full specifications

• Temperature control range: -20 to +100 °C
• Operating voltage: 230 V/AC
• Max. switching current: 10 A
• Max. switching power: 2300 W
• Sensor type: NTC thermistor
• Sensor cable length: 2 m
• Display type: 3-digit LED
• Mounting type: DIN rail (TS-35)
• Control modes: heating, cooling
• Hysteresis range: 0.1 to 30 °C
• Temperature resolution: 0.1 °C
• Temperature accuracy: ±1 °C
• Protection class: IP20
• Ambient operating temperature: -10 to +60 °C
• Power consumption: < 3 W
• Output type: 1x relay (NO contact)
• Sensor probe material: stainless steel
• Sensor probe dimensions: Ø 6 x 50 mm
• Connection type: screw terminals
• Functions: temperature calibration, delay start

Final note

A reliable and precise temperature controller for industrial and building automation, offering flexible configuration and robust DIN rail mounting.
