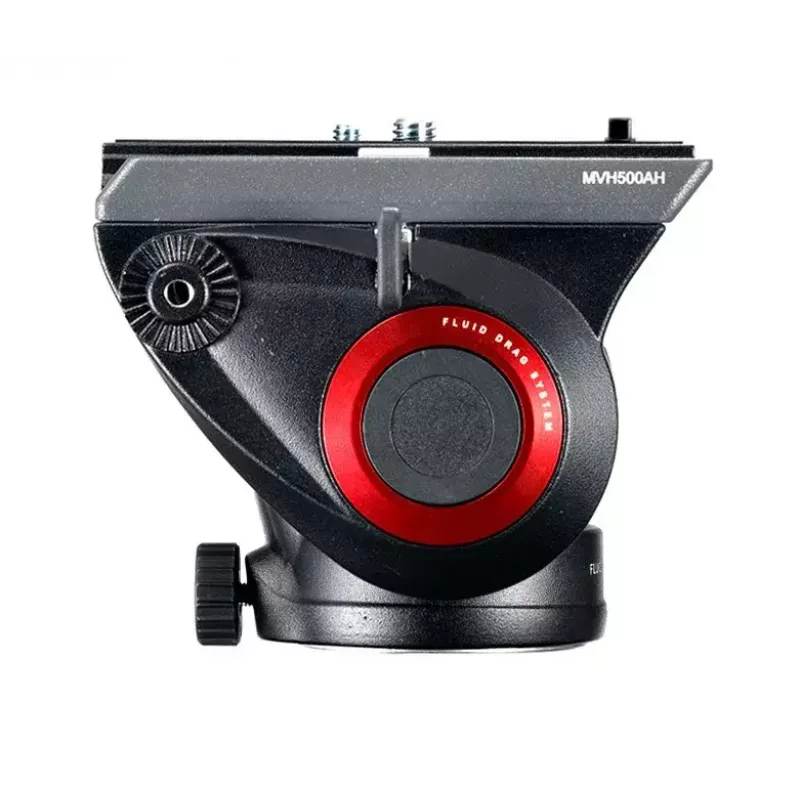

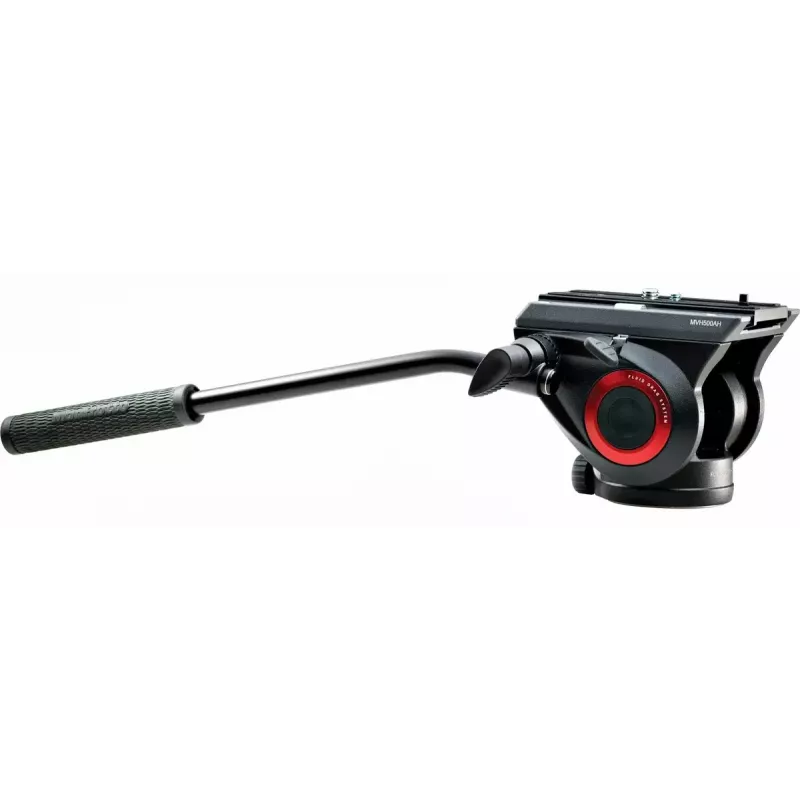

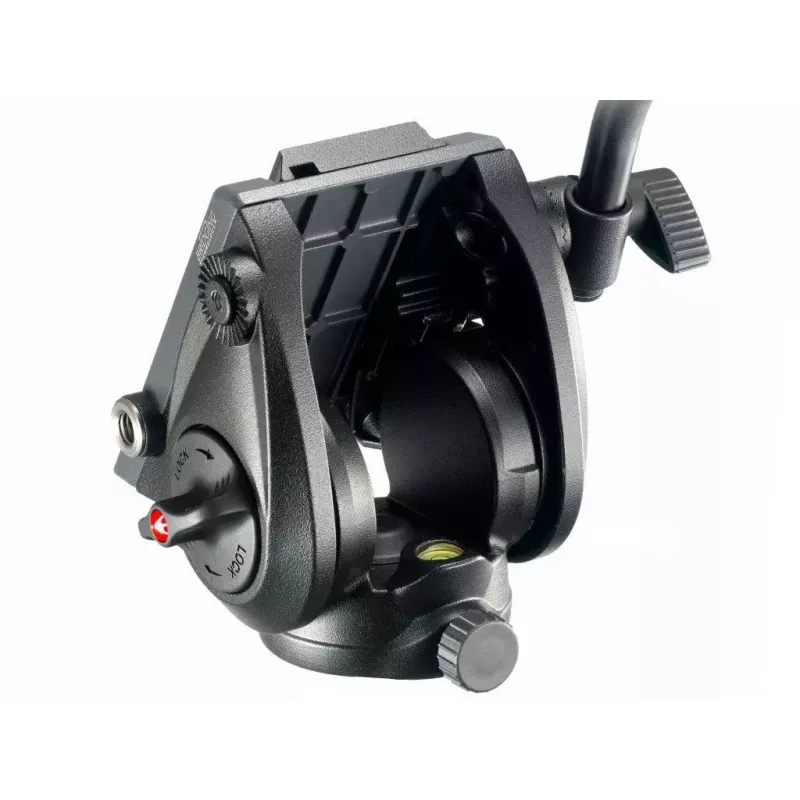

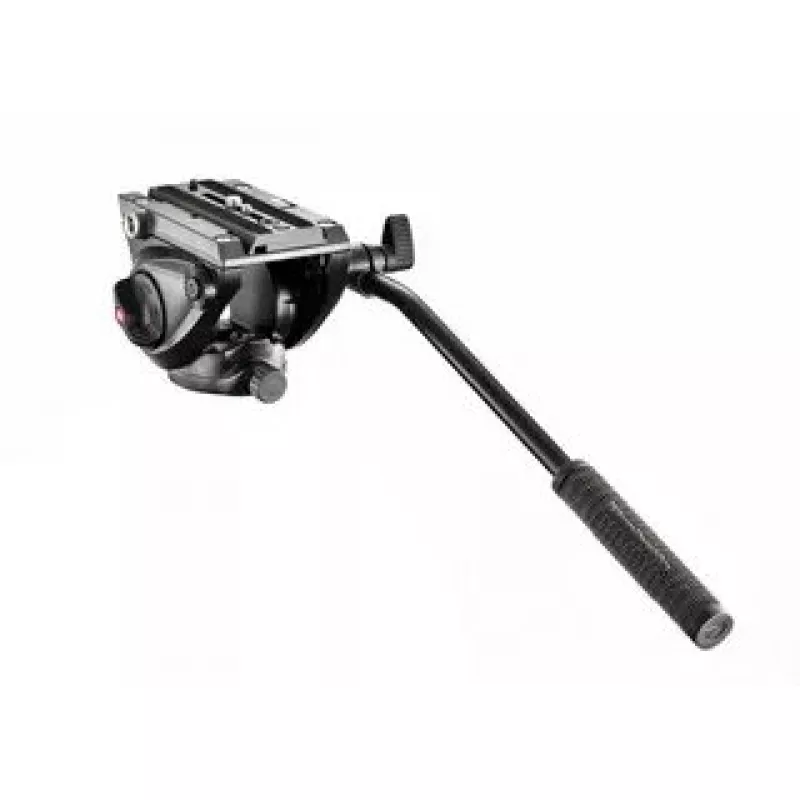

Testa per treppiedi Manfrotto MVH500AH nero alluminio 3/8 pollice

The Manfrotto MVH500AH is a lightweight aluminium video head with a wider sliding platform designed for HDSLR and interchangeable‑lens cameras. It replaces the earlier 701HDV head and supports smooth, controlled camera movements while carrying up to 5 kg (11 lb). The head includes a flat base tripod mount and a 3/8" Easy Link connector for attaching external monitors or accessories, making it compatible with hybrid photo/video tripods, traditional photo tripods, sliders, monopods and other supports.

Advantages

The MVH500AH features professional fluid cartridges on both the pan and tilt axes to ensure precise, smooth motion. A side lock system lets the camera and sliding quick‑release plate click into place from above for faster, safer mounting and removal without a secondary safety lock. The head is compact and lightweight (0.9 kg) while offering a pre‑set counterbalance of 2.4 kg (5.3 lb) and a maximum payload of 5 kg (11 lb).

Suitable for

• Shooting video with HDSLRs and mirrorless cameras
• Use on hybrid photo/video tripods and sliders
• Situations requiring smooth pan and tilt control for interviews, run‑and‑gun filming and tabletop shoots

Key specifications

• Model: Manfrotto MVH500AH
• Material: Aluminium
• Colour: Black
• Maximum payload: 5 kg (11 lb)
• Pre‑set counterbalance: 2.4 kg (5.3 lb)
• Weight: 0.9 kg
• Height: 95 mm
• Mounting thread / connector: 3/8" Easy Link and flat base tripod mount
• Replaces: Manfrotto 701HDV

How to use

Attach the MVH500AH to a compatible support using the flat base tripod mount. Fix the camera to the sliding quick‑release plate, then engage the side lock by lowering the camera into the head until it clicks. Use the fluid pan and tilt controls to perform smooth moves; adjust framing by sliding the plate to balance the camera when necessary. Use the Easy Link 3/8" connector to attach an external monitor or accessory if required.

Recommendations

For best results, balance cameras close to the head’s pre‑set counterbalance and avoid exceeding the 5 kg payload. Regularly check the side lock engagement and keep fluid cartridges free of debris to maintain smooth operation.
