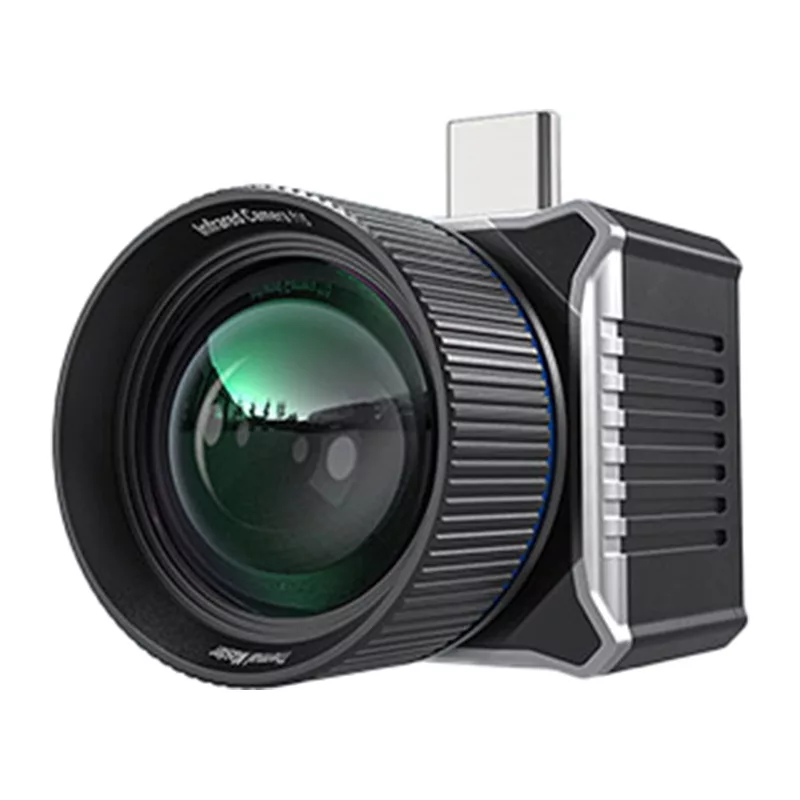

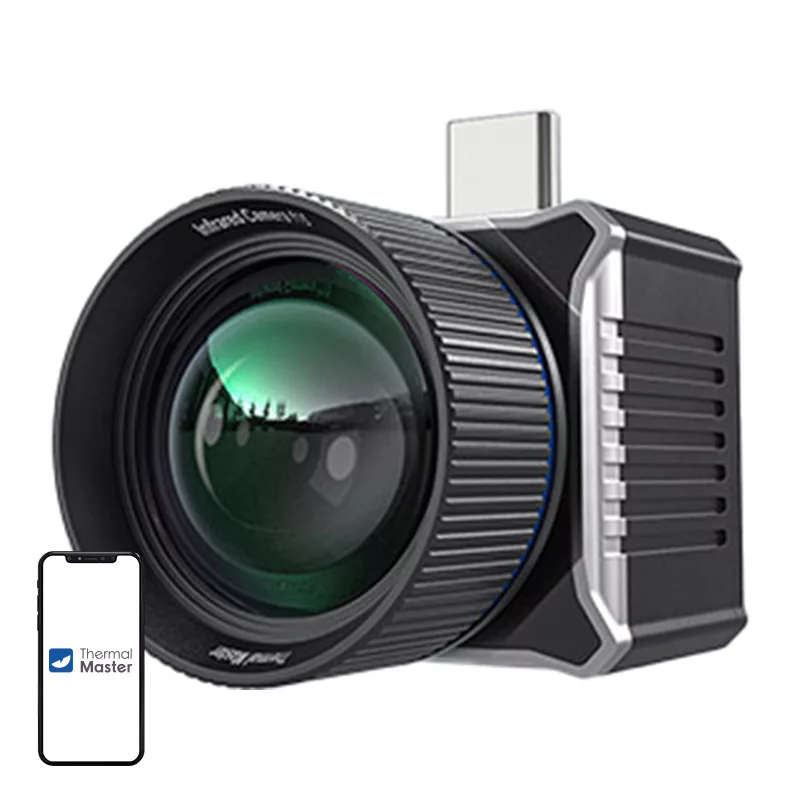

THERMAL MASTER T2Max Termocamera

The THERMAL MASTER T2Max is a compact thermal imaging camera designed for professional diagnostics, electrical inspections, and building maintenance. With a 256x192 pixel detector and a wide temperature range from -20°C to +550°C, it delivers accurate thermal analysis for a variety of applications. The device connects directly to Android smartphones via USB-C OTG, making it a portable and versatile tool for on-the-go thermal inspections.

Advantages

High-resolution thermal imaging with 12 μm pixel pitch and NETD ≤50 mK ensures clear temperature differentiation. The adjustable emissivity (0.01-1.0) and multiple measurement modes (point, line, area) provide flexibility for different surfaces and scenarios. With 11 color palettes and continuous digital zoom up to 15x, users can customize the view for detailed analysis. Low power consumption (<350 mW) and USB-C interface make it easy to use with smartphones for extended periods.

Suitable for

• Electrical panel and circuit board inspections
• Building envelope diagnostics and insulation checks
• HVAC system troubleshooting
• Mechanical equipment monitoring
• Predictive maintenance in industrial settings

Key specifications

• Detector Resolution: 256 x 192 pixels
• Temperature Range: -20°C to +550°C
• Accuracy: ±2°C or ±2% (whichever greater)
• Field of View: 56° x 42°
• Focus: Manual adjustable lens
• Frame Rate: 25 Hz
• Digital Zoom: 1x-15x continuous
• Interface: USB Type-C (OTG for Android)
• Power Consumption: <350 mW
• Operating Temperature: -10°C to +50°C

Recommendations

For best results, use with an Android smartphone that supports USB-C OTG. Ensure the lens is clean and focused before each measurement. Adjust emissivity according to the material being measured for accurate temperature readings.
