Thermaltake CT200 20 cm bianca 500-900 giri/min cuscinetto idraulico

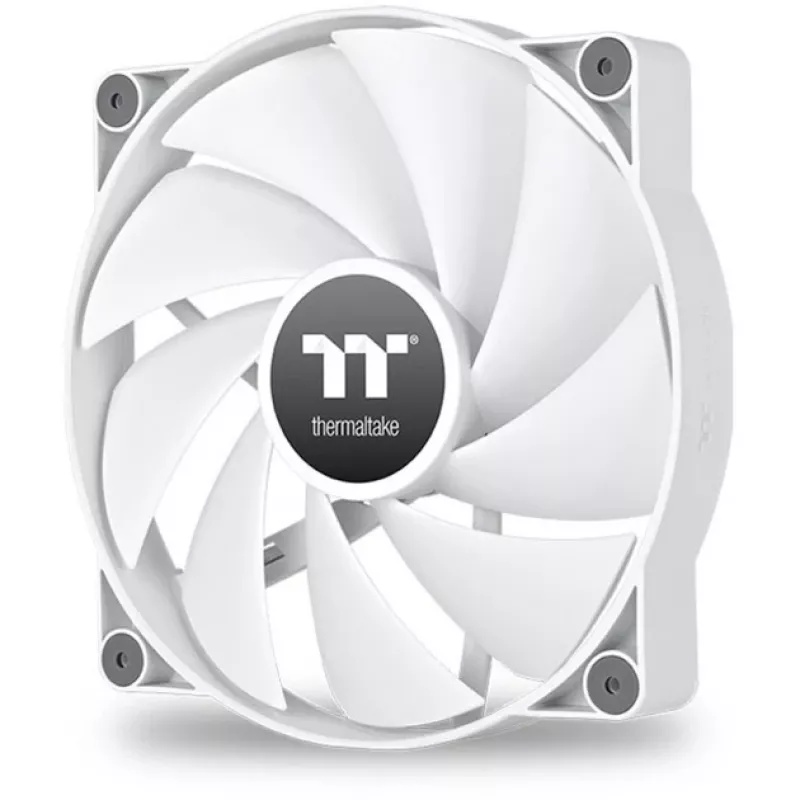

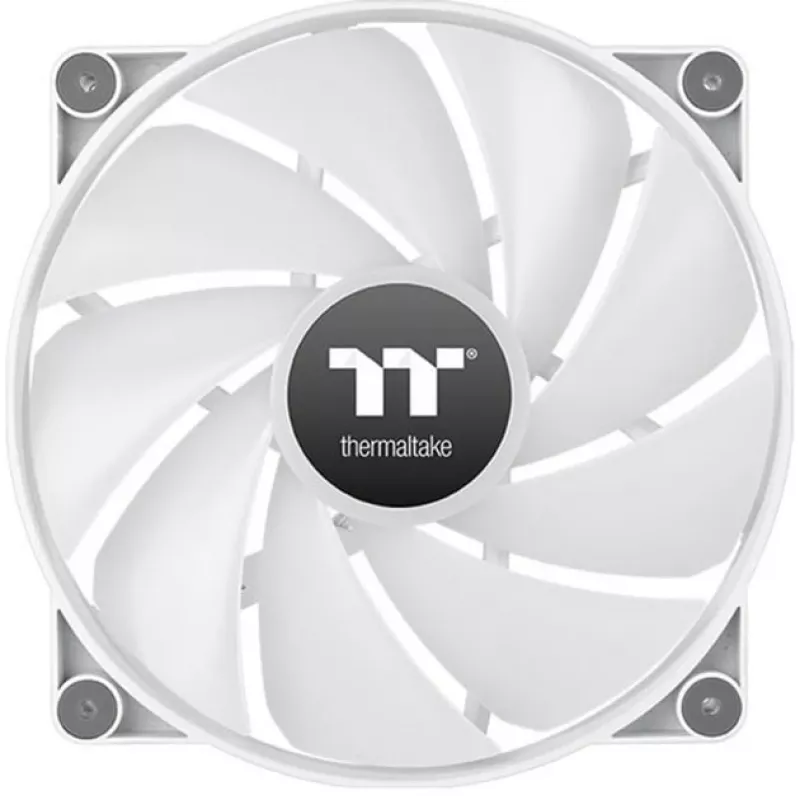

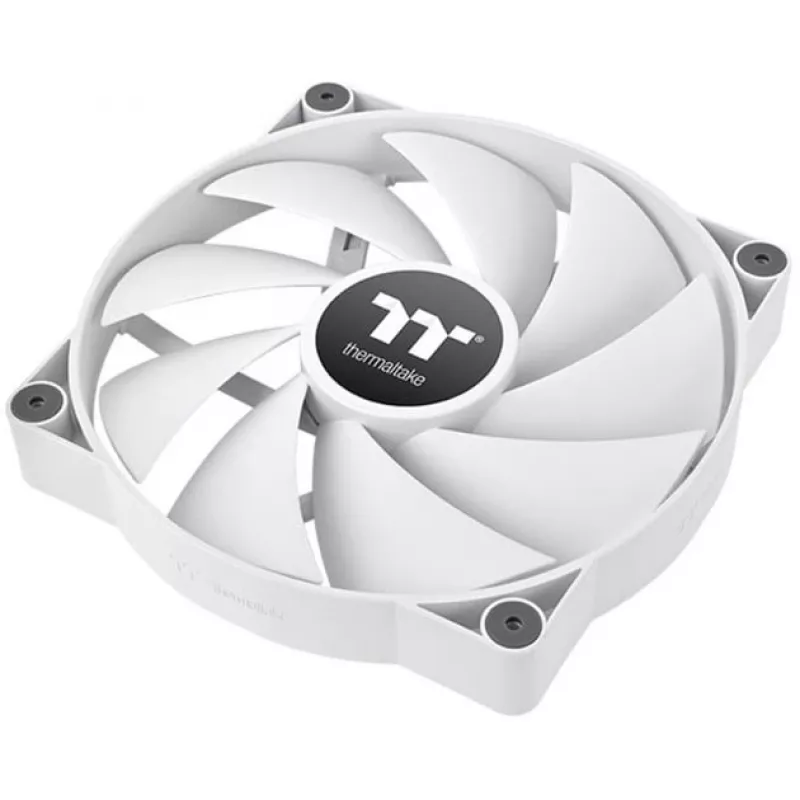

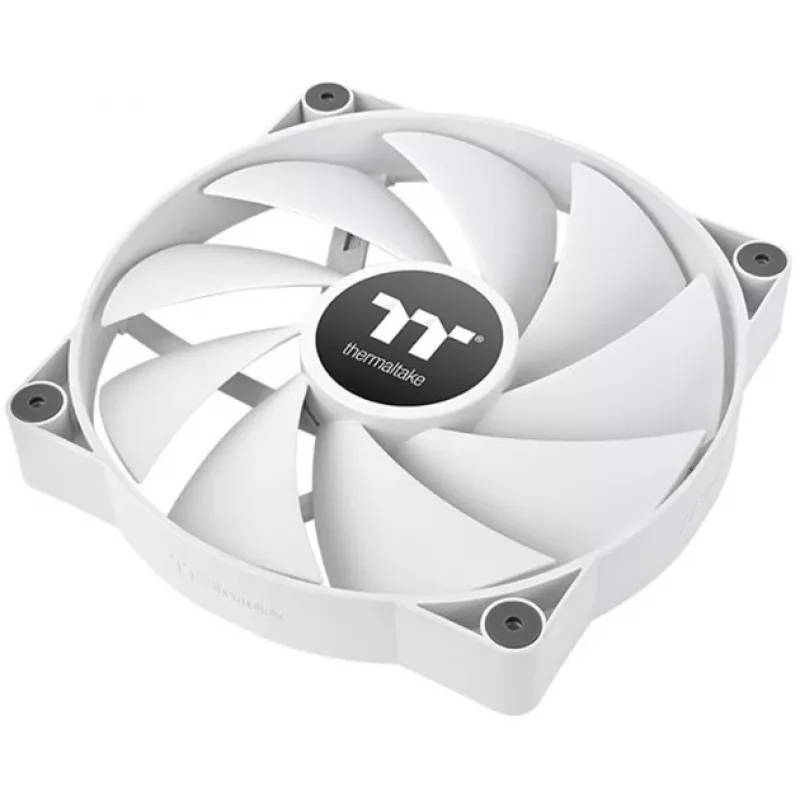

The Thermaltake CT200 White Fan is a 200 mm PWM case fan designed for general PC cooling. It operates in the 500–900 RPM range and uses a hydraulic bearing for quieter operation and increased durability. The fan features nine specially tuned blades that deliver up to 1.92 mm-H2O static pressure and an airflow of 131.6 CFM at its rated maximum, while maintaining a noise level around 27.2 dB-A. A cable-integrated daisy-chain design and a 900 mm PWM cable simplify cable management, and anti-vibration rubber pads at each corner reduce vibration when installed.

Advantages

The CT200 offers balanced airflow and static pressure suitable for both intake and exhaust applications, combined with low-noise hydraulic bearing operation. Its nine-blade design and tuned blade profile improve air delivery, while the cable-integrated daisy-chain reduces the need for multiple motherboard PWM headers and shortens inter-fan cable lengths. Corner anti-vibration pads help stabilize the fan and dampen operational noise and vibration.

Suitable for

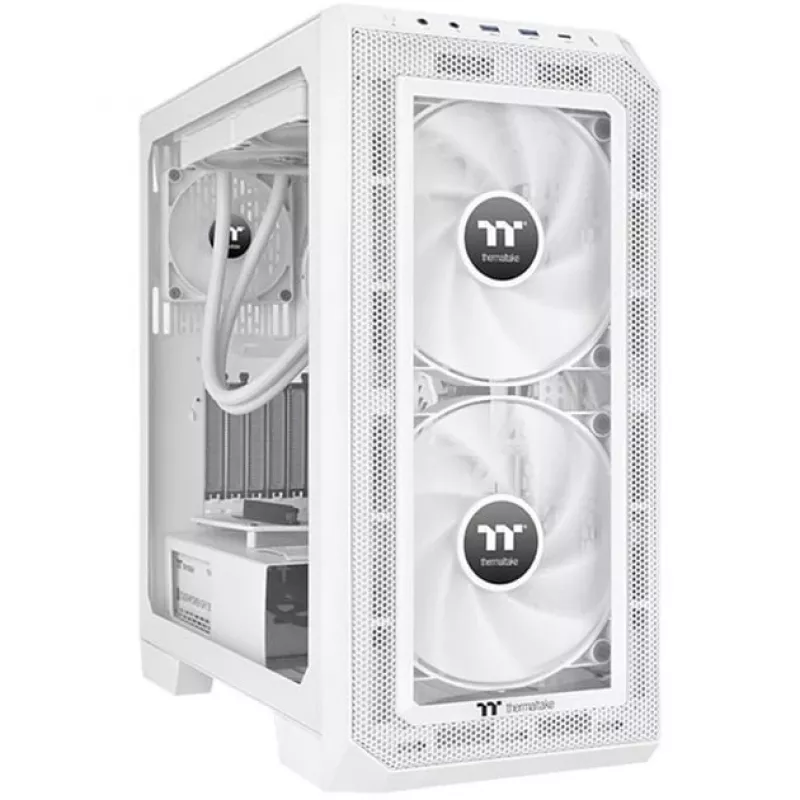

• General PC case cooling (intake or exhaust)
• Large-radius radiators or heatsinks requiring moderate static pressure
• Builds where reduced cable clutter is desired

Key specifications

• Size: 200 mm x 200 mm x 30 mm
• Speed: 500–900 RPM (PWM)
• Static pressure: up to 1.92 mm-H2O
• Airflow: up to 131.6 CFM
• Noise level: approximately 27.2 dB-A
• Bearing type: Hydraulic bearing
• Color: White

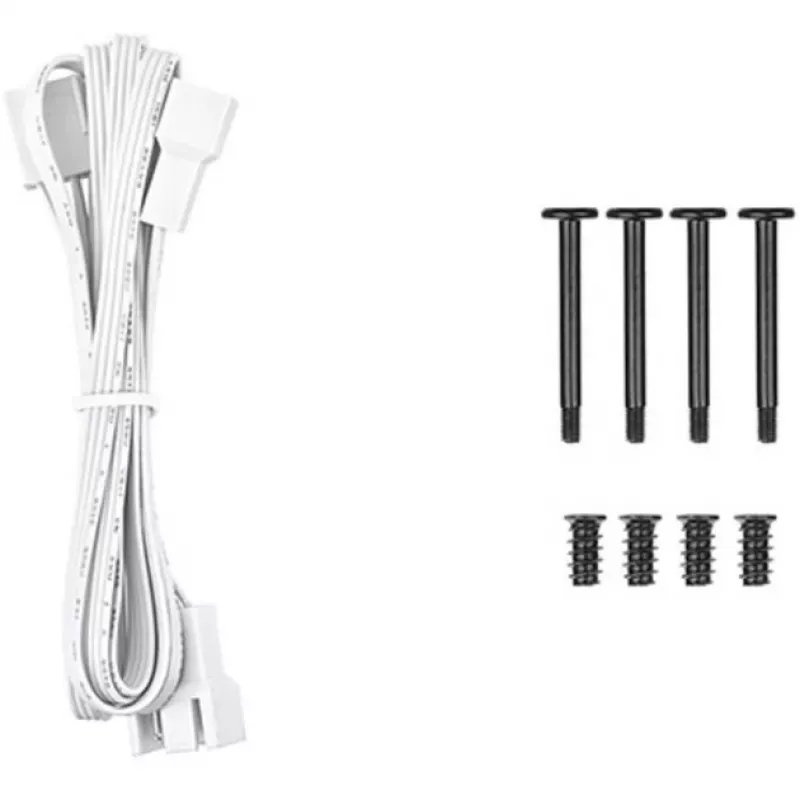

• Included cable: 900 mm PWM cable; cable-integrated daisy-chain design
• MPN: CL-F178-PL20WT-A
• EAN: 4711475641310

How to use

Mount the CT200 fan in your PC case using the four corner screw holes; ensure the airflow direction matches your intended intake or exhaust orientation. Connect the fan to the PWM header on your motherboard or link multiple fans using the integrated daisy-chain cable, then attach the primary PWM connector to the board. Configure fan curves or PWM settings in your BIOS or fan-control software to achieve the desired balance between cooling and noise.

Recommendations

Install the fan on a stable surface and use the provided anti-vibration pads to minimize chassis vibration. For radiator use, verify sufficient clearance for the 200 mm size and set PWM profiles to limit maximum RPM if lower noise is preferred.
