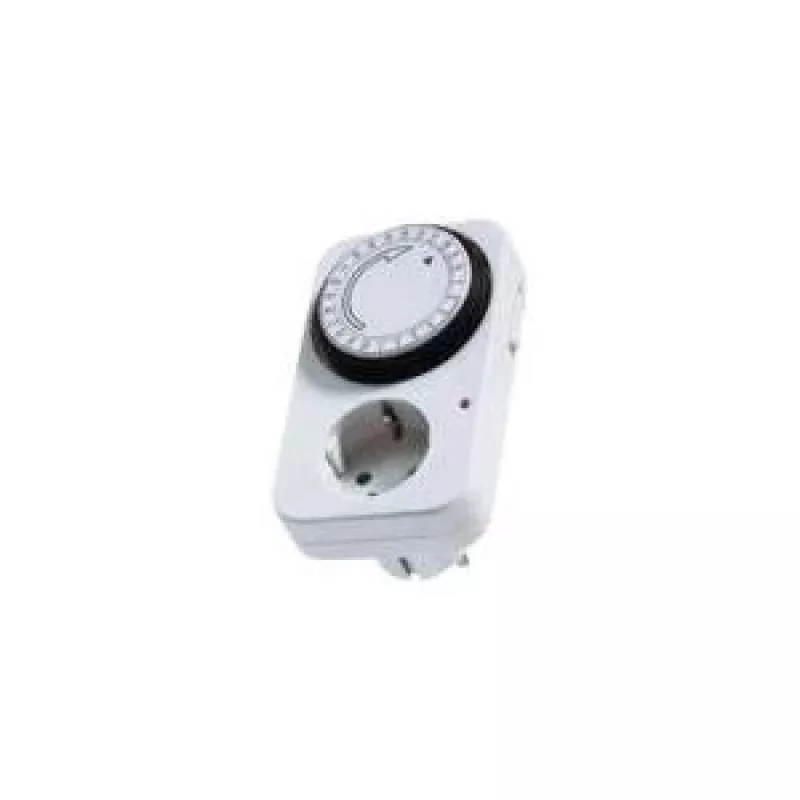

Timer giornaliero Bachmann 24h 1x Schuko 16A/230V~/3680W bianco

The Bachmann 24h Daily Timer with a single Schuko socket (16A/230V~/3680W) is a plastic, child-proof mechanical timer designed for daily automation of electrical appliances. It features a rotary control and an easy-to-read design in white, with an included operating manual. The unit measures 121 x 74 x 76 mm and is intended for straightforward on/off scheduling over a 24-hour period.

Advantages

This timer provides reliable daily switching with a minimum interval of 15 minutes and supports up to 96 on/off operations per day. Its child-proof plastic housing increases safety in household environments, while the included manual simplifies setup. The 16A Schuko socket allows a maximum load of 3680 W at 230 V, making it suitable for a variety of mains-powered devices.

Suitable for

• Automating lamps and lighting
• Controlling small household appliances (e.g., fans, heaters within rated power)
• Scheduling aquarium or terrarium equipment
• Energy-saving timed operation of devices

Key specifications

• Socket type: 1x Schuko (16A)
• Rated voltage: 230 V AC
• Maximum load: 3680 W
• Minimum switching interval: 15 minutes
• Switching capacity: up to 96 on/off times per 24 h
• Dimensions: 121 x 74 x 76 mm (L x W x H)
• Colour: White
• Material: Plastic, child-proof

How to use

Plug the timer into a grounded wall outlet, then insert the appliance into the Schuko socket on the timer. Set the current time on the rotary dial and configure the on/off segments according to the desired schedule, observing the 15-minute minimum switching interval. After programming, leave the device powered; the timer will switch the connected appliance automatically following the 24-hour cycle.

Recommendations

Do not exceed the maximum rated load of 3680 W. Ensure connected devices are compatible with a mechanical timer and with the Schuko socket. Avoid using the timer with medical equipment or life-supporting devices. Keep the unit away from moisture and follow the included operating manual for safe installation and child-safe placement.
