Timer giornaliero LogiLink ET0012

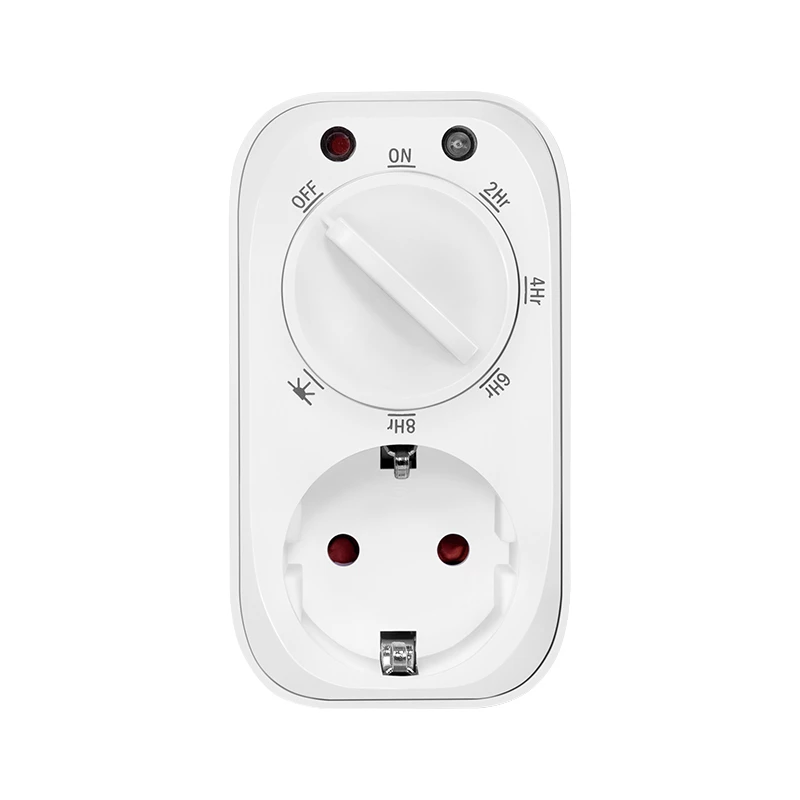

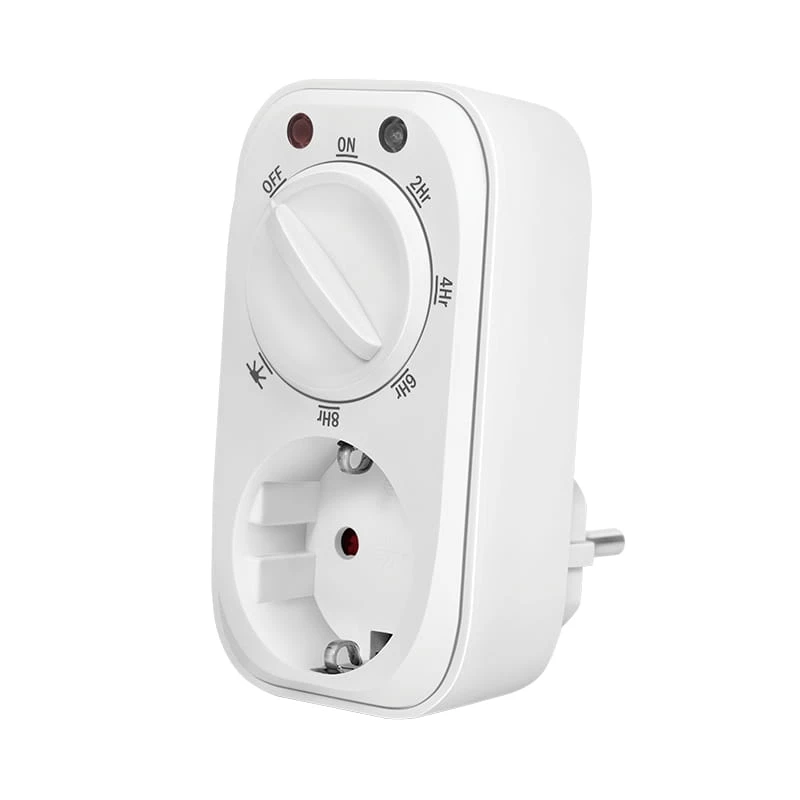

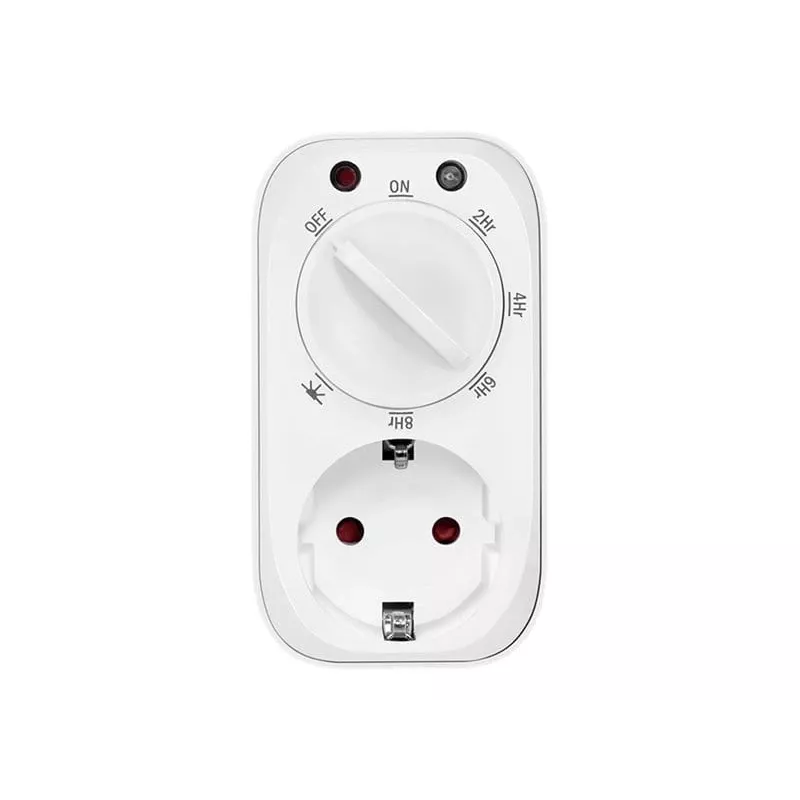

The LogiLink Daily timer ET0012 is a mechanical time switch with an integrated dusk sensor for 230 V AC devices. It features a rotary control and seven preset modes that allow automatic or manual switching of connected appliances based on ambient light or fixed on/off settings. The timer supports a maximum load of 3680 W and has compact dimensions (76 × 103 × 56 mm), making it suitable for indoor placement and simple integration with lighting and other electrical devices.

Advantages

The ET0012 provides easy operation without complicated programming thanks to seven selectable presets, including full manual ON and OFF positions and multiple dusk-based settings. Its dusk sensor enables the socket to switch on automatically at darkness and, in time-based dusk modes, to switch off again after a set period (2, 4, 6, or 8 hours). The mechanical rotary control and clear mode options make it reliable and straightforward to use.

Suitable for

• Controlling indoor lighting that should come on at dusk
• Automating lamps, garden lights (where indoors or in protected sockets), or small heaters within the 3680 W limit
• Applications requiring simple daily on/off schedules tied to ambient light

Key specifications

• Model: LogiLink ET0012
• Type: Mechanical time switch with dusk sensor
• Input voltage: 230 V AC
• Maximum power: 3680 W
• Control: Rotary knob with 7 presets (including ON and OFF)
• Dusk modes: immediate at darkness or dusk plus automatic off after 2/4/6/8 hours
• Color: White
• Dimensions: 76 × 103 × 56 mm
• Brand: LOGILINK

How to use

Plug the ET0012 into a mains socket and connect the appliance to the timer's outlet. Turn the rotary knob to select the desired mode: ON for continuous power, OFF to cut power, the general dusk mode to switch on at darkness, or one of the time-based dusk modes to switch on at darkness and off automatically after 2, 4, 6, or 8 hours. Ensure the dusk sensor can detect ambient light by placing the device where it is not blocked by furniture or enclosed in a cabinet.

Recommendations

Use the timer indoors or in protected outdoor sockets only and avoid exposure to direct water. Check that the connected appliance’s power consumption does not exceed the 3680 W maximum. For reliable dusk detection, position the timer so the sensor faces typical ambient light conditions.
