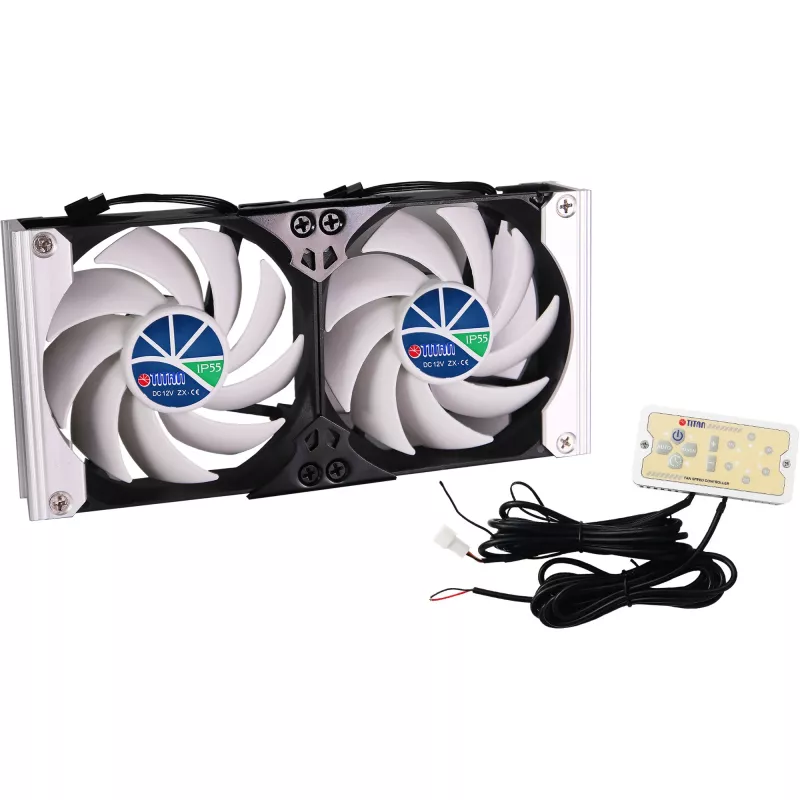

Titan TTC-SC20(A)/V2+ doppia ventola per frigorifero 92x25mm IP55 con timer e raddrizzatore

Experience superior cooling with the Titan TTC-SC20(A)/V2+ Double Refrigerator Ventilation Fan, engineered to deliver an impressive 53.0 CFM airflow at a whisper-quiet <26 dBA. This robust dual-fan unit is the ultimate solution for maintaining optimal temperatures in RV, motorhome, and caravan refrigerators, ensuring your food stays fresh even in demanding conditions.

Overview

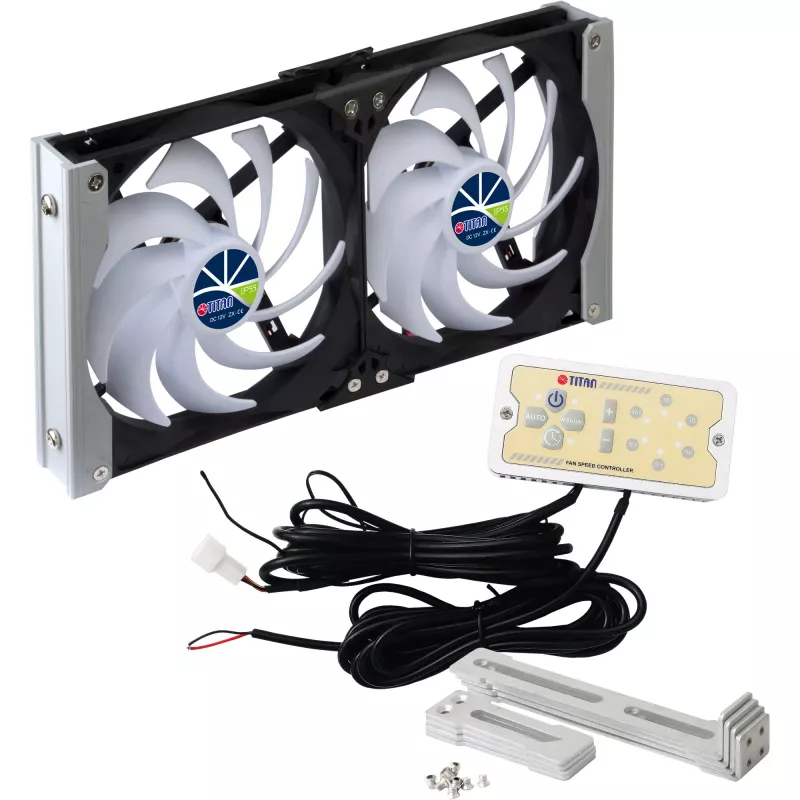

The Titan TTC-SC20(A)/V2+ is a high-performance double fan system designed specifically for refrigerator ventilation. Each fan measures 92 x 92 x 25 mm, and the complete unit has overall dimensions of 200 x 95 x 28 mm, making it compact yet powerful. Constructed from durable PBT plastic and rated IP55 for dust and water resistance, it is built to withstand the rigors of mobile environments. The unit operates on 12V DC with a wide voltage range of 7V to 13.2V, drawing only 0.48 A and consuming just 5.76 W, making it energy-efficient. It features a Z-AXIS bearing for a long lifespan of 60,000 hours and includes both automatic temperature control and a timer function for intelligent operation.

What stands out

• Dual 92mm fans deliver powerful 53.0 CFM airflow for rapid heat extraction.
• Ultra-quiet operation at less than 26 dBA, ensuring no disturbance.

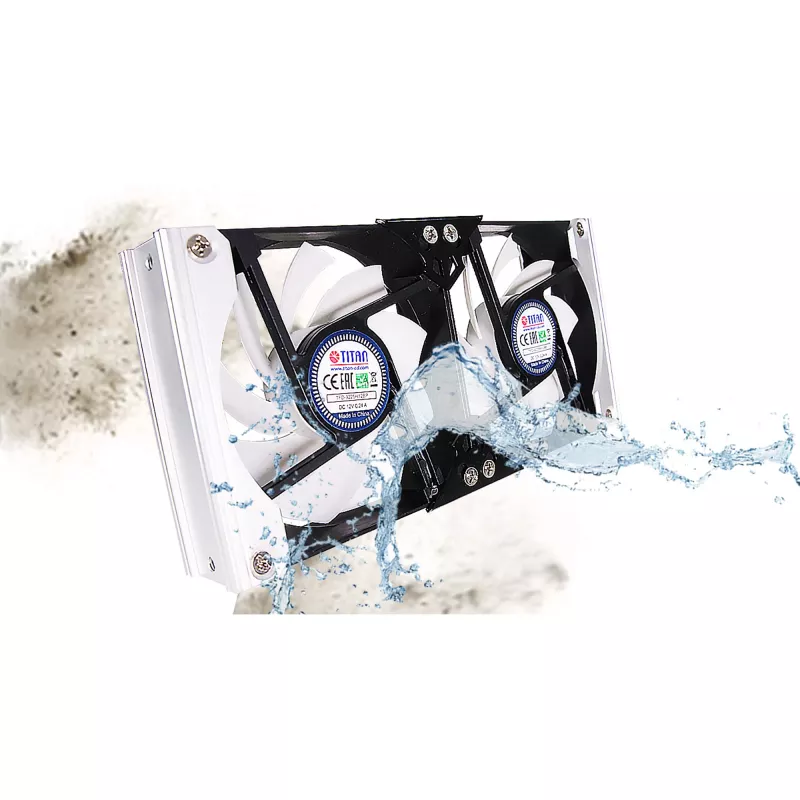

• IP55-rated protection against dust and low-pressure water jets.
• Automatic temperature control and timer for optimized performance.
• Includes AC-DC adapter for convenient connection to standard power sources.
• Long-life Z-AXIS bearing rated for 60,000 hours of continuous use.
• Easy surface mount or clip-on installation for versatile placement.

Technical details

• Fan Type: Double Refrigerator Ventilation Fan
• Individual Fan Dimensions: 92 x 92 x 25 mm
• Overall Unit Dimensions (L x W x H): 200 x 95 x 28 mm
• Rated Voltage: 12V DC
• Operating Voltage Range: 7V - 13.2V DC
• Rated Current: 0.48 A
• Power Consumption: 5.76 W
• Airflow: 53.0 CFM (90.0 m³/h)
• Noise Level: <26 dBA
• Fan Speed: 1800 RPM ±10%
• Bearing Type: Z-AXIS Bearing
• Life Expectancy: 60,000 hours
• IP Protection Rating: IP55
• Control Features: Automatic Temperature Control, Timer Function
• Power Source: DC 12V (with included AC-DC adapter)
• Application: RV, Motorhome, Caravan, Refrigerator Ventilation
• Mounting Type: Surface Mount / Clip-on
• Material: PBT Plastic

Our verdict

The Titan TTC-SC20(A)/V2+ sets a new standard for refrigerator ventilation. Its combination of high airflow, silent operation, and smart controls makes it an indispensable upgrade for any mobile cooling setup. Reliable, efficient, and built to last, it's a must-have for serious travelers.
