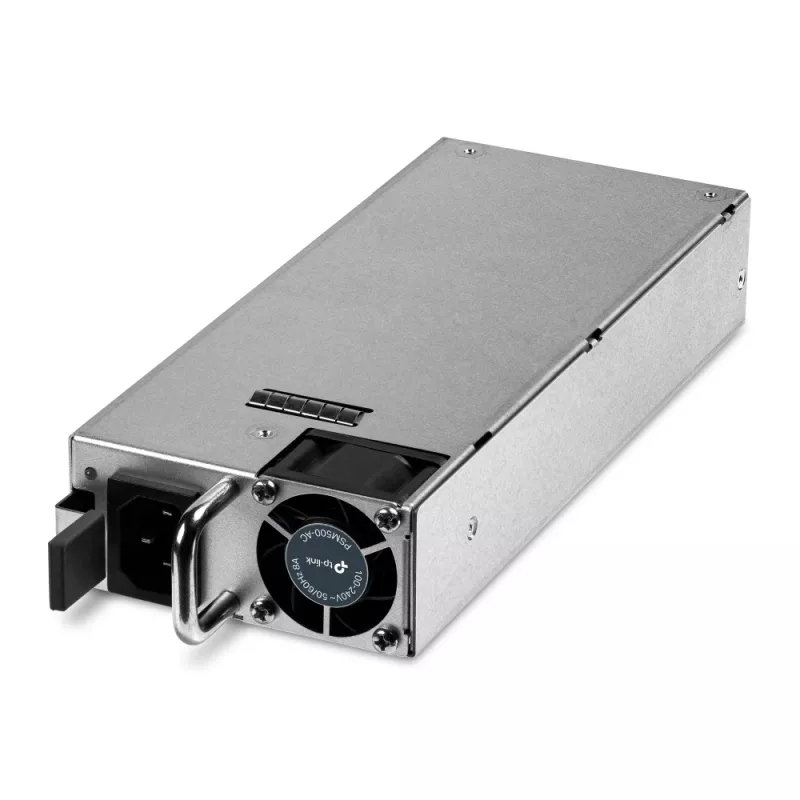

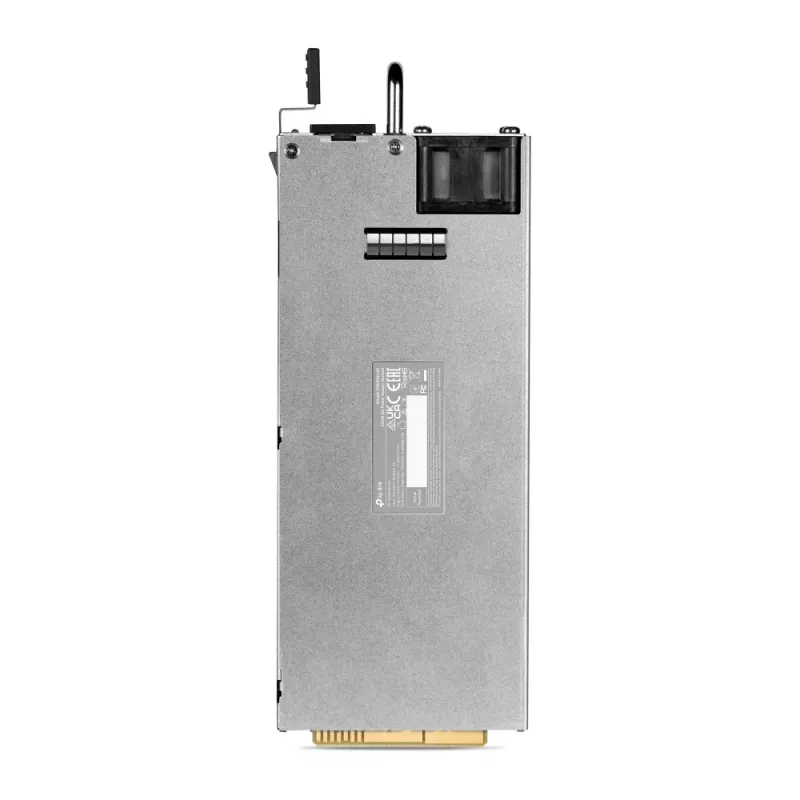

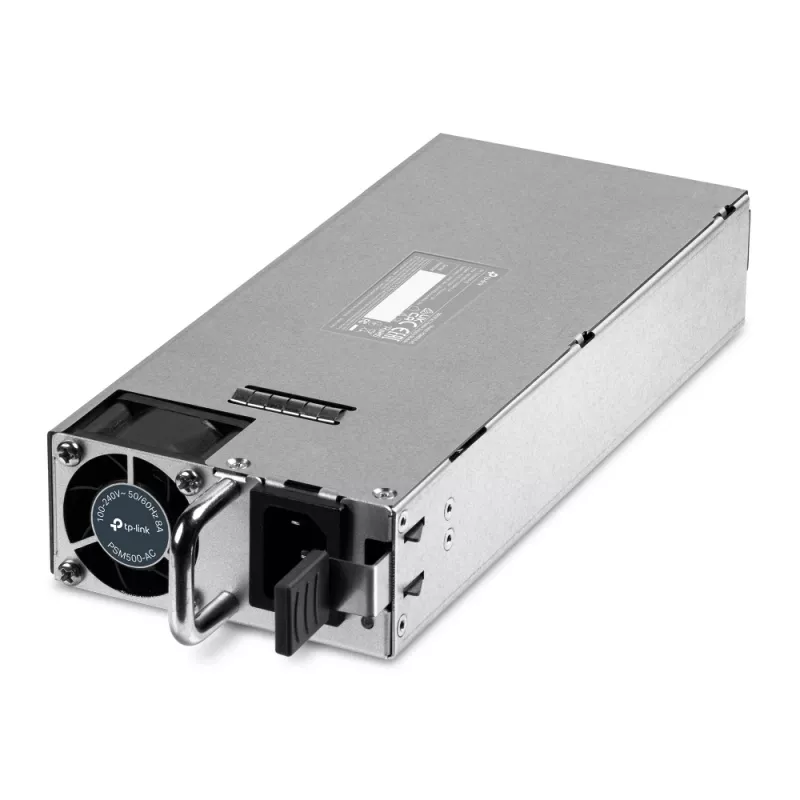

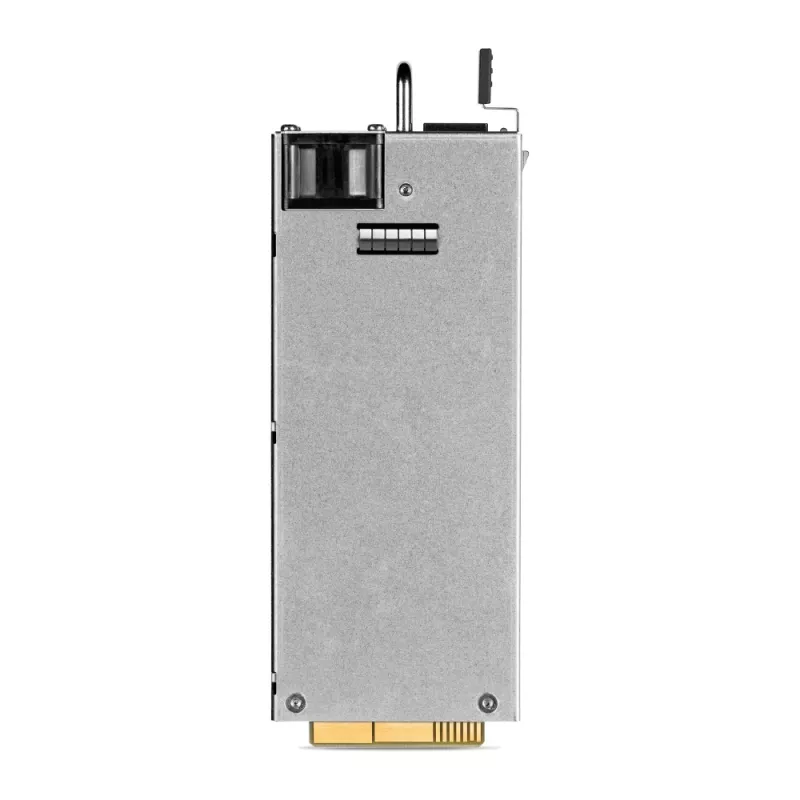

TP-Link PSM500-AC alimentatore per interni 500 W metallizzato

The TP-Link PSM500-AC is an AC-input, DC-output power supply module designed for indoor use with compatible TP-Link Omada and Omada Pro network switches. It converts input voltage to 53.5 V DC and delivers up to 500 W of output power in a compact metallic housing (259.5 mm x 95.8 mm x 40.1 mm). The unit supports a wide input range (100–240 V) and is intended for straightforward installation and replacement in rack or cabinet environments.

Advantages

The PSM500-AC provides a stable 53.5 V DC output with a maximum power of 500 W while occupying a compact footprint. Its metallic enclosure offers durability for indoor installations, and full hot-swappable capability allows replacement or installation without interrupting switch operation. Compatibility with multiple TP-Link Omada and Omada Pro switch models simplifies inventory and maintenance for networks using those platforms.

Suitable for

• Redundant or replacement power modules for TP-Link Omada switches
• Indoor rack- or cabinet-mounted network switch installations
• Environments requiring hot-swappable power for continuous operation

Key specifications

• Model: PSM500-AC (TP-LINK)
• Output voltage: 53.5 V DC
• Maximum output power: 500 W
• Input voltage range: 100–240 V AC
• Housing: metallic, indoor use
• Dimensions: 259.5 mm x 95.8 mm x 40.1 mm
• Compatible models (examples): SG6428XHP, SG6654XHP, S6500-24GP4XF, 6500-48GP6XF, S6500-24MPP4Y, S6500-48MPP6Y
• MPN: PSM500-AC
• EAN: 4895252502732

How to use

Install the PSM500-AC into the designated power slot of a compatible TP-Link Omada or Omada Pro switch following the switch manufacturer’s instructions. Ensure mains input is within 100–240 V AC and use appropriate cabling and breakers. Because the module is hot-swappable, it can be inserted or removed while the switch remains powered by other modules; however, follow standard ESD and safety practices during handling.

Recommendations

Use the PSM500-AC as a primary, redundant, or replacement power source only in the TP-Link switch models listed by the manufacturer. Verify compatibility with your specific switch firmware and configuration, ensure adequate ventilation around the metallic housing, and maintain proper circuit protection on the AC input.
