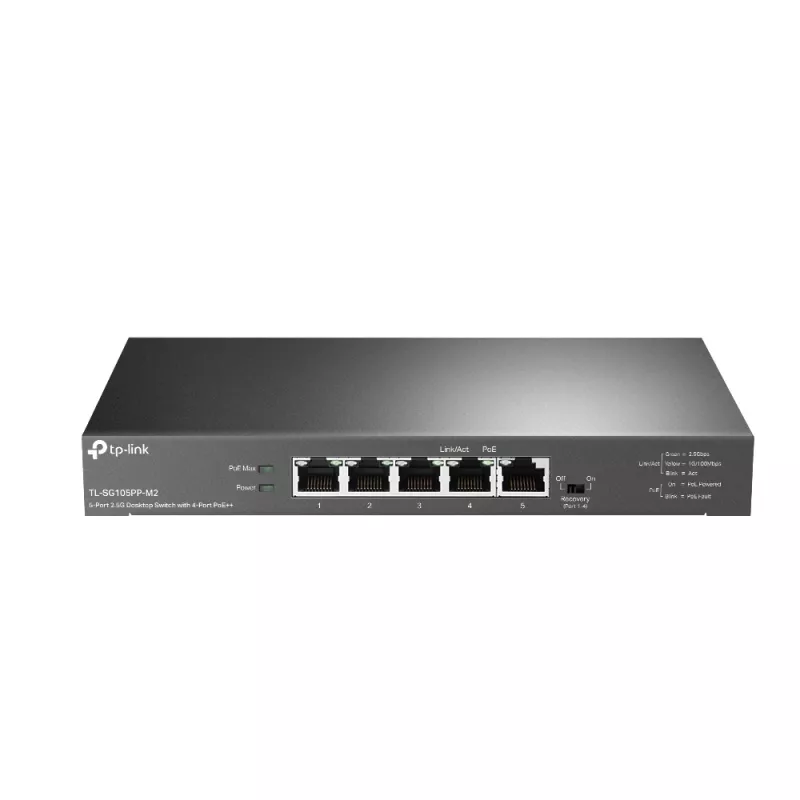

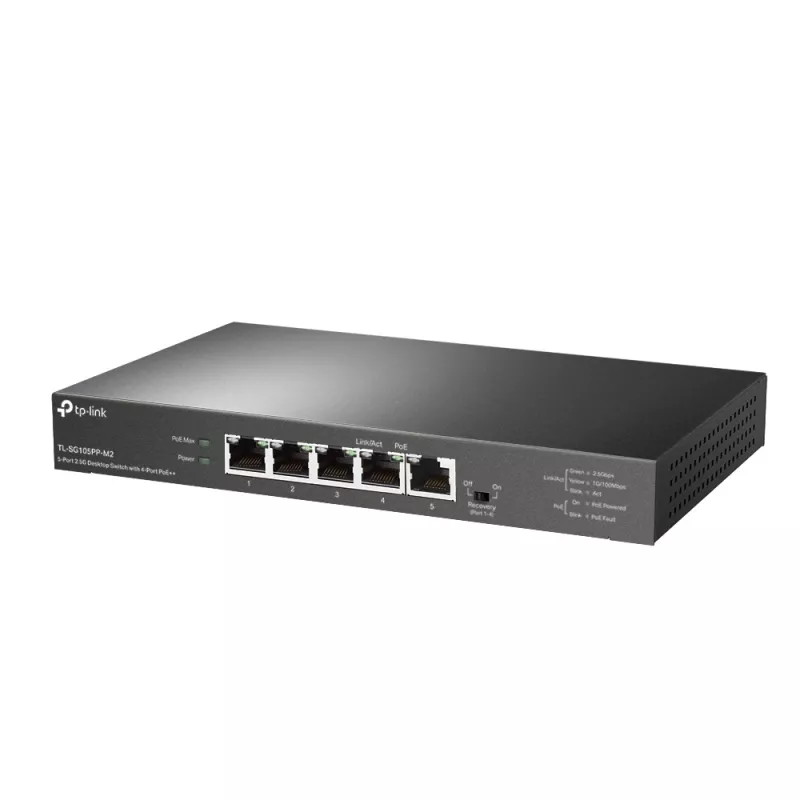

TP-Link switch desktop 5 porte 2.5G con 4 porte PoE++ unmanaged

TL-SG105PP-M2 is an unmanaged 5-port desktop switch with four PoE++ ports and one additional 2.5G-capable port. It provides plug-and-play connectivity and can deliver power over Ethernet to IEEE 802.3af/at/bt compliant devices on ports 1–4. The multi-gig ports support auto-negotiation for 10Mbps/100Mbps/1Gbps/2.5Gbps to accommodate higher-bandwidth devices such as NAS, workstations, 2.5G Wi‑Fi 6 access points and 8K video sources.

Advantages

The switch supplies power and data over a single Ethernet cable to compatible devices, removing the need for separate power outlets at device locations. Its intelligent power management and priority-based overload arrangement protect the system when total PoE demand approaches the available power budget. PoE Auto Recovery can reboot connected powered devices that stop responding, helping to restore connectivity automatically. The device is compact, desktop- or wall-mountable and requires no configuration.

Suitable for

• Connecting and powering access points (Wi‑Fi 6 APs) in locations without nearby power outlets
• Supplying power to PoE IP cameras and IP phones
• Linking 2.5G-capable NAS, servers or workstations for higher throughput
• Small office or home networks that require simple unmanaged switching with PoE

Key specifications

• Ports: 5 RJ45 ports (ports 1–4 support PoE/PoE++), multi-gig auto-negotiation up to 2.5Gbps
• PoE standard: IEEE 802.3af/at/bt compatibility on ports 1–4
• Switching capacity: 25 Gbit/s
• MAC address table: 4000 entries
• Network standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
• Form factor: desktop and wall-mountable, unmanaged
• Colour: Black

How to use

Place the switch on a desk or mount it to the wall, connect your Ethernet cables to the RJ45 ports and plug in powered devices on ports 1–4 as needed. The switch is plug-and-play and requires no software configuration; it will automatically negotiate link speeds up to 2.5Gbps and detect IEEE 802.3af/at/bt devices to supply PoE power. Monitor device operation via connected equipment LEDs and connect higher-bandwidth devices to the 2.5G-capable ports for optimal throughput.

Recommendations

When total PoE power demand approaches the internal power budget, the switch applies port priority (port 1 > port 2 > port 3 > port 4) and will disable the lowest-priority port if necessary. To avoid unexpected power removal, assign critical devices to higher-priority ports and ensure the combined power draw of connected PDs does not exceed the available system power.
