Trapano Einhell TE-CD 18/45

The Einhell cordless drill driver TE-CD 18/45 3X-Li +22 (1x2.0 Ah) is a compact pistol-grip cordless drill with a 2-speed gearbox and a maximum torque of 45 Nm. It is powered by the Power X-Change 2.0 Ah lithium-ion battery included in the set and is compatible with all PXC batteries. The tool features a keyless 13 mm single-sleeve chuck, an integrated LED for working in poorly lit areas, and a practical bit holder. A 22-piece accessory set and a fast charger are supplied in a sturdy E-Box case.

Advantages

The drill offers adjustable speed electronics and 21 torque levels to match material and application, a removable chuck for fast bit changes, and interchangeable attachments — angle and eccentric — for working in tight spaces and near edges. Ergonomic softgrip design and a lightweight 1.57 kg body provide secure handling. The Power X-Change Li-ion battery technology ensures low self-discharge and flexible use across the PXC system.

Suitable for

• Drilling in wood and light materials
• Screwdriving tasks in furniture assembly and general repairs

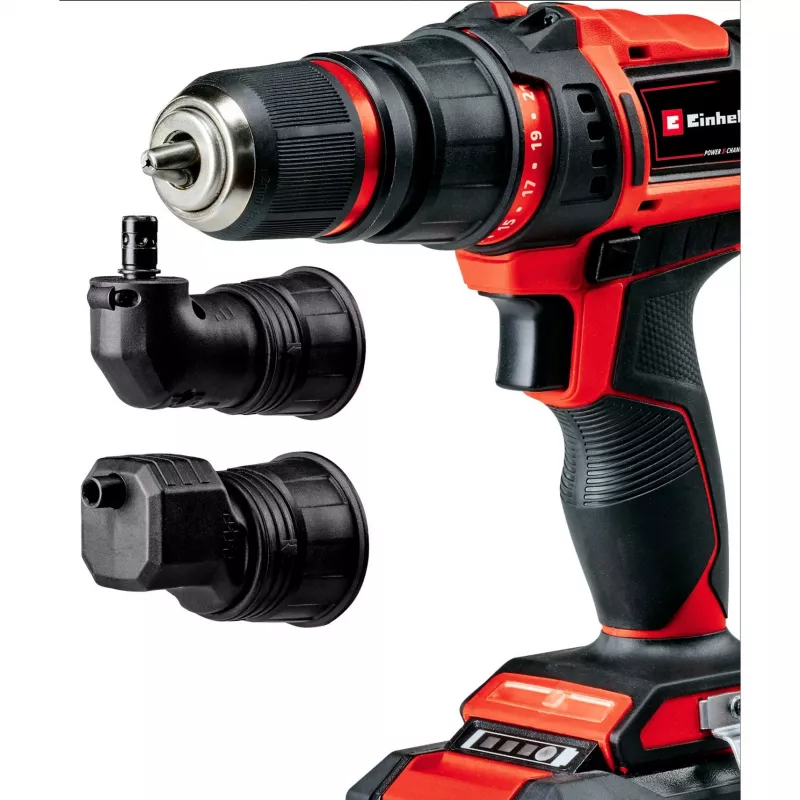

• Working in corners, near edges and in confined spaces (with eccentric and angle attachments)
• DIY and home maintenance projects requiring a compact cordless drill

Key specifications

• Brand: Einhell
• Model: TE-CD 18/45 3X-Li +22 (MPN 4513990, EAN 4006825655810)

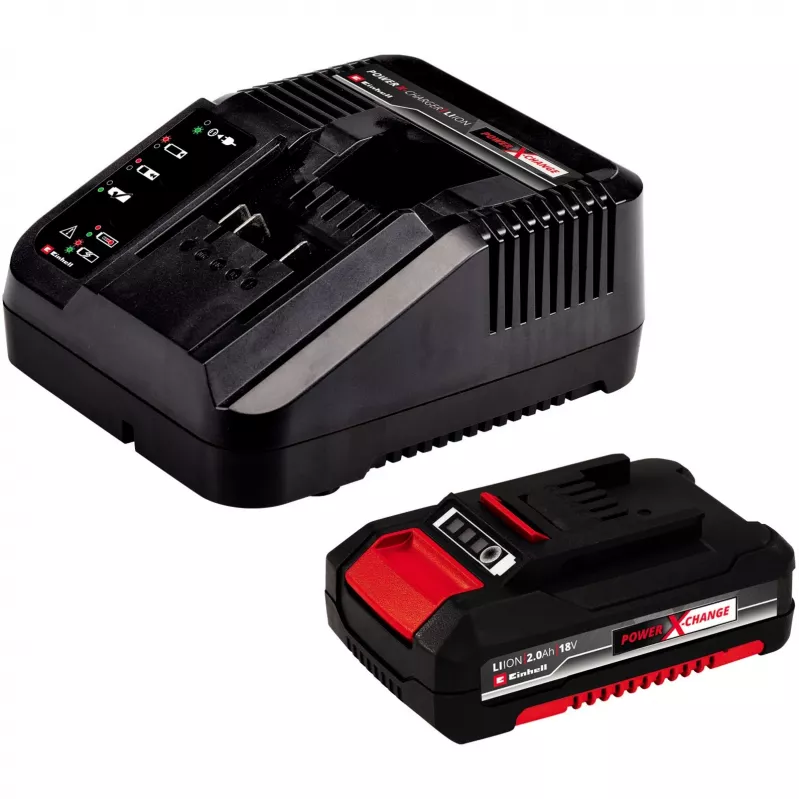

• Power source: 1× 2.0 Ah Power X-Change lithium-ion battery (included)
• Maximum torque: 45 Nm
• Number of gears: 2 (max. speeds: 450 rpm / 1,600 rpm)
• Chuck type and capacity: Keyless single-sleeve chuck, up to 13 mm
• Torque settings: 21 torque levels
• Weight: 1.57 kg
• Colour: Red / Black

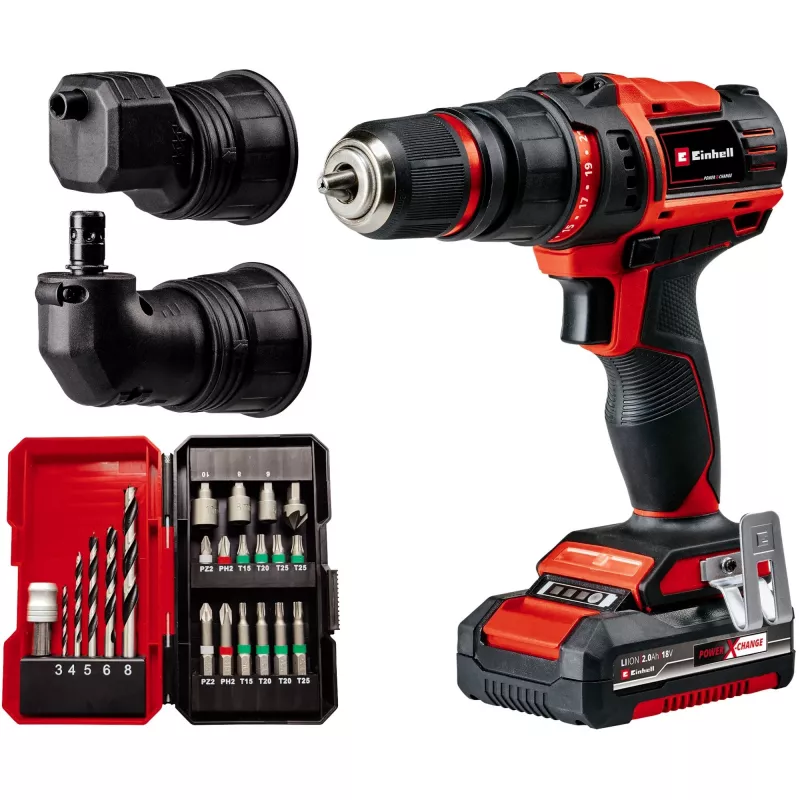

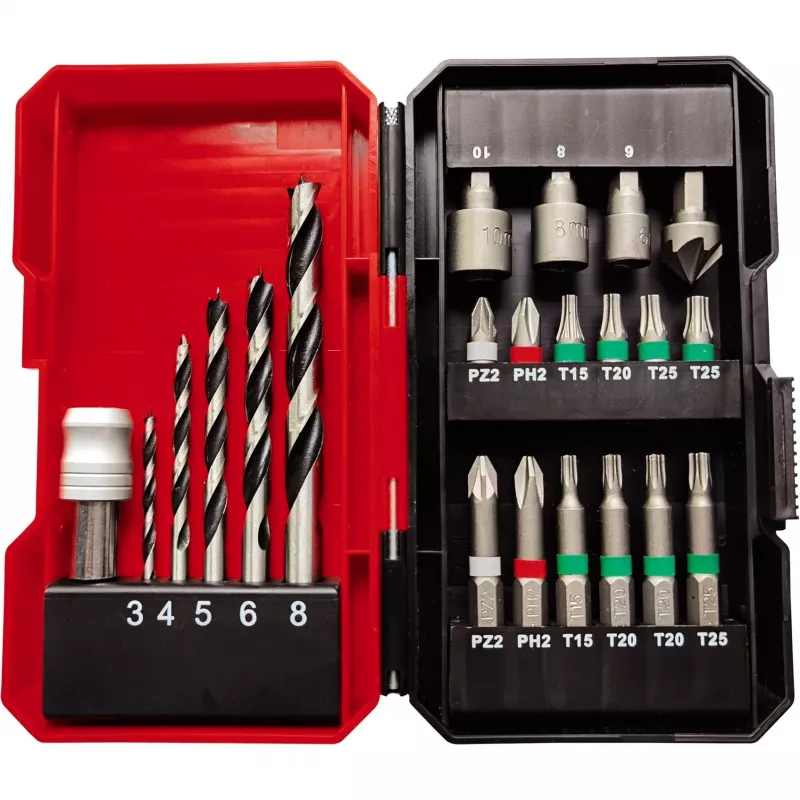

• Delivery scope: Drill, 2.0 Ah battery, fast charger, E-Box case, 22-piece bit set, angle attachment, eccentric attachment, additional handle

How to use

Charge the supplied 2.0 Ah Power X-Change battery fully in the fast charger before first use. Insert the battery into the drill until it clicks into place. Select the appropriate drill bit or screwdriver bit and secure it in the keyless 13 mm chuck. Choose the required gear (low speed for torque, high speed for drilling) and set the torque level according to the material. Use the integrated LED to illuminate the work area. Attach the angle or eccentric adapter as needed for tight spaces. After use, remove the battery and store the tool and accessories in the E-Box case.

Recommendations

For long life of the battery and optimal performance, store the PXC battery charged at around 40–60% if the drill will not be used for extended periods. Use the lower gear and appropriate torque setting for screwdriving to avoid over-tightening; use the higher speed for fast drilling in soft materials.
