Trasmettitore e ricevitore di rete PLANET POE-E202

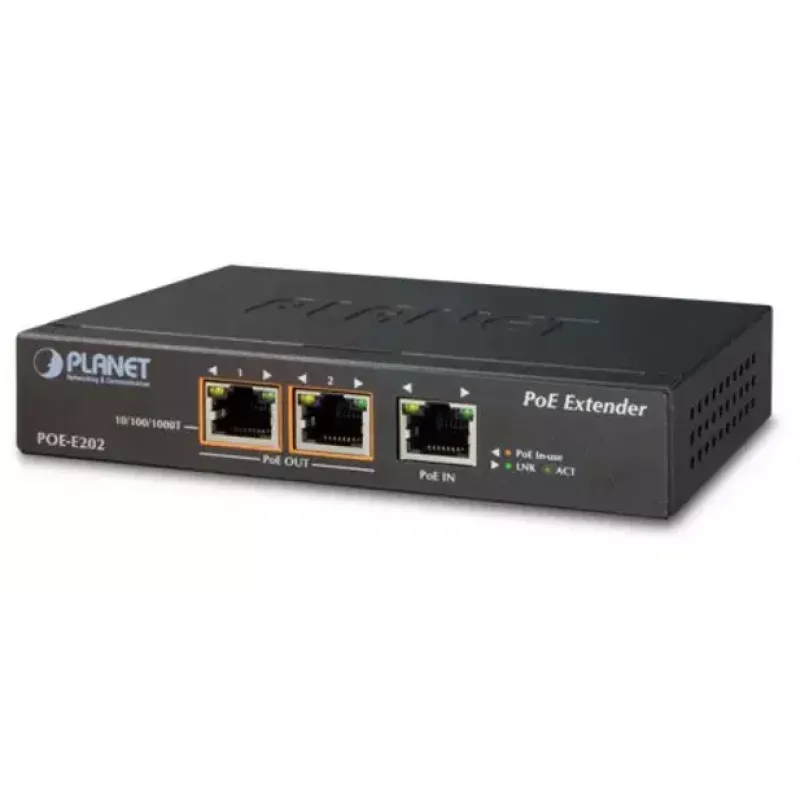

The PLANET POE-E202 is a 1-port PoE+ to 2-port 802.3af/at Gigabit PoE extender that expands the reach of Power over Ethernet and Gigabit data transmission. It accepts up to 30 W from a PoE+ input and provides up to 25 W total across two 802.3af/at output ports, enabling network devices to be powered and connected up to 200 m from the power source over standard Cat5/5e/6 cable. The compact, metal-housed POE-E202 eliminates the need for extra cabling or an external power adapter when adding PoE endpoints.

Advantages

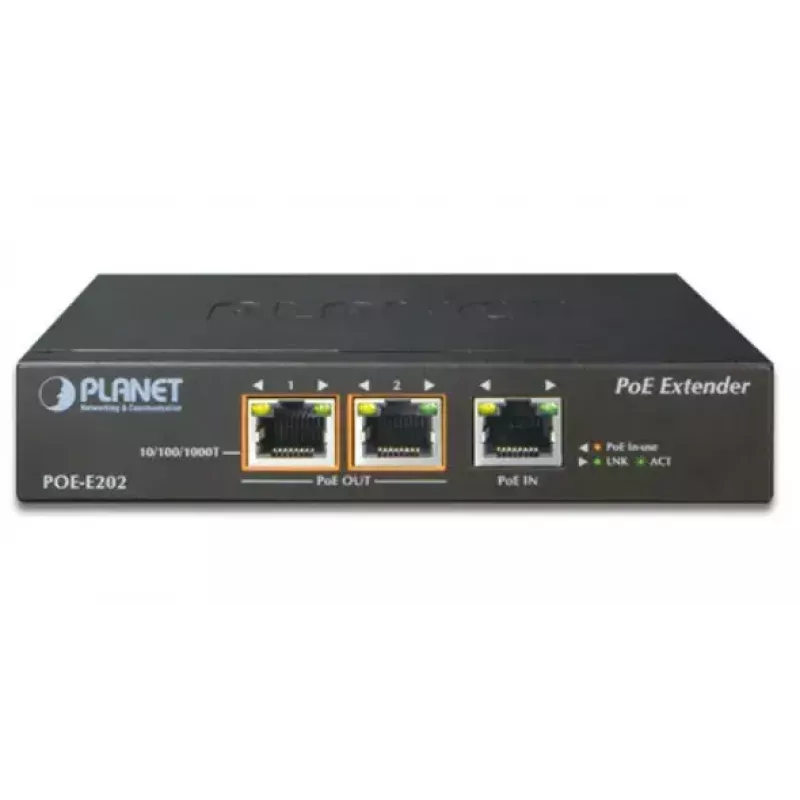

The POE-E202 doubles the standard 100 m PoE distance to 200 m for each output while maintaining Gigabit Ethernet throughput. It delivers both data and compliant 802.3af/at power through existing Cat5/5e/6 cabling, supports plug-and-play installation without configuration, and provides a compact solution with three RJ45 ports (one PoE IN, two PoE OUT) suited for desk or wall mounting.

Suitable for

• Extending PoE cameras and wireless access points beyond 100 m
• Supplying power and network to remote VoIP phones and networked sensors
• Deployments where adding AC power outlets is impractical

Key specifications

• Model: PLANET POE-E202 (MPN: POE-E202, EAN: 4711605282055)
• Ports: 1 × PoE+ input, 2 × 802.3af/at Gigabit PoE outputs (3 × RJ45 total)
• Data rate: Gigabit Ethernet (up to 1000 Mbit/s)
• Input PoE power: up to 30 W
• Output PoE budget: up to 25 W total for two outputs
• Cable: Cat5/5e/6, extends PoE up to 200 m to powered devices
• Power range: PoE voltage 52–56 V

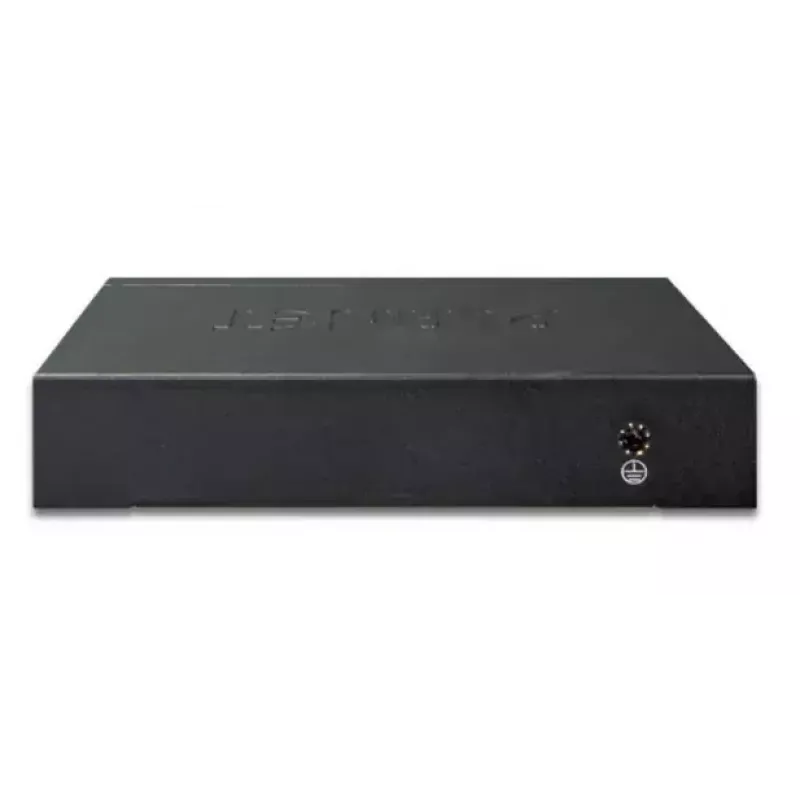

• Housing: compact metal, weight 0.234 kg, colour: black

How to use

Connect the PoE+ source equipment (PSE) to the POE-E202 "PoE IN" RJ45 port using Cat5/5e/6 cable. Then connect up to two powered devices (PD), such as IP cameras or wireless access points, to the "PoE OUT" ports with Cat5/5e/6 cables. The unit will pass Gigabit data and inject compliant 802.3af/at power to the outputs, extending the usable link distance to up to 200 m for each PD without additional configuration.

Recommendations

Use quality Cat5e or Cat6 cabling and verify the PSE can supply sufficient PoE+ power (up to 30 W) to ensure the POE-E202 can provide the required power budget to connected devices. Mount the unit on a desk or wall in a ventilated location and ensure cable lengths and device power draws do not exceed the specified limits.
