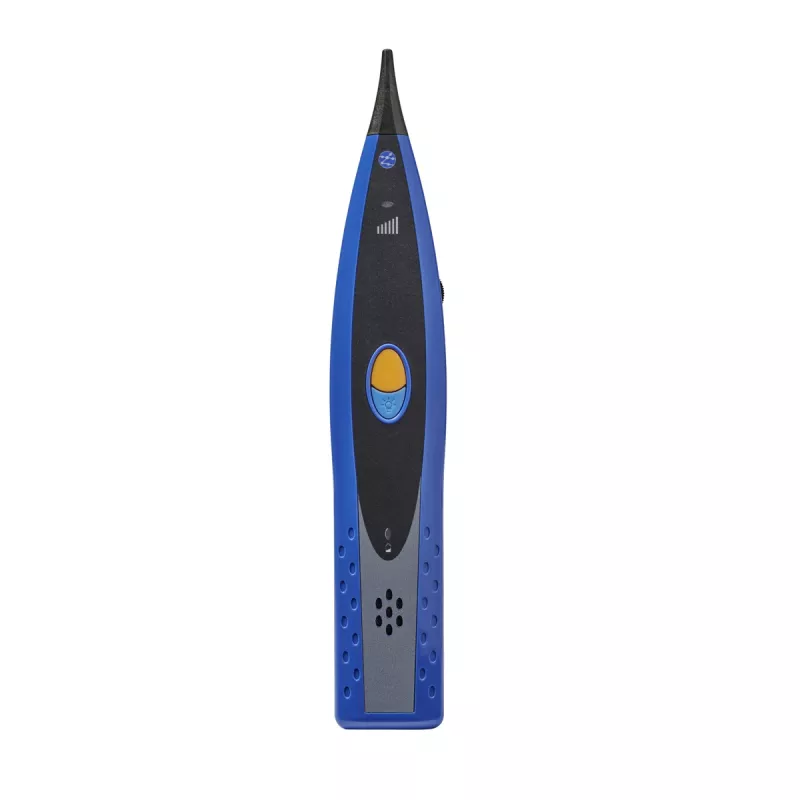

TREND Networks ricevitore induttivo Probe-II

The TREND Networks Probe-II Inductive Receiver is a professional-grade tone probe designed for non-contact signal detection in network, telecom, and electrical installations. It enables fast and accurate cable tracing, wire identification, and fault location without damaging insulation.

Advantages

Non-contact inductive detection preserves cable integrity. Built-in speaker and LED indicator provide clear audible and visual feedback. Ergonomic pen-style design ensures comfortable one-handed operation. Automatic shut-off extends battery life, and the 3.5mm headphone jack allows use in noisy environments.

Suitable for

• Network technicians tracing cables in data centers and server rooms
• Telecom installers identifying wires in patch panels and termination blocks
• Electrical contractors locating faults in low-voltage installations
• IT professionals verifying cable runs in structured cabling systems

Key specifications

• Detection Method: Non-contact inductive
• Audio Indication: Built-in speaker
• Visual Indication: LED indicator
• Power Source: 1 x 9V PP3 battery (alkaline recommended)
• Battery Life: Approximately 50 hours (typical)
• Automatic Shut-off: Yes
• Headphone Jack: 3.5mm
• Tip Type: Replaceable non-conductive plastic tip
• Frequency Range: 500 Hz to 1 kHz
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Humidity: 10% to 90% non-condensing
• Safety Compliance: CE, RoHS
• Included Accessories: 9V battery, user manual
• Manufacturer Part Number: 1500-0002

Recommendations

For optimal performance, use with TREND Networks tone generators such as the VDV II, LanTEK IV, or NaviTEK NT. Always test on a known live cable to verify operation before use.
