TRENDnet TEG-10GBS20 modulo ricetrasmettitore 10G SFP+, 10GBASE-SR, 850nm, LC duplex, MMF, fino a 400m

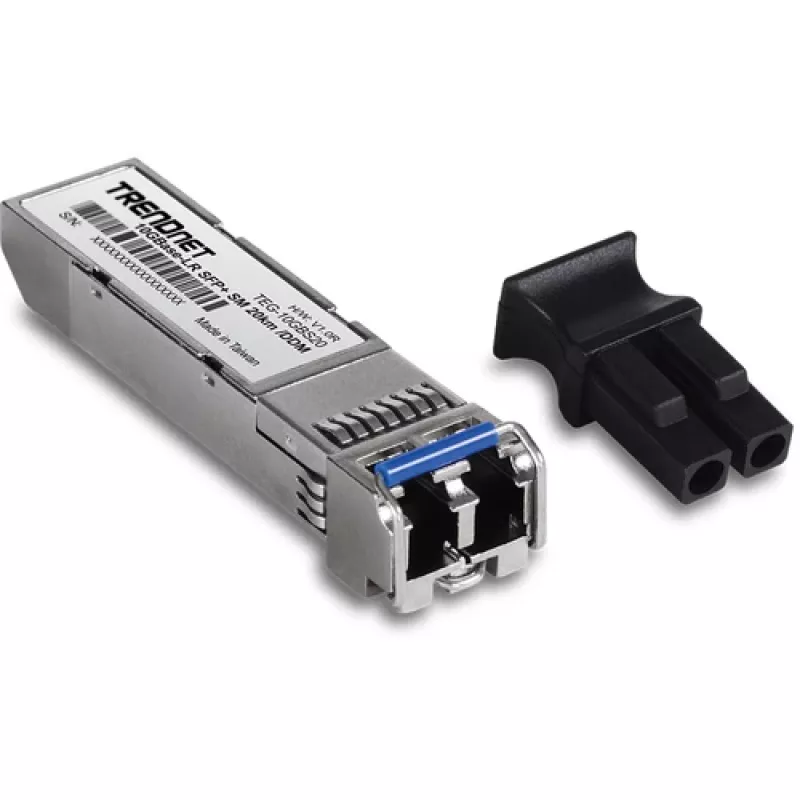

High-speed data centers and enterprise networks often face bandwidth bottlenecks when connecting switches, servers, and storage over short distances. The TRENDnet TEG-10GBS20 10G SFP+ transceiver module eliminates these bottlenecks by delivering reliable 10-Gigabit connectivity over multimode fiber. This hot-swappable module is fully compliant with the 10GBASE-SR standard and MSA specifications, ensuring seamless interoperability with TRENDnet 10G SFP+ slots and other compliant equipment.

Who is it for

Network administrators, data center managers, and IT professionals who need to upgrade existing multimode fiber infrastructure to 10G speeds without replacing cabling. It is ideal for short-reach applications such as server-to-switch links, switch-to-switch aggregation, and high-performance computing clusters.

Main features

• 10Gbps data rate over multimode fiber (MMF)
• 850nm wavelength with LC duplex connector
• Supports distances up to 300m on OM3 and 400m on OM4 fiber
• Digital Diagnostic Monitoring (DDM/DOM) for real-time monitoring of temperature, voltage, and optical power
• Hot-swappable SFP+ form factor for easy installation and replacement
• Low power consumption (<1W) and Class 1 laser safety
• Metal housing for durability and EMI shielding
• Compliant with IEEE 802.3ae 10GBASE-SR and MSA standards

Specifications

• Transceiver Type: SFP+
• Data Rate: 10 Gbps
• Standard: 10GBASE-SR
• Fiber Type: Multi-Mode Fiber (MMF)
• Wavelength: 850 nm
• Connector: LC Duplex
• Max Distance: 300 m (OM3), 400 m (OM4)
• DDM/DOM Support: Yes
• Hot-Swappable: Yes
• Power Consumption: < 1 W
• Operating Temperature: 0 – 70 °C (32 – 158 °F)
• Storage Temperature: -40 – 85 °C (-40 – 185 °F)
• Operating Humidity: 5% to 95% non-condensing
• Compliance: MSA, IEEE 802.3ae, Class 1 Laser
• Power Supply Voltage: 3.3 V
• Housing Material: Metal

Tips

For optimal performance, use OM3 or OM4 multimode fiber with LC connectors. Ensure both ends of the link support 10GBASE-SR and that the fiber length does not exceed the specified distance. The DDM feature allows proactive monitoring of link health, helping to prevent downtime.
