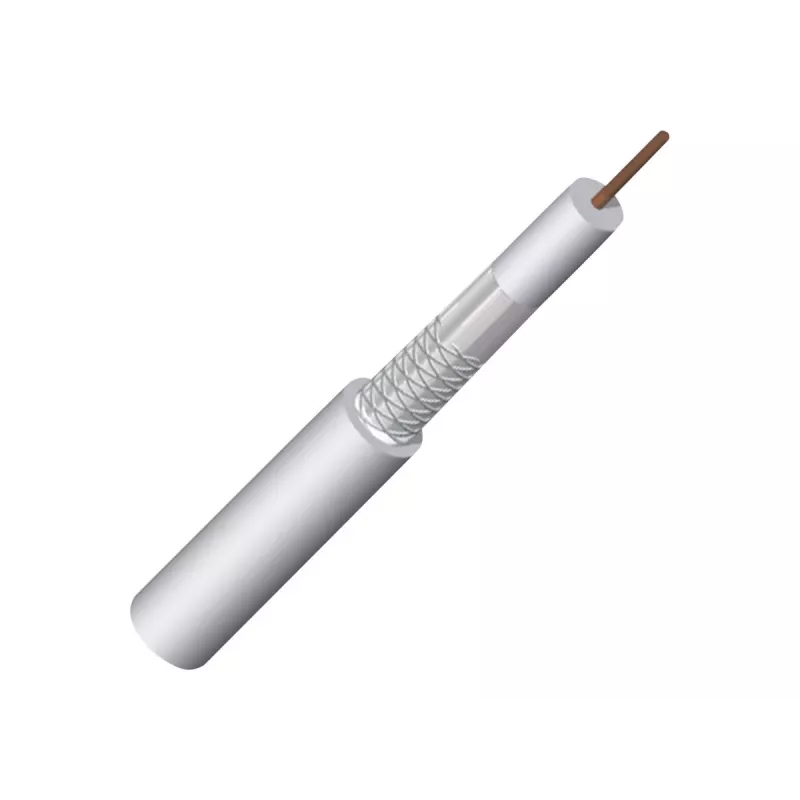

TRIAX KOKA 99 HD Plus Cavo coassiale PVC 100 m 151701

The TRIAX KOKA 99 HD Plus PVC is a double-shielded coaxial cable built for reliable signal transmission over long distances. Its solid copper inner conductor and 90% tinned copper braid coverage deliver strong shielding performance, making it suitable for satellite and cable TV installations where signal integrity matters.

Highlights

• Double shielding with aluminium/PET foil and tinned copper braid
• Solid copper inner conductor for excellent conductivity
• Low attenuation across a wide frequency range
• PVC jacket for durability and easy installation

In daily use

With a 100-metre length, this cable is ideal for large installations. Its 75 Ohm impedance matches standard TV and satellite equipment, and the 6.8 mm outer diameter fits common connectors. The cable maintains signal quality even at high frequencies, making it a dependable choice for HD and UHD signals.

Full specifications

• Cable type: Coaxial
• Impedance: 75 Ohm
• Length: 100 m
• Jacket material: PVC
• Outer diameter: 6.8 mm
• Inner conductor: Solid copper
• Dielectric: Foamed PE
• Shielding: Double (foil + braid)
• Braid coverage: 90%
• Screening class: A+
• Attenuation @ 100 MHz: 6.5 dB/100m
• Attenuation @ 500 MHz: 14.0 dB/100m
• Attenuation @ 1000 MHz: 20.0 dB/100m
• Attenuation @ 2150 MHz: 29.5 dB/100m
• Attenuation @ 3000 MHz: 36.5 dB/100m
• Velocity of propagation: 85%
• Minimum bending radius: 35 mm
• Operating temperature: -20°C to +70°C

Final note

TRIAX KOKA 99 HD Plus PVC is a professional-grade coaxial cable that delivers consistent performance for demanding installations.
