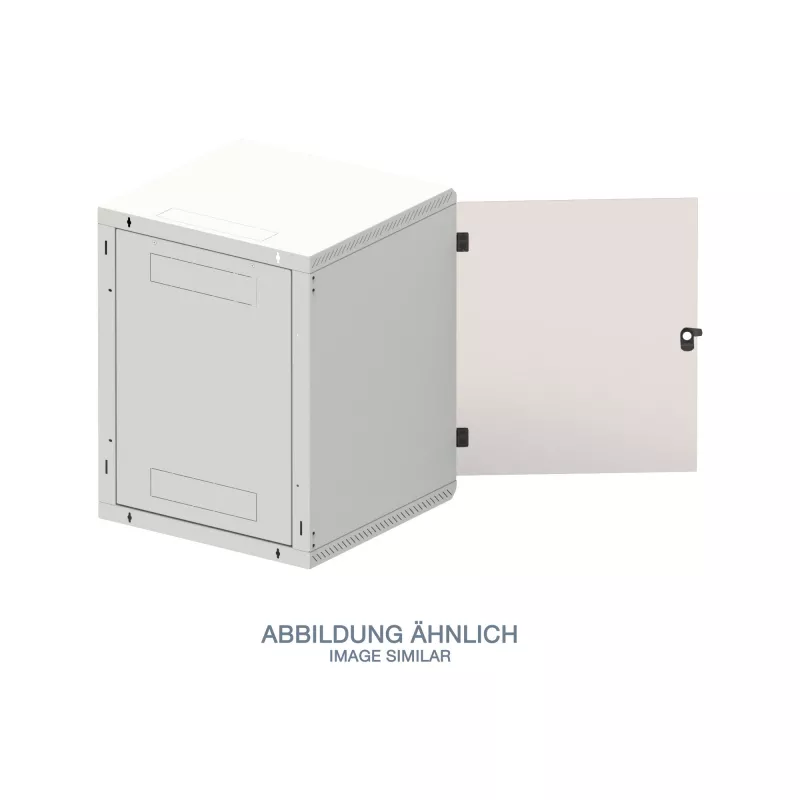

Triton RBA-18-AS6-CAX-A1 Armadio a parete 19 pollici 18U, 600x595mm, monoblocco, grigio

In a busy server room or a compact network closet, the need for secure, organized, and accessible equipment mounting is paramount. The Triton RBA-18-AS6-CAX-A1 19" wall-mount cabinet answers that call, offering 18U of rack space in a robust one-piece welded frame. Measuring 600 mm wide and 595 mm deep, it fits neatly against a wall while accommodating standard 19-inch equipment. The grey powder-coated finish (RAL 7035) blends into professional environments, and the tempered glass front door with lock keeps your hardware safe from unauthorized access. Removable and lockable side panels allow for easy installation and maintenance, while top and bottom cable entry points with brush strips ensure clean cable management. Built from steel sheet with an IP20 rating and a 60 kg static load capacity, this cabinet is ready to support your network infrastructure reliably.

Key specifications

• Rack units: 18U
• Rack width: 19 inches
• External dimensions: 600 mm (W) x 595 mm (D) x 800 mm (H)
• Construction: one-piece welded frame
• Front door: tempered glass with lock
• Side panels: removable and lockable
• Material: steel sheet, powder coated
• Colour: grey (RAL 7035)
• IP protection: IP20
• Max static load: 60 kg
• Cable entry: top and bottom with brush strips
• Mounting: wall-mountable
• Standards: IEC 60297-2, EN 60950-1

Why choose it

This cabinet combines security, durability, and ease of use. The one-piece welded frame ensures structural integrity, while the lockable glass door and side panels protect your equipment. The generous 18U capacity and standard 19-inch width make it compatible with a wide range of servers, switches, and patch panels. Wall mounting saves floor space, and the cable entry points with brush strips keep your installation tidy and professional.

Ideal use cases

• Small to medium business network rooms
• Branch offices and retail back offices
• Educational institutions and labs
• Industrial control cabinets
• Security and surveillance system enclosures

Good to know

The cabinet is delivered fully assembled, ready for wall mounting (mounting hardware not included). The IP20 rating means it is intended for indoor use in a controlled environment. The grey RAL 7035 finish is a standard colour that matches most office and technical room aesthetics. With a 60 kg load capacity, it can safely hold typical network equipment, but ensure the wall structure is adequate for the total weight.
