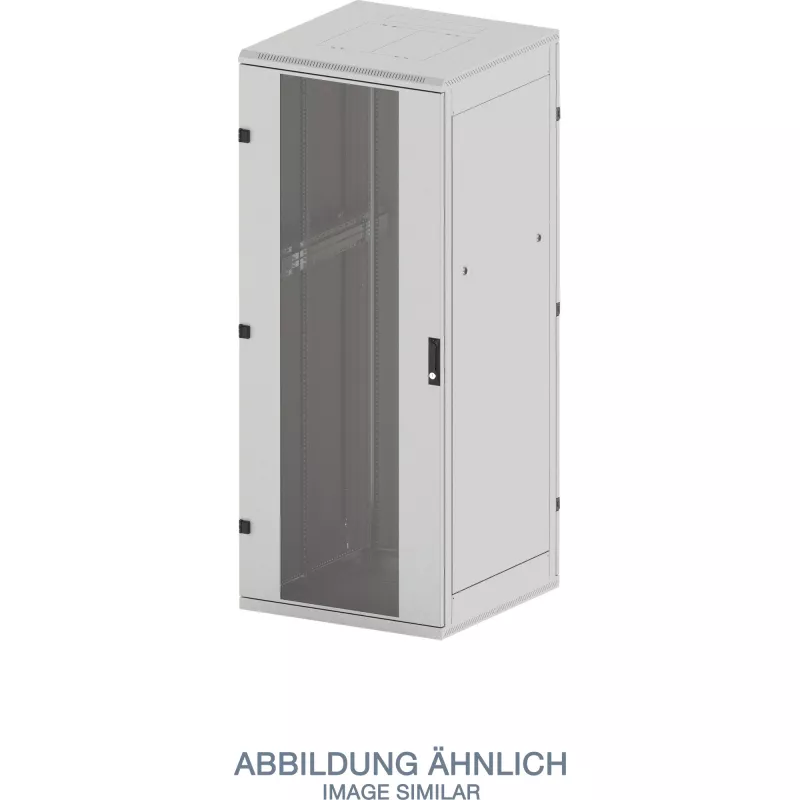

TRITON RMA-15-A69-CAX-N1 armadio di rete 19 pollici 15U 600x900 mm grigio

The TRITON RMA-15-A69-CAX-N1 is a high-quality 19-inch network cabinet designed for professional IT environments. With 15U of rack space and dimensions of 600x900 mm (width x depth), this cabinet offers a robust and secure housing for servers, switches, patch panels, and other network equipment. Its grey finish (RAL 7035) ensures a neutral appearance suitable for any data center or server room.

Advantages

This cabinet provides excellent value with its sturdy welded steel frame, lockable front glass door, and solid steel rear door. The removable side panels allow easy access for cable management and maintenance. With a static load capacity of 400 kg, it can accommodate heavy equipment. The adjustable 19-inch mounting profiles offer flexibility for various rack depths.

Suitable for

• Data centers and server rooms
• Network and telecommunications closets
• IT infrastructure for small to medium businesses
• Housing servers, switches, patch panels, and UPS systems

Key specifications

• Rack Standard: 19-inch
• Rack Units: 15U
• External Dimensions (WxDxH): 600 x 900 x 787 mm
• Internal Usable Depth: 830 mm (adjustable)
• Load Capacity (Static): 400 kg
• Material: Steel
• Colour: Grey (RAL 7035)
• Front Door: Tempered glass, lockable
• Rear Door: Solid steel, lockable
• Side Panels: Removable, lockable
• Cable Entry: Top and bottom with brush strips
• Mounting Profiles: Adjustable 19" front and rear
• Ventilation: Passive openings, fan ready
• Protection Rating: IP20
• Included Accessories: 4x leveling feet, 2x keys for doors, 2x keys for side panels, 20x cage nuts M6
• Construction: Welded frame, fully assembled
• Door Opening Angle: 180 degrees (front and rear)
• Compliance: RoHS, CE

Recommendations

For optimal cable management, consider using horizontal and vertical cable managers. Ensure proper ventilation by installing optional fan units if required. This cabinet is ideal for environments where security and accessibility are priorities.
