TRYTYT DUID-2x16,0-14NB puntalino doppio isolato 2x16 mm² blu (50 pz.)

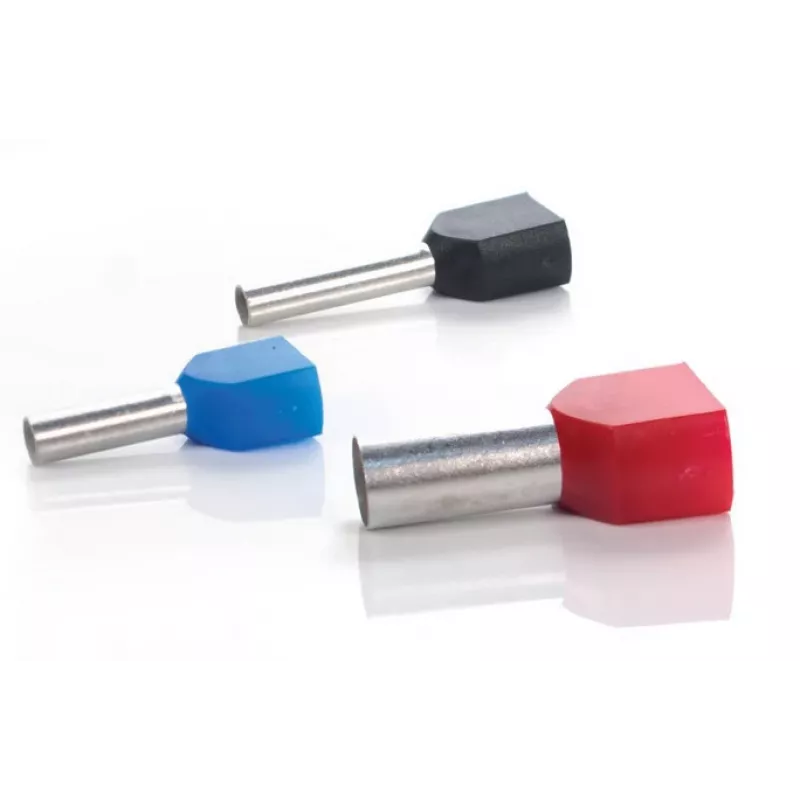

The TRYTYT DUID-2x16,0-14NB is a high-quality insulated twin wire ferrule designed for reliable termination of flexible conductors. With a cross-section of 2x16mm² and a metal tube length of 14mm, this ferrule ensures secure and durable connections in electrical installations. The blue polypropylene insulation provides clear color coding and protection against short circuits. Pack of 50 pieces.

Advantages

Made from tin-plated electrolytic copper for excellent conductivity and corrosion resistance. Polypropylene insulation offers high dielectric strength and a wide operating temperature range from -40°C to +105°C. Compliant with DIN 46228 Part 4 and RoHS, ensuring safety and environmental standards. UL94 V-2 flammability rating adds an extra layer of safety.

Suitable for

• Termination of flexible conductors in control cabinets, distribution boards, and industrial machinery
• Electrical installations requiring reliable and vibration-resistant connections
• Use with screw-type or spring-cage terminal blocks

Key specifications

• Product Type: Insulated Twin Wire Ferrule
• Wire Cross-Sectional Area: 2 x 16 mm²
• Insulation Color: Blue
• Ferrule Material: Electrolytic Copper, Tin-plated
• Insulation Material: Polypropylene (PP)
• Metal Tube Length (L2): 14 mm
• Total Length (L1): Approx. 23 mm
• Inner Diameter (D2): Approx. 5.7 mm
• Outer Diameter (D3): Approx. 6.5 mm
• Insulation Diameter (D1): Approx. 9.5 mm
• Operating Temperature Range: -40°C to +105°C
• Voltage Rating: Up to 600 V
• Standard Compliance: DIN 46228 Part 4
• Pack Quantity: 50 pieces
• Flammability Rating: UL94 V-2
• RoHS Compliance: Yes

Recommendations

For optimal performance, use with appropriate crimping tools designed for twin wire ferrules. Ensure correct wire stripping length and crimp force to achieve a reliable connection.
