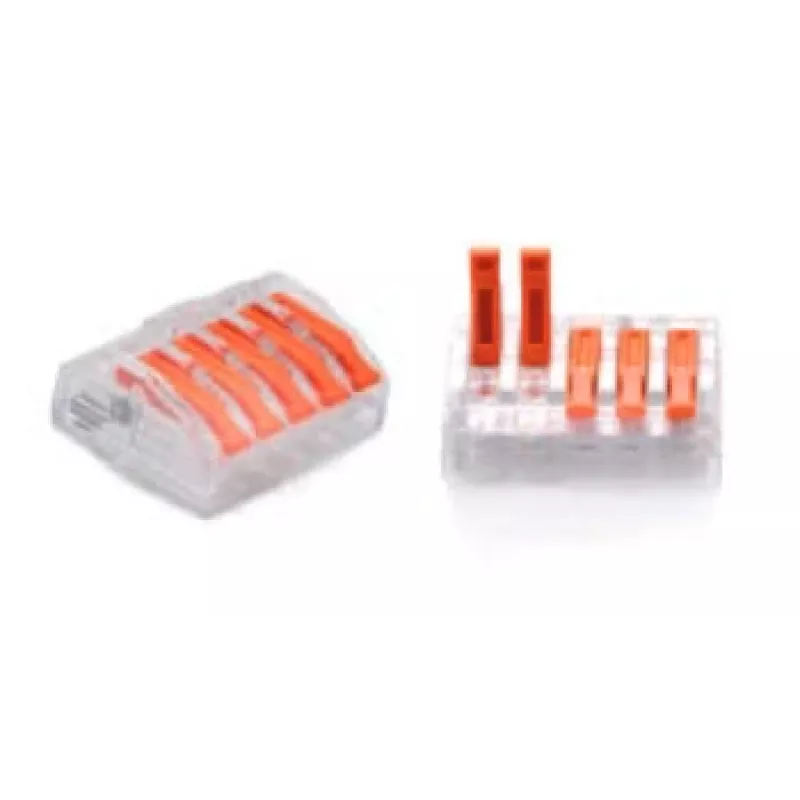

TRYTYT PC-235 connettore push-in a 5 vie 0,2-4,0 mm² confezione da 30 trasparente arancione

The TRYTYT PC-235 is a high-quality lever-operated push-in wire connector designed for fast, tool-free wiring. This pack contains 30 pieces, each with 5 connection points, suitable for solid and stranded wires from 0.2 to 4.0 mm² (AWG 24-12). The transparent housing with orange levers allows easy visual inspection of connections.

Advantages

Tool-free operation saves time and effort. Reliable tin-plated copper contacts ensure low resistance and secure connections. The compact design fits in tight spaces. Rated for 450V and 32A, suitable for various electrical installations.

Suitable for

• Electrical junction boxes
• Lighting installations
• Control cabinets
• DIY and professional wiring

Key specifications

• Connector Type: Lever-operated Push-in Wire Connector
• Number of Poles: 5
• Wire Cross-Section: 0.2 - 4.0 mm² (AWG 24-12)
• Rated Voltage: 450V
• Rated Current: 32A
• Housing Material: Polycarbonate (PC)
• Lever Material: Polyamide (PA)
• Contact Material: Tin-plated Copper
• Operating Temperature: -25°C to +105°C
• Flammability Rating: UL94 V-2
• Stripping Length: 9-10 mm
• Dimensions (each): Approx. 26 x 29 x 14.5 mm
• Quantity per Pack: 30 pieces
• Certifications: CE, RoHS

Recommendations

For best results, use with solid or stranded wires and strip to the recommended length. Ensure connectors are fully pushed in for a secure connection.
