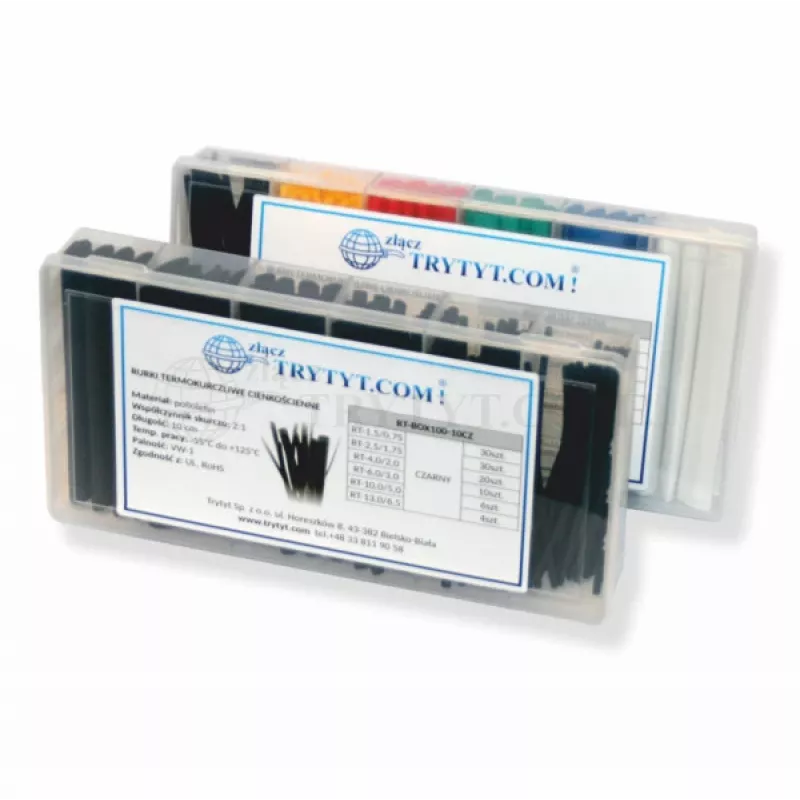

TRYTYT RT-BOX100-10MIX set di guaine termorestringenti 100 pz. colori misti rapporto 2:1

The TRYTYT RT-BOX100-10MIX is a comprehensive heat shrink tube set containing 100 pieces in assorted colors, designed for electrical insulation, wire bundling, and cable protection. Made from flexible polyolefin with a 2:1 shrink ratio, these tubes provide a secure and durable finish for a wide range of applications.

Advantages

This set offers a versatile selection of diameters and colors, making it ideal for both professional and DIY projects. The 2:1 shrink ratio ensures a tight fit, while the polyolefin material provides excellent electrical insulation and resistance to abrasion. The included color assortment (black, red, yellow, blue, green, white) allows for easy color-coding of wires.

Suitable for

• Electrical insulation of wires and terminals
• Bundling and organizing cables
• Protecting connections from moisture and dust
• Color-coding wires for identification
• Repairing damaged cable insulation

Key specifications

• Total quantity: 100 pieces
• Shrink ratio: 2:1
• Material: Polyolefin
• Colors: Assorted (black, red, yellow, blue, green, white)
• Length per piece: 100 mm
• Inner diameters (before shrinking): 1.5 mm (20 pcs), 2.5 mm (20 pcs), 3.5 mm (20 pcs), 5.0 mm (10 pcs), 6.0 mm (10 pcs), 10.0 mm (10 pcs), 13.0 mm (10 pcs)
• Operating temperature: -55°C to +125°C
• Minimum shrink temperature: 70°C
• Full shrink temperature: 110°C
• Dielectric strength: 15 kV/mm
• Flammability rating: VW-1
• Voltage rating: 600 V
• Compliance: RoHS, UL approved

Recommendations

For best results, use a heat gun or hot air blower to shrink the tubes evenly. Ensure the tube diameter is slightly larger than the object being covered before shrinking. Store in a cool, dry place away from direct sunlight.
