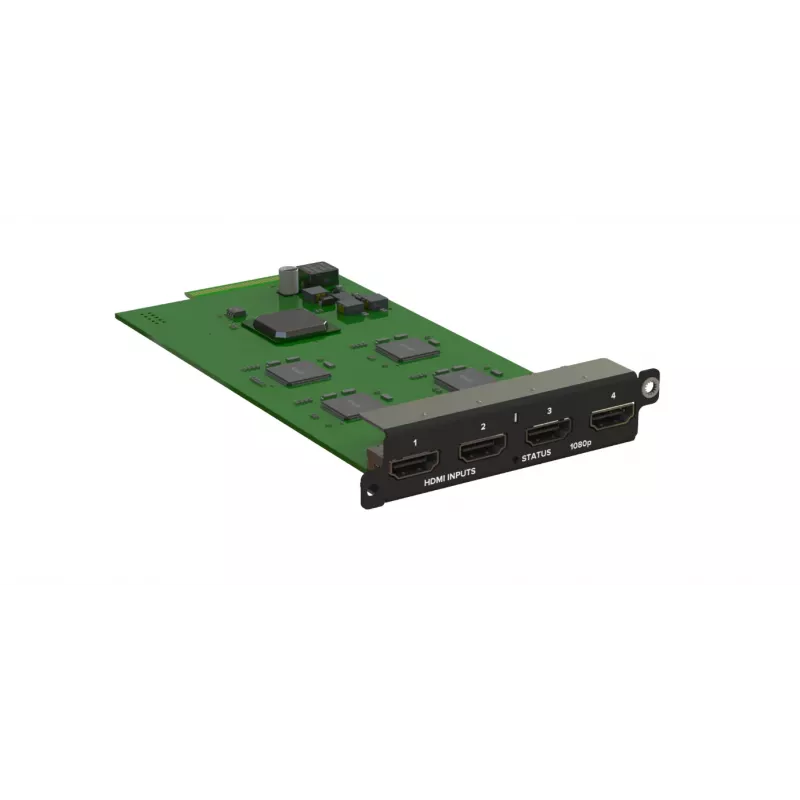

tvONE CM-HDMI-4IN modulo di ingresso CORIOmaster 4 x HDMI 1080P

The tvONE CM-HDMI-4IN is a high-performance input module designed for the CORIOmaster series video processing systems. It provides four HDMI inputs supporting resolutions up to 1920x1080p at 60Hz, making it ideal for professional AV installations requiring reliable video capture and processing.

Advantages

This module offers seamless integration with CORIOmaster chassis, hot-swappable design for minimal downtime, and support for HDCP 1.4 and embedded audio. Its compact form factor and robust construction ensure long-term reliability in demanding environments.

Suitable for

• Professional AV systems requiring multiple HDMI inputs
• Live event production and broadcast environments
• Digital signage and video wall applications
• Control rooms and command centers

Key specifications

• Module Type: Input Module
• Number of Inputs: 4
• Input Connector Type: HDMI Type A
• Maximum Input Resolution: 1920x1080p
• Maximum Input Frame Rate: 60Hz
• HDCP Support: HDCP 1.4
• Audio Support: Embedded HDMI Audio
• Compatibility: tvONE CORIOmaster Series (CM-3000, CM-3100, CM-3200, CM-3300, CM-3400, CM-3500, CM-3600)
• Video Standard: HDMI 1.4a
• Data Rate: Up to 6.75 Gbps (2.25 Gbps per channel)
• Hot-Swappable: Yes
• EDID Management: Yes (via CORIOmaster chassis)
• Color Depth: 8-bit
• Input Signal Type: Digital Video & Audio
• Input Impedance: 100 Ohms
• Pixel Clock: Up to 165 MHz

Recommendations

For optimal performance, pair this module with a compatible CORIOmaster chassis and use high-quality HDMI cables. Ensure proper ventilation and avoid exceeding the maximum input resolution for reliable operation.
