Ugello per stampante 3D Flashforge Creator 4 0,8 mm

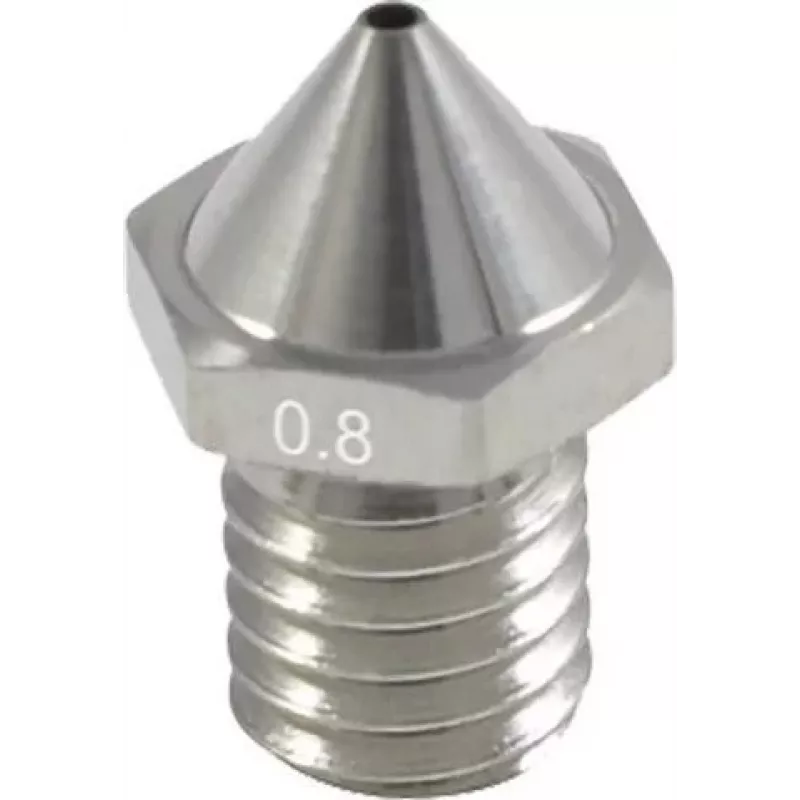

Nozzle for Flashforge Creator 4 3D printer with a 0.8 mm diameter, intended as a direct replacement for compatible extruders on the Creator 4. The larger orifice increases material throughput compared with standard smaller nozzles, enabling faster deposition rates and wider extrusion lines. This nozzle is designed for users who need higher flow for coarse layering, rapid prototyping with thick layers, or stronger infill where increased extrusion per pass reduces print time and improves structural fill.

Advantages

The 0.8 mm nozzle provides higher volumetric flow, which shortens print time on large parts and reduces the number of toolpaths required for thick layers. Wider bead width improves interlayer contact for structural infill and coarse features while maintaining compatibility with standard threaded extruder fittings on the Flashforge Creator 4. The nozzle’s geometry supports reliable filament feeding at higher extrusion rates and is simple to install and remove for maintenance or replacement.

Suitable for

• Large-format prints requiring faster material deposition
• Prototyping with coarse layer heights and visible layer lines
• Structural parts and strong infill where throughput matters
• Tools, jigs, or concept models that prioritize speed over fine detail

Key specifications

• Nozzle diameter: 0.8 mm
• Threaded standard for direct fit on compatible Creator 4 extruders
• Material compatibility: typical thermoplastic filaments suitable for Creator 4 (PLA, PETG, ABS and similar), depending on filament temperature requirements
• Purpose: high-flow extrusion for coarse layers and strong infill

How to use

Turn off and allow the hotend to cool before replacing the nozzle. Heat the hotend to the appropriate temperature for the filament in use to soften residual material, then hold the heater block and carefully unscrew the existing nozzle using a correctly sized wrench. Screw the 0.8 mm nozzle in by hand until seated, then tighten to the manufacturer’s recommended torque with the hotend at printing temperature for proper sealing. Adjust slicer settings: increase nozzle diameter to 0.8 mm, set appropriate line width and layer height (typically up to 60–80% of nozzle diameter for reliable extrusion), and raise extrusion multiplier or flow if necessary. Perform a test print to verify adhesion, flow, and dimensional outcomes.

Recommendations

Use larger layer heights and wider extrusion widths to take advantage of the 0.8 mm nozzle’s throughput. Monitor first layers and calibrate extrusion flow to avoid under- or over-extrusion. For abrasive filaments, consider a wear-resistant nozzle; for fine-detail needs, switch back to smaller-diameter nozzles.
