Ugello spray Gardena 13321-20 per sistema di irrigazione a goccia

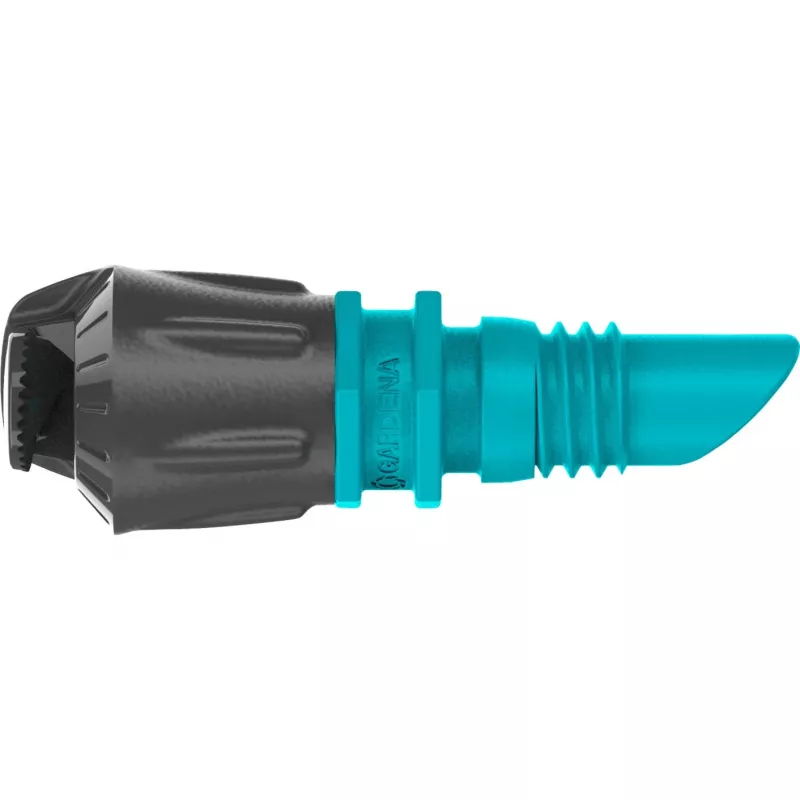

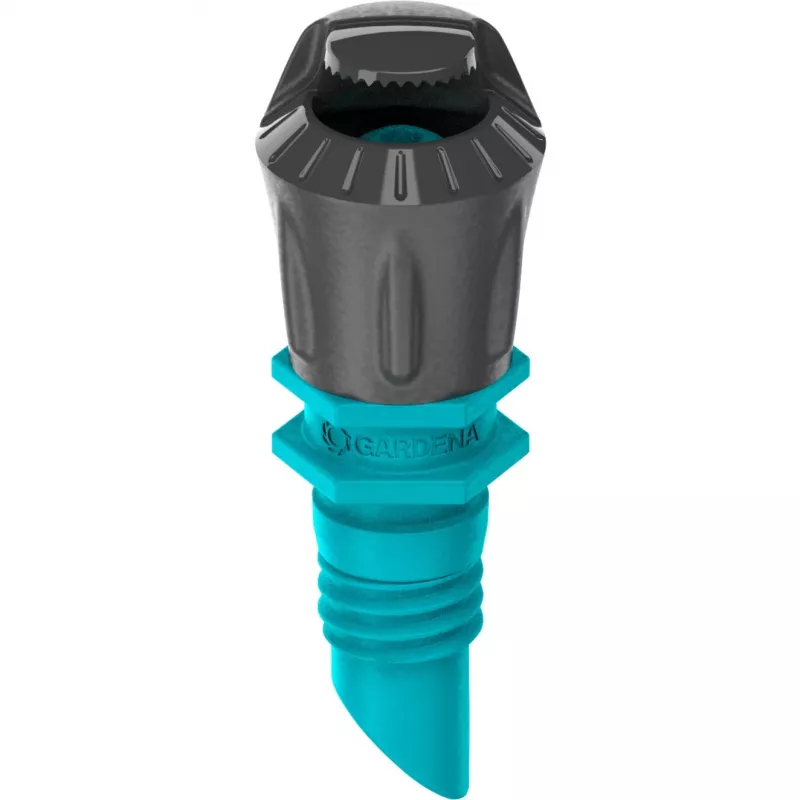

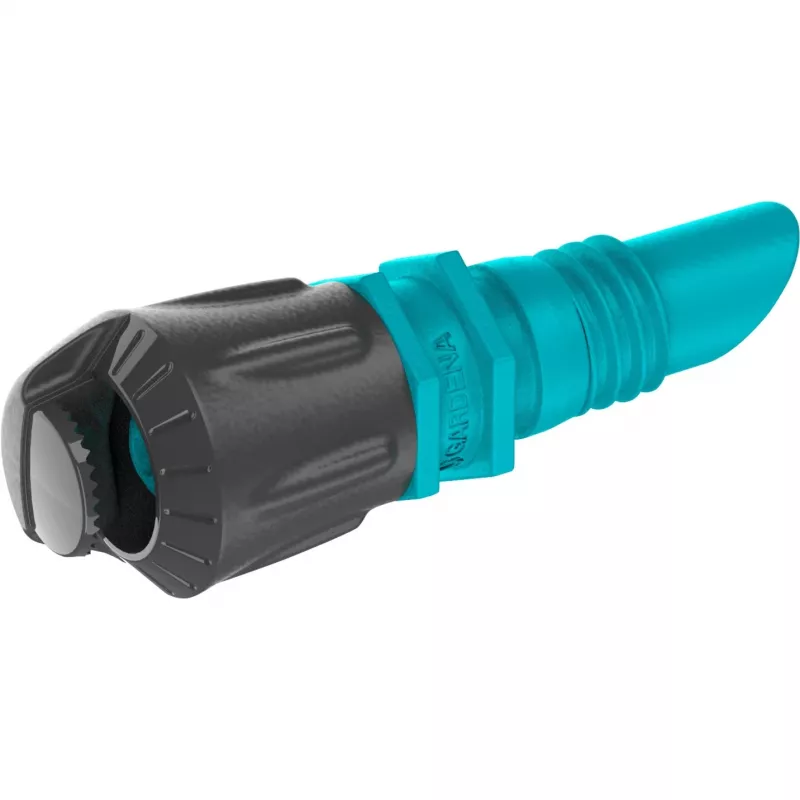

Use the GARDENA Spray Nozzle 180° (Art. No. 13321-20) in the Micro-Drip-System for even 180° watering of flower and vegetable beds with a fine spray. The MDS component reaches up to 2.75 m and covers an area of approximately 14 m². The spray nozzle is made of durable plastic and is supplied individually as an accessory for drip irrigation systems. The product is manufactured in Germany.

Advantages

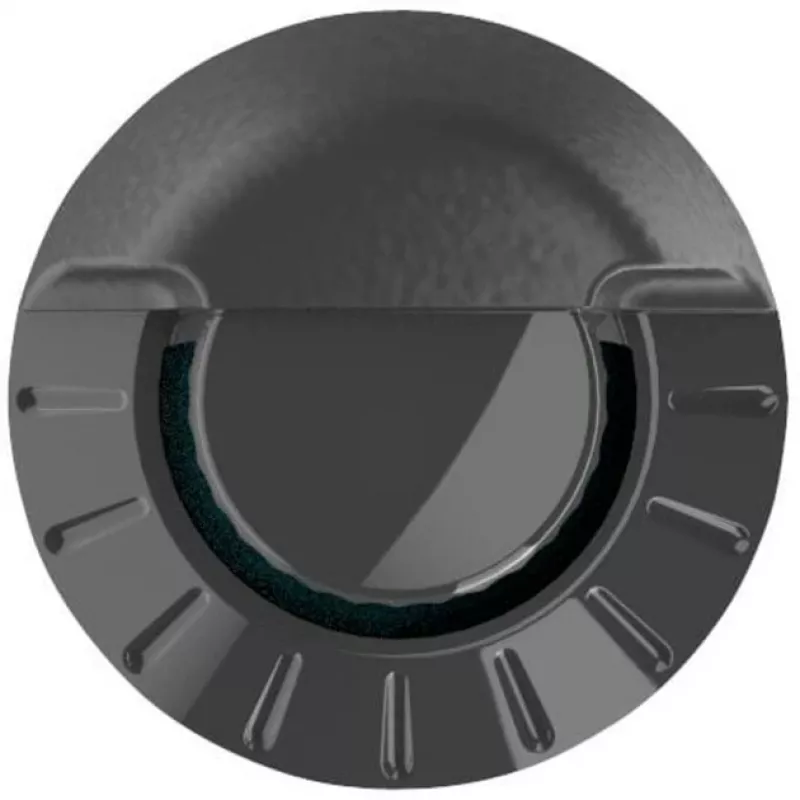

The spray nozzle provides area-wide irrigation in a half-circle pattern and is designed for water- and time-saving use in micro-drip systems. Its spray pattern is shown by a symbol on the spray head to make identification simple. The nozzle can be installed directly into the 13 mm connecting pipe or used with the T-joint for spray nozzles, and height can be increased using a separately available extension pipe. The component supports precise watering of individual beds and integrates with optional accessories such as a shut-off valve for flow regulation.

Suitable for (tasks / use cases)

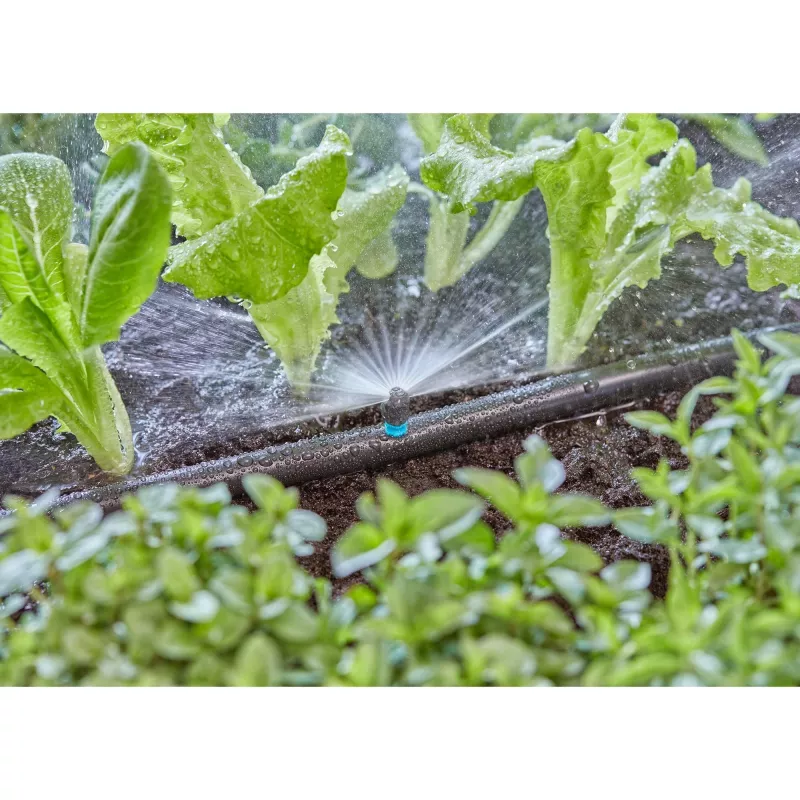

• Watering flower beds and border plantings in a 180° half-circle
• Irrigating vegetable beds and small garden plots
• Integration into GARDENA Micro-Drip-System layouts
• Retrofit or expansion of existing 13 mm connecting pipe systems

Key specifications

• Brand: GARDENA
• Manufacturer article number (MPN): 13321-20
• EAN: 4078500059152
• Spray angle: 180°
• Range: 2.75 m
• Coverage area: approx. 14 m² (per nozzle)
• Material: durable plastic
• Compatibility: GARDENA Micro-Drip-System, 13 mm connecting pipe
• Made in Germany

How to use

Install the Spray Nozzle 180° by poking it into the 13 mm connecting pipe using the Assembly Tool (Art. No. 13313-20) or by inserting it into the T-Joint for Spray Nozzles (Art. No. 13206-20). If taller plants require overhead watering, extend the nozzle height with the Extension Pipe for Spray Nozzles (Art. No. 13326-20); pipes are 20 cm long and can be combined. To regulate water flow or shut off individual pipe strands, add the Shut-Off Valve (Art. No. 13207-20) as needed. Check that the spray pattern symbol on the head matches the desired 180° distribution before starting the system.

Recommendations

Position nozzles so their 2.75 m reach covers the intended planting area without excessive overlap; use shut-off valves and the adjustable regulation function to match water delivery to each plant's needs and reduce water use.
