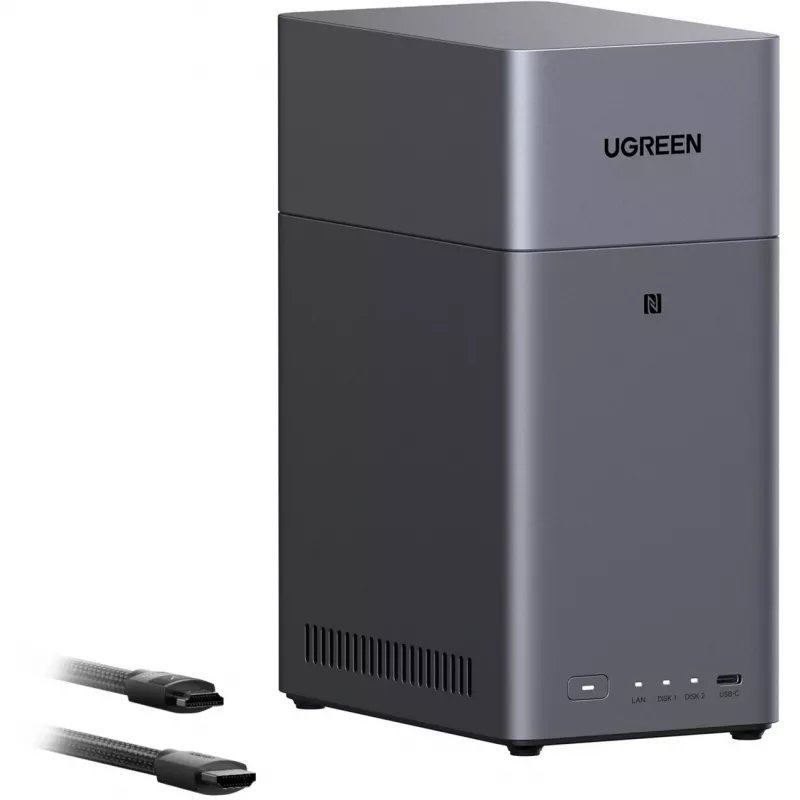

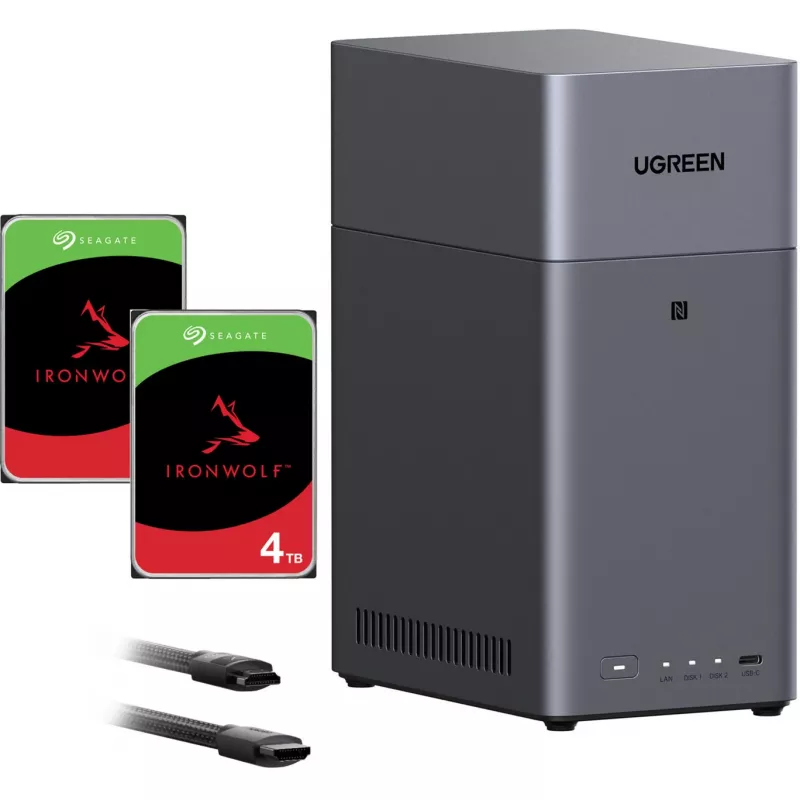

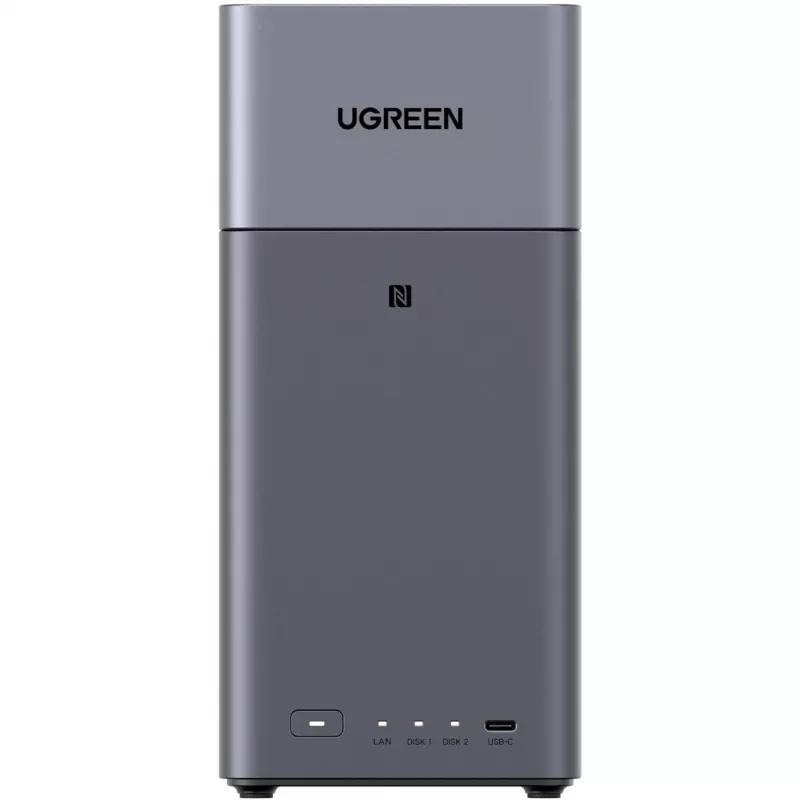

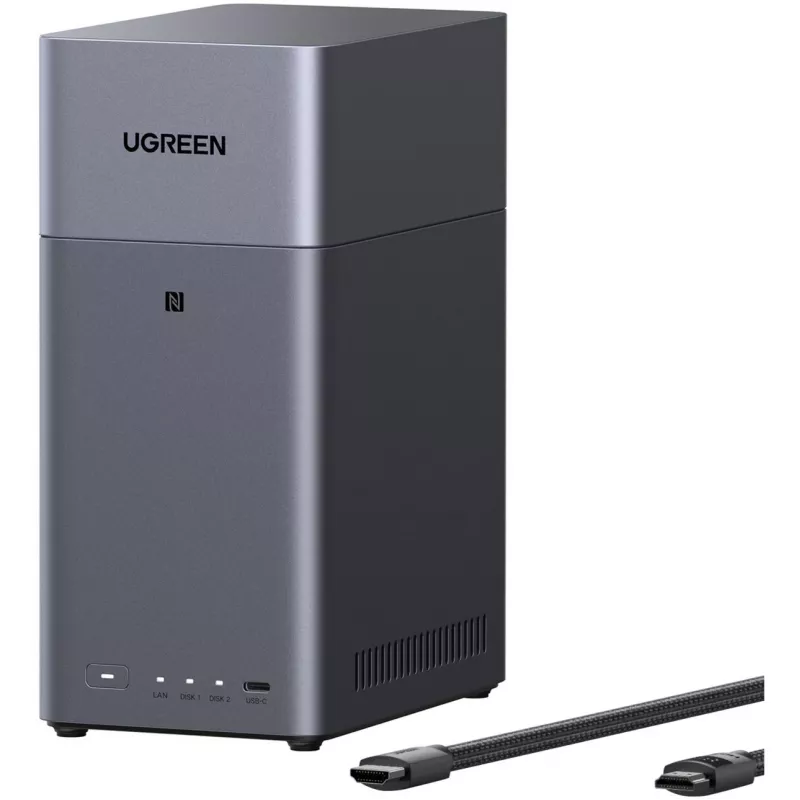

UGREEN DH2300 bundle con 2x Seagate IronWolf NAS 4TB CMR (nero)

Dual Gigabit Ethernet, quad 4K display support, and a fanless heatpipe design make this bundle a silent, versatile foundation for NAS, firewall, or virtualization projects. The DH2300 barebone pairs an Intel H610 chipset with LGA1700 socket for 12th/13th Gen Core processors up to 65W TDP, while two Seagate IronWolf 4TB CMR drives deliver 8TB of NAS-optimized storage out of the box.

Overview

The UGREEN DH2300 bundle combines a compact barebone PC with two Seagate IronWolf 4TB NAS hard drives, giving you a ready-to-build platform for network storage, home server, or edge computing. The barebone unit supports Intel 12th and 13th Gen Core processors (up to 65W TDP) on the LGA1700 socket, with dual-channel DDR4 SO-DIMM memory up to 64GB. Storage expansion includes one M.2 2280 PCIe Gen4 x4 slot and one 2.5" SATA bay, alongside the two included 3.5" IronWolf drives. Connectivity is robust: two HDMI 2.0b and two DisplayPort 1.4a outputs enable quad 4K displays, while dual Intel i211AT Gigabit Ethernet ports provide link aggregation or failover. USB options include two USB 3.2 Gen 2, four USB 3.2 Gen 1, and two USB 2.0 ports. The fanless heatpipe cooling ensures silent operation, and the system supports Windows 11 and Linux.

What stands out

• Includes two Seagate IronWolf 4TB CMR NAS drives (8TB total) with 256MB cache each and 180TB/year workload rating.
• Fanless heatpipe design for completely silent operation, ideal for noise-sensitive environments.
• Quad display support via dual HDMI 2.0b and dual DisplayPort 1.4a.
• Dual Gigabit Ethernet ports for link aggregation or failover.
• Supports Intel 12th/13th Gen Core processors up to 65W TDP.

Technical details

• Product Type: Mini PC Barebone Bundle
• Included Storage: 2x Seagate IronWolf 4TB NAS HDD
• Processor Socket: LGA1700
• Supported Processors: Intel 12th/13th Gen Core i9/i7/i5/i3/Pentium/Celeron (up to 65W TDP)
• Chipset: Intel H610
• Memory Slots: 2x DDR4 SO-DIMM
• Max Memory Capacity: 64 GB DDR4-3200
• Internal Storage Bays: 1x 2.5" SATA, 1x M.2 2280 PCIe Gen4 x4
• Video Outputs: 2x HDMI 2.0b, 2x DisplayPort 1.4a (Quad Display Support)
• USB Ports: 2x USB 3.2 Gen 2, 4x USB 3.2 Gen 1, 2x USB 2.0
• Network Interface: Dual Gigabit Ethernet (Intel i211AT)
• Cooling System: Fanless Heatpipe
• Operating System Support: Windows 11, Linux
• PC Unit Dimensions (L x W x H): 190 x 165 x 43 mm
• Color: Black
• Hard Drive Technology: CMR (Conventional Magnetic Recording)
• Hard Drive Interface: SATA 6Gb/s
• Hard Drive Form Factor: 3.5-inch
• Hard Drive Cache (per drive): 256 MB
• Hard Drive Workload Rate (per drive): 180 TB/year

Our verdict

The UGREEN DH2300 bundle delivers a silent, expandable platform with reliable NAS storage, making it an excellent choice for home servers and edge computing.
