UGREEN Tester per cavi di rete e telefono RJ45 RJ11 tester di continuità per cavi Ethernet e telefonici Cat5 Cat5e Cat6 Cat6a Cat7 con indicatori LED, unità remota rimovibile, funzionamento a batteria 9V, NW167

Faulty network cables are a leading cause of connectivity issues, yet identifying a broken wire or miswired connector without the right tool is nearly impossible. The UGREEN Network and Telephone Cable Tester NW167 solves this by providing fast, accurate verification of RJ45 Ethernet and RJ11 telephone cables. Simply connect the cable to the main unit and remote, and the automatic scan immediately reveals open circuits, short circuits, cross-wires, and mis-wires via clear LED indicators. Whether you are installing new cabling, troubleshooting an existing network, or performing routine maintenance, this tester saves time and eliminates guesswork.

Who is it for

This tester is ideal for IT professionals, network technicians, electricians, and DIY enthusiasts who work with structured cabling. It is equally useful for home users setting up a wired network or checking telephone lines. If you need to verify cable continuity before deployment or diagnose a faulty connection, this tool is an essential addition to your toolkit.

Main features

• Supports RJ45 (8P8C) Ethernet cables and RJ11 (6P2C/6P4C/6P6C) telephone cables
• Detects open circuits, short circuits, cross-wires, mis-wires, and no connection
• Automatic scanning with LED indicators: 8 LEDs for RJ45 (plus ground), 6 for RJ11
• Detachable remote unit allows testing of installed cables up to 100 meters apart
• Compatible with Cat5, Cat5e, Cat6, Cat6a, Cat7 Ethernet and RJ11 telephone cables
• Powered by a single 9V DC battery (not included) with low battery indicator
• Durable ABS plastic housing, compact and portable
• CE, FCC, RoHS compliant

Specifications

• Brand: UGREEN
• Model: NW167
• MPN: NW167-10950
• EAN: 6957303819508
• Test functions: Open circuit, short circuit, cross-wire, mis-wire, no connection
• Indicator type: LED lights
• Test mode: Automatic scan (approx. 2-3 scans per second)
• Main unit and remote unit: Yes, detachable
• Power source: 1 x 9V DC battery (not included)
• Battery voltage: 9V
• Low battery indicator: Yes
• Material: ABS plastic
• Max test distance: 100 meters
• Operating temperature: 0°C to 40°C (32°F to 104°F)
• Storage temperature: -10°C to 50°C (14°F to 122°F)
• Operating humidity: 20% to 80% RH (non-condensing)
• Safety compliance: CE, FCC, RoHS
• Included accessories: User manual

Tips

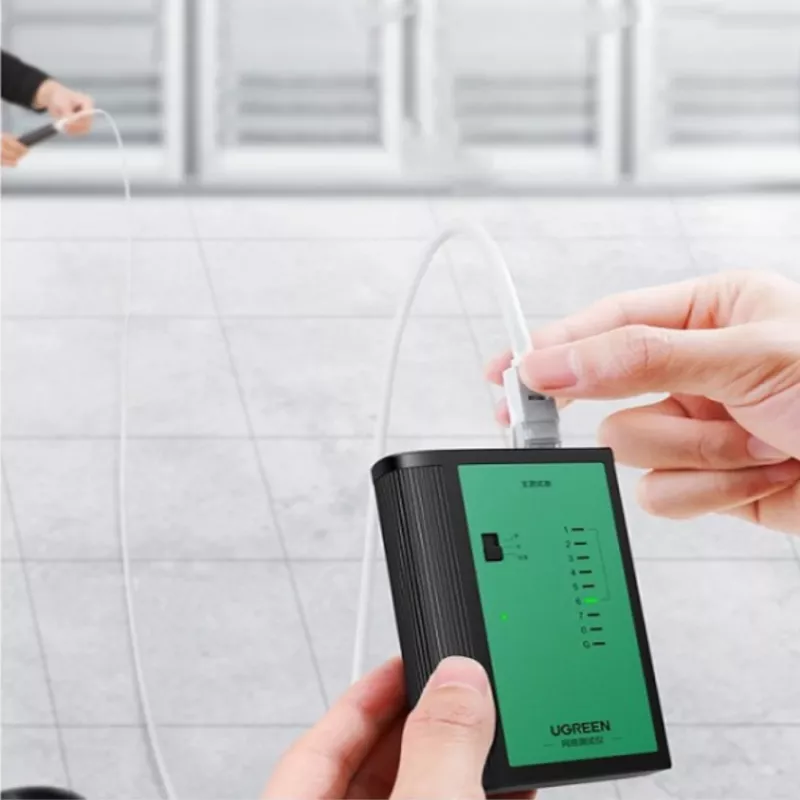

To test a cable, plug one end into the main unit and the other into the remote unit (or into the corresponding port on the main unit for short patch cables). Turn on the power and observe the LED sequence. A steady, sequential light pattern indicates a correctly wired cable. Any missing, extra, or out-of-sequence lights point to a specific fault. For installed cables, detach the remote unit and connect it at the far end. Always use a fresh 9V battery for reliable results, and store the tester in a dry place when not in use.
