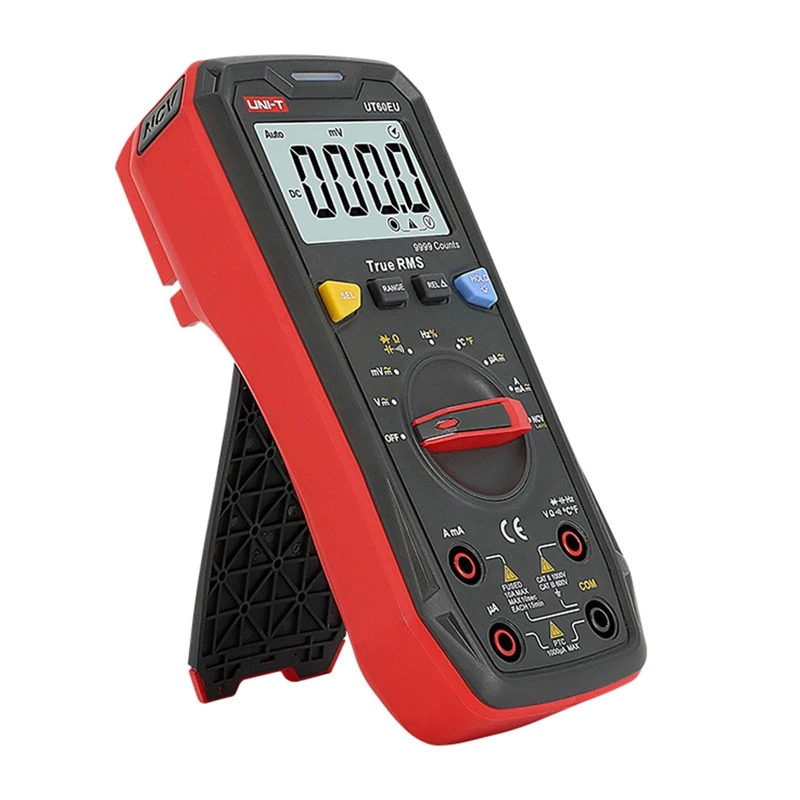

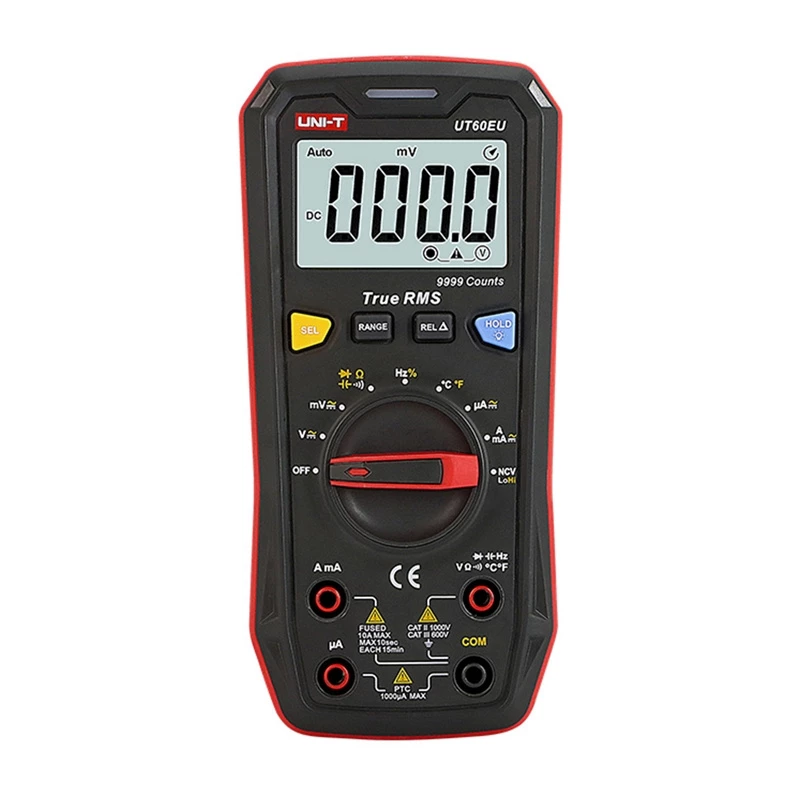

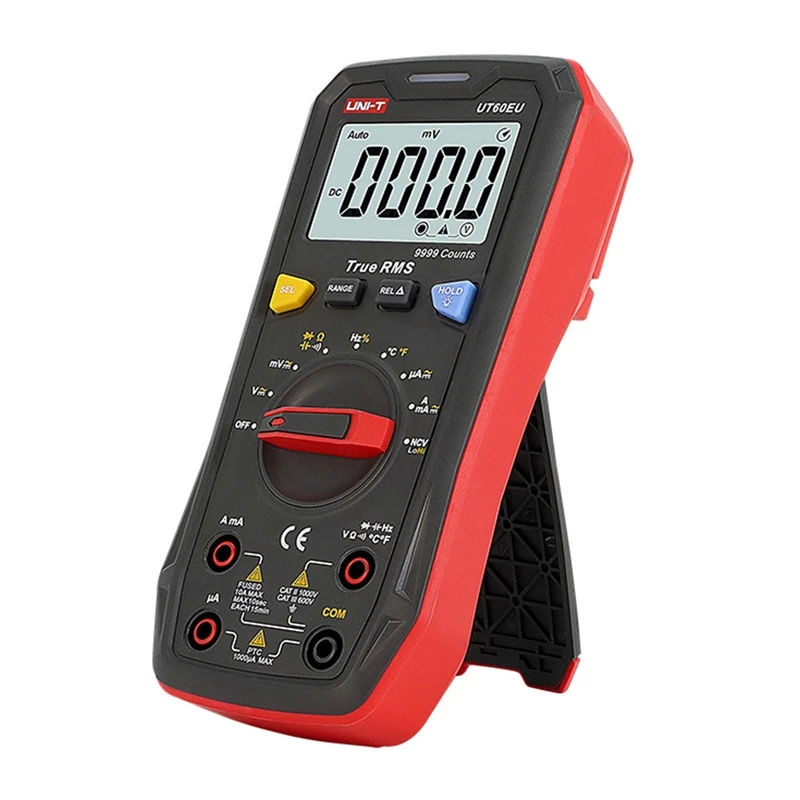

UNI-T UT60EU Multimetro digitale, True RMS

The UNI-T UT60EU is a digital multimeter with True RMS measurement and a resolution of 9999 counts. It is designed for use in workshops, industrial halls, electronic service and installation work in the field.

Key features

• True RMS measurement
• 9999 counts resolution
• Backlit screen
• Robust housing
• NCV (non-contact voltage detection)
• Diode and continuity test with audible and visual indication
• REL (relative measurement) function
• Data storage (Data Hold)
• Automatic shutdown after 15 minutes of inactivity
• Three-color LED indicator for power status and test results
• Automatic range
• Low battery indicator (≤3.6V)

Specifications

• Brand: Uni-T
• Model: UT60EU
• DC voltage measurement range: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V ±(0.5%+3)
• AC voltage measurement range: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V ±(0.8%+3)
• DC current measurement range: 999.9uA/999.9mA/9.999A/10A ±(0.8%+3)
• AC current measurement range: 999.9uA/999.9mA/9.999A/10A ±(1.0%+3)
• Resistance measurement range: 999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ ±(0.8%+2)
• Capacitance measurement range: 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/9.99mF ±(4.0%+5)
• Frequency measurement range: 99.99Hz～9.999MHz ±(0.1%+5)
• Duty cycle: 0.1～99.9% ±(3%+5)
• Temperature measurement range: –40℃～1000℃/–40°F～1832°F ±4℃/±5℉
• Safety standards: CAT II 1000V and CAT III 600V
• Operating temperature: 0℃～40℃
• Power supply: 1.5V AAA x3
• Weight: 290 g
• Dimensions: 169 x 81 x 46 mm
