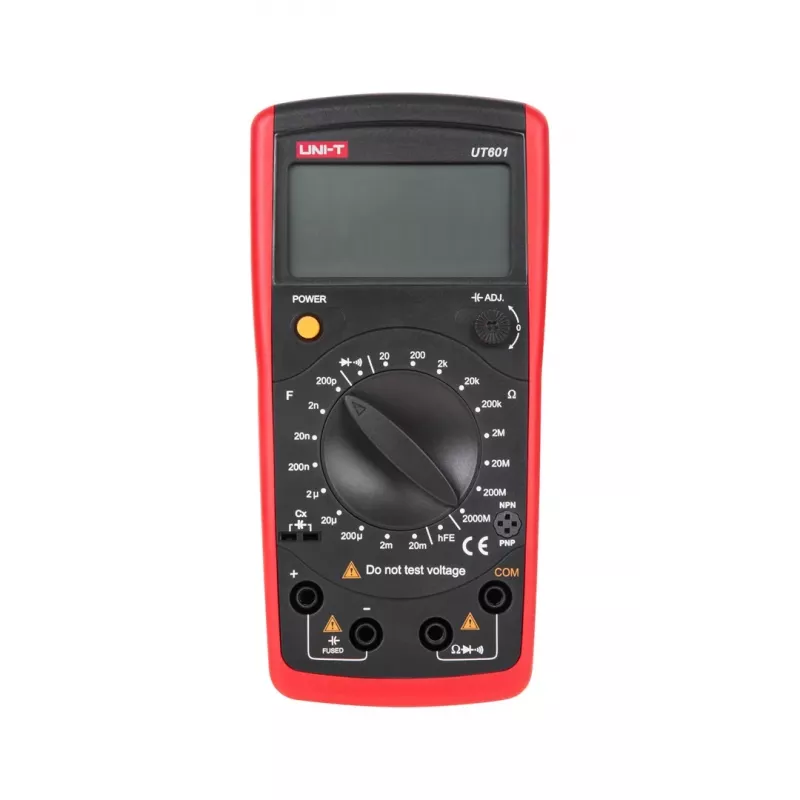

UNI-T UT601 misuratore di capacità e resistenza

With a capacitance range spanning from 200pF to 20mF and a best accuracy of ±(0.5%+10), the UNI-T UT601 tackles both tiny ceramic capacitors and large electrolytic capacitors with confidence. Its 1999-count LCD delivers clear readings, while the continuity buzzer and diode test add everyday troubleshooting convenience.

Overview

The UNI-T UT601 is a handheld digital meter focused on capacitance and resistance measurements. It is built for electronics repair, component sorting, and lab work where a dedicated LCR meter is overkill. The meter runs on a single 9V battery (6F22) and ships with test leads, battery, and a user manual. CE and RoHS compliance ensures it meets basic safety and environmental standards.

What stands out

• Wide capacitance range: 200pF to 20mF, covering most capacitors used in consumer electronics.
• Resistance measurement up to 2000MΩ with ±(0.8%+1) best accuracy.
• Diode test and continuity buzzer for quick go/no-go checks.
• Data hold freezes the display for easy reading in tight spots.
• Low battery and overload indicators prevent misleading measurements.
• Simple rotary switch and large LCD make operation straightforward.

Technical details

• Display: 1999-count LCD
• Capacitance ranges: 200pF, 2nF, 20nF, 200nF, 2µF, 20µF, 200µF, 2mF, 20mF
• Capacitance best accuracy: ±(0.5%+10)
• Resistance ranges: 20Ω, 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ, 200MΩ, 2000MΩ
• Resistance best accuracy: ±(0.8%+1)
• Diode test: yes (forward voltage drop)
• Continuity buzzer: yes (sounds below approximately 30Ω)
• Data hold: yes
• Low battery indication: yes
• Overload display: shows "1" on the leftmost digit
• Power supply: 9V battery (6F22)
• Auto power off: no
• Operating temperature: 0°C to 40°C
• Storage temperature: -10°C to 50°C
• Safety compliance: CE, RoHS
• Included accessories: test leads, 9V battery, user manual

Our verdict

The UT601 is a no-nonsense capacitance and resistance meter that covers an unusually broad capacitance range for its class. It lacks auto power off and true RMS, but for bench work where you can reach the power switch, it is a dependable tool that won't break the bank.
