Unibox in fibra ottica, Digitus, DN-96800M-2

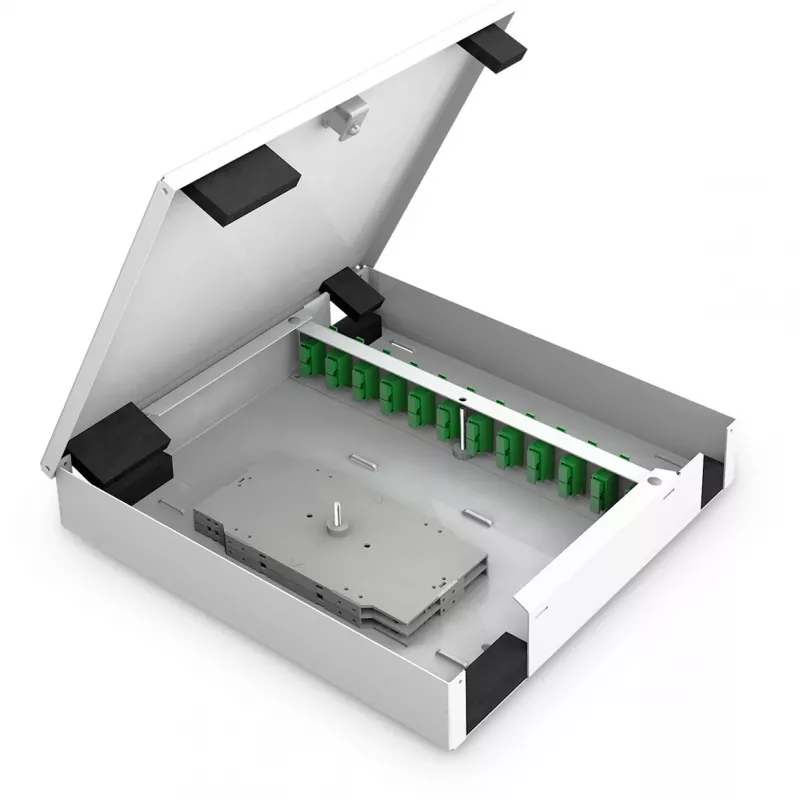

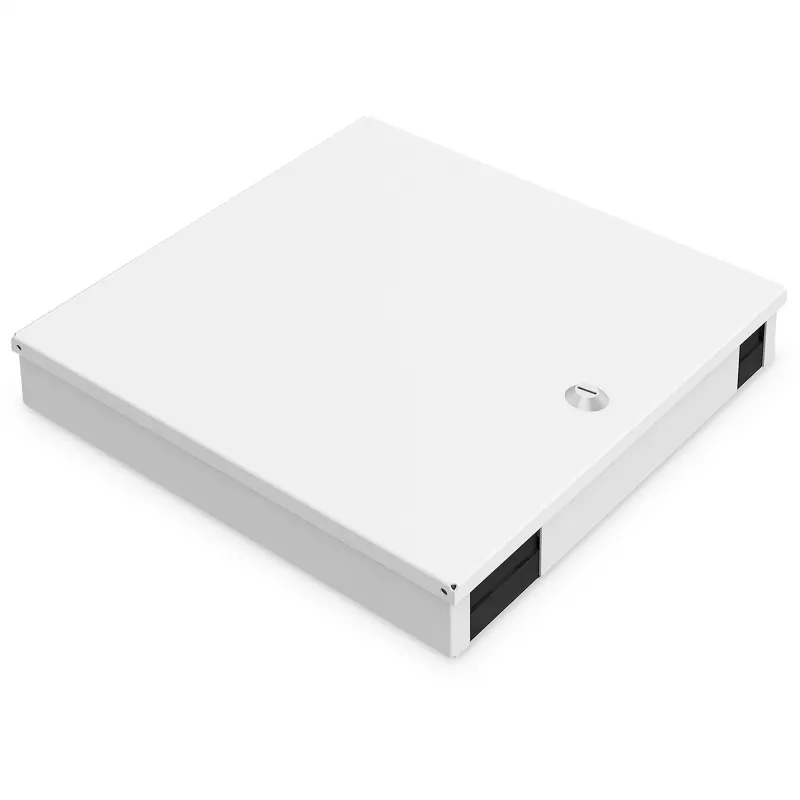

The Digitus Fiber Optic Unibox (DN-96800M-2) is a compact, wall-mountable splice box designed for indoor telecommunications and data communication applications. Constructed from sturdy cold-rolled sheet steel, it organizes and protects up to 48 fibers and provides flexible cable entry and exit at both the top and bottom using foam rubber strips. The unibox includes a lock with two keys and mounting material for installation.

Advantages

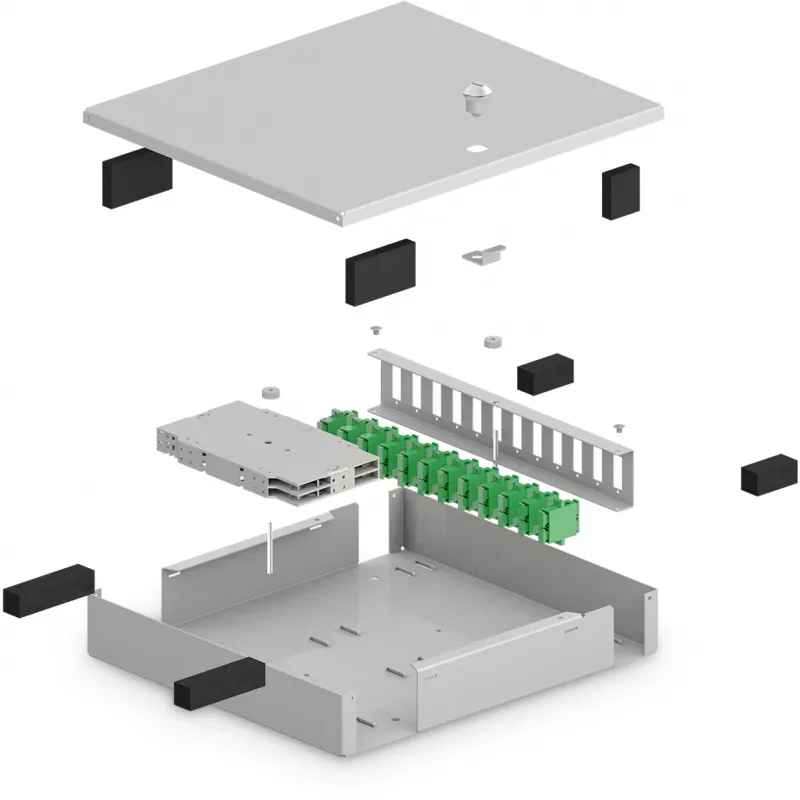

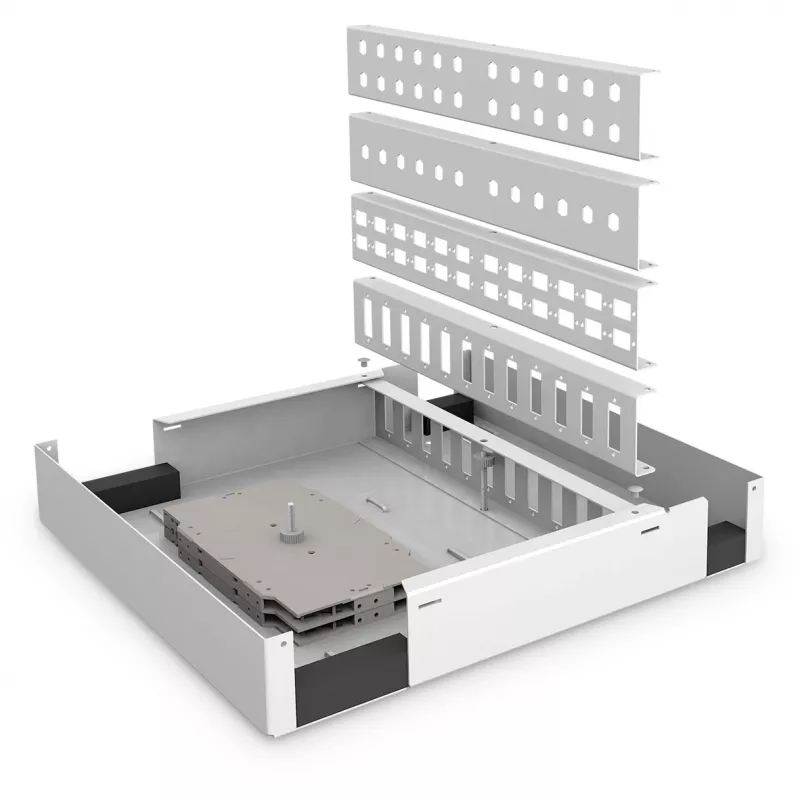

The unibox supports up to four splice cassettes to increase splice capacity and offers integrated mounting fixtures for cable ties to secure internal cabling. Various adapter plates are available to accommodate different coupling types, and the included mounting kit (dowels, screws, washers, cable ties) simplifies installation. Its durable steel construction ensures long-term mechanical protection for fiber splices.

Suitable for

• Indoor telecommunications installations
• Data center patching and distribution
• Office and commercial building fiber terminations
• Fiber backbone branching and splicing points

Key specifications

• Brand: DIGITUS
• Model / MPN: DN-96800M-2
• EAN: 4016032466130
• Max fiber capacity: up to 48 fibers
• Supports up to 4 splice cassettes (optional)
• Material: cold-rolled sheet steel
• Mounting: wall-mountable; includes 4x dowels, screws, washers and cable ties
• Dimensions (W × D × H): 320 mm × 54 mm × 280 mm
• Lockable: yes (includes 2 keys)

How to use

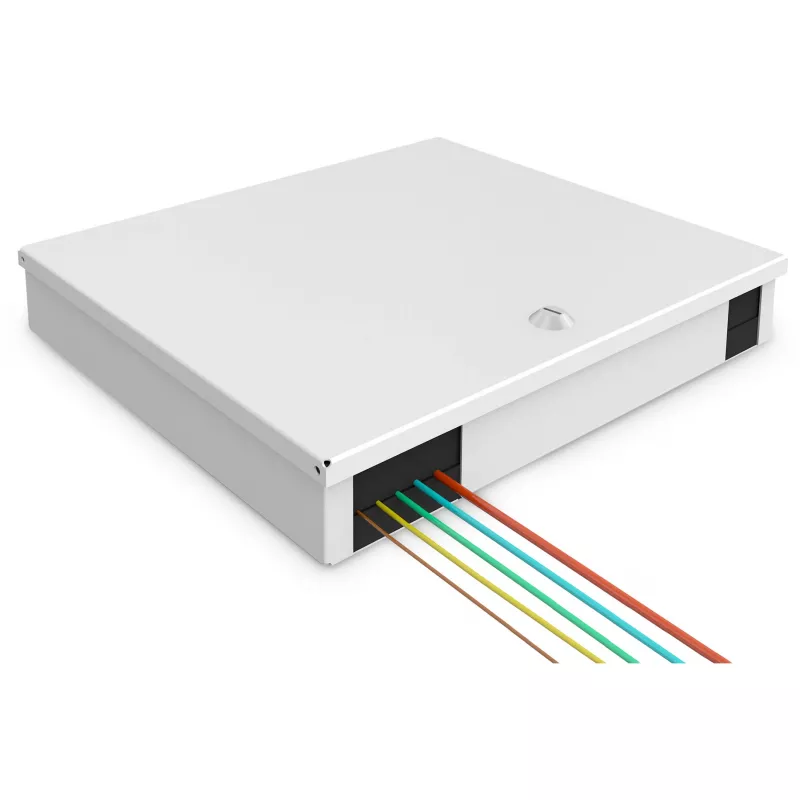

Mount the unibox on a suitable indoor wall surface using the supplied dowels and screws. Open the box, route incoming and outgoing fiber cables through the top or bottom cable entry points and seal around the cables with the foam rubber strips. Install splice cassettes as required and arrange fiber splices inside, securing loose fibers with cable ties on the integrated mounting fixtures. Fit adapter plates or couplings if external connections are needed, then close and lock the box with the supplied keys.

Recommendations

Install and maintain the unibox in a dry, temperature-stable indoor environment. Handle fibers and splices following standard optical-fiber safety and cleaning procedures, and use compatible adapter plates and splice cassettes to match connector and splice types.
