Unità ventola EFB Elektronik PRO-LFD02AT.GR

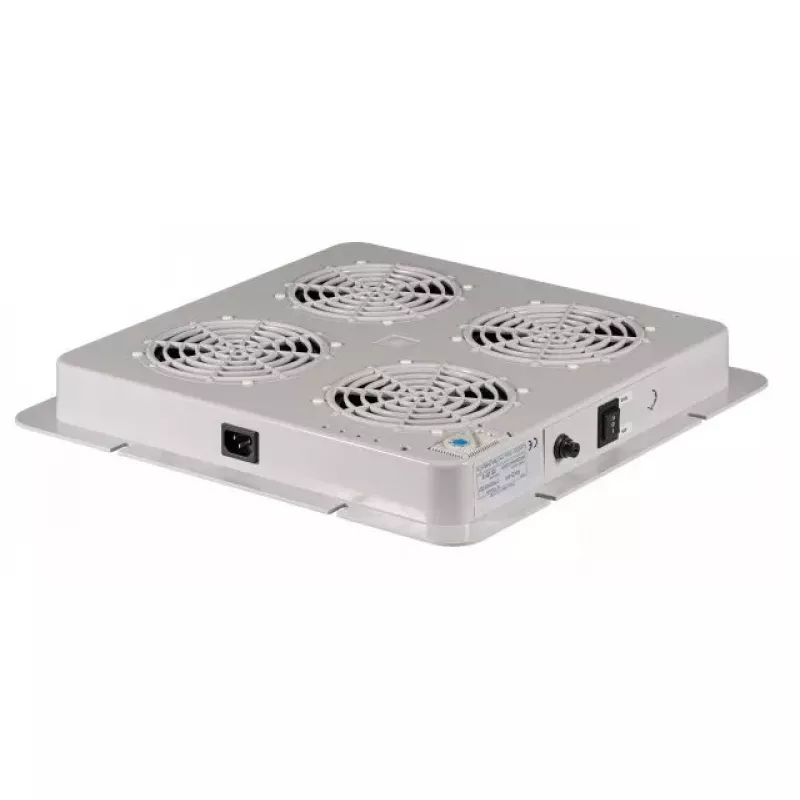

The EFB Elektronik PRO-LFD02AT.GR is a cooling fan unit with an integrated thermostat, designed for mounting in the roof of 19" cabinets and racks. It is intended to maintain stable temperatures in equipment enclosures and comes with the required mounting accessories. The unit has a plastic housing finished in light grey (RAL7035) and is built for installation in an A-type opening (380 x 380 mm). The fan operates from AC mains (230 V, 50 Hz) and is supplied as a single unit per pack.

Advantages

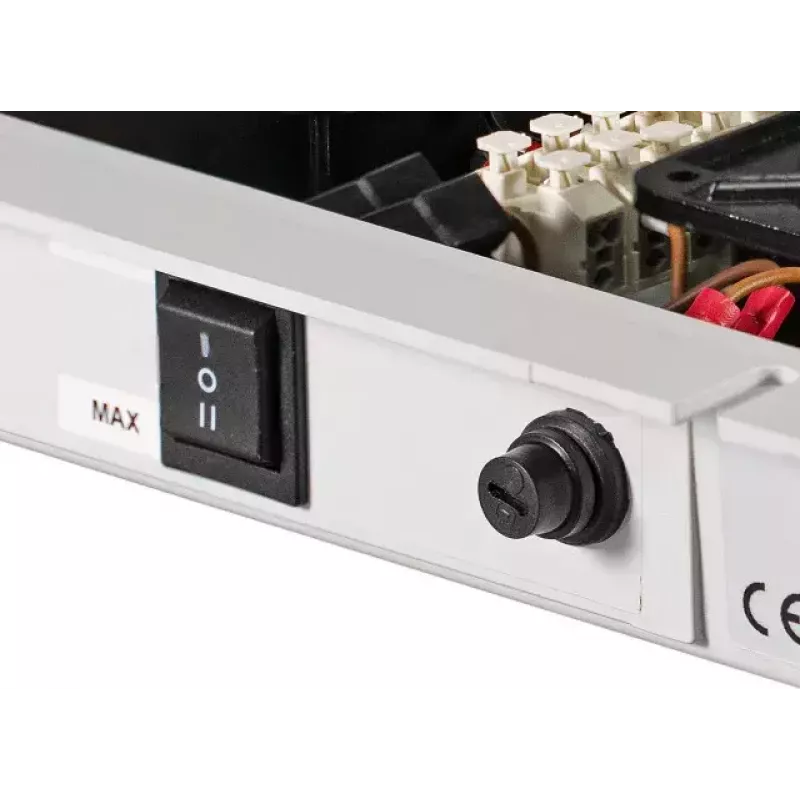

The fan unit combines a thermostat and a compact plastic housing for straightforward installation into standard 380 x 380 mm roof openings. For the 4-fan variant a 3-stage speed switch (0/I/II) allows reduced-speed "Silent-Mode" operation for quieter cooling; the 2-fan variant uses a simple ON/OFF switch. The unit is supplied complete with mounting accessories and is available in a light grey finish matching typical rack equipment.

Suitable for

• Cooling and ventilation of 19" network and server cabinets
• Maintaining airflow in small to medium equipment enclosures
• Replacement or upgrade of roof-mounted fan units in racks with A-type (380 x 380 mm) openings

Key specifications

• Brand: EFB Elektronik
• Model: PRO-LFD02AT.GR
• Type: Cooling fan unit with integrated thermostat
• Mounting opening: A (380 x 380 mm)
• Housing material: Plastic
• Finish: RAL7035 (light grey); also available RAL9005 (jet black)
• Power supply: AC 230 V, 50 Hz
• Pack contents: 1 fan unit incl. thermostat and mounting accessories

How to use

Install the unit into the cabinet roof opening sized 380 x 380 mm (A-type) using the supplied mounting accessories. Connect the unit to a 230 V, 50 Hz AC supply following local electrical regulations. Set the thermostat to the desired switching temperature so the fan operates automatically when the internal temperature exceeds that setpoint. For the 4-fan variant select the required speed using the 3-stage switch (0/I/II) to enable silent mode; for the 2-fan variant use the ON/OFF switch.

Recommendations

Position the fan unit to ensure unobstructed airflow into and out of the cabinet; verify the thermostat setpoint and wiring after installation. Regularly check the fan and housing for dust buildup and clean as required to maintain cooling performance.
