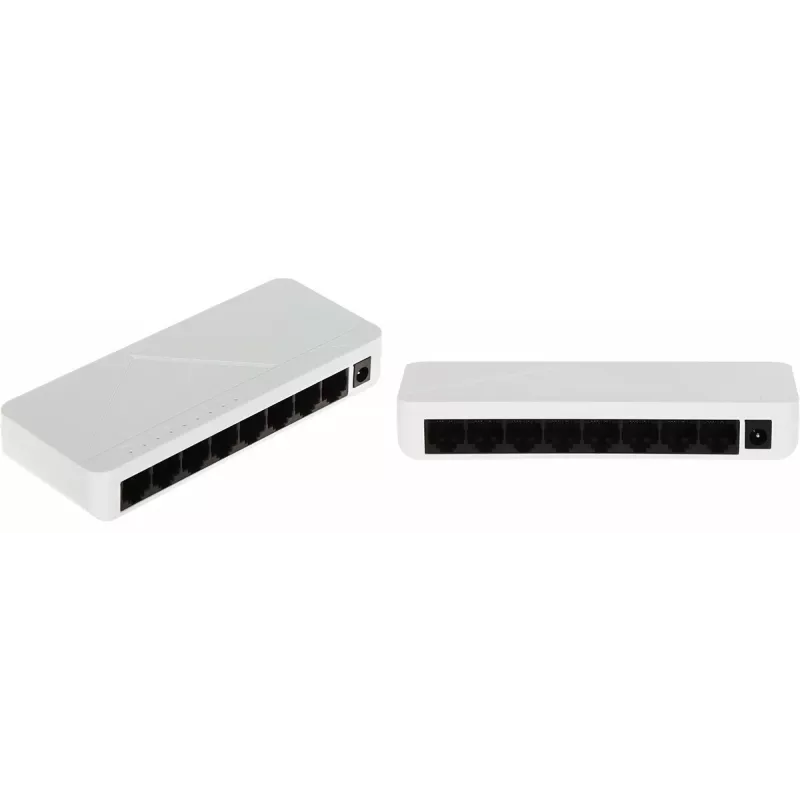

Uniview NSW1010-8GT-IN Switch desktop Gigabit unmanaged 8 porte

The Uniview NSW1010-8GT-IN is a high-performance 8-port Gigabit unmanaged switch designed for small to medium-sized business networks. With plug-and-play simplicity, fanless silent operation, and robust metal housing, it delivers reliable 10/100/1000Mbps connectivity for bandwidth-intensive applications such as IP surveillance, VoIP, and data transfer.

Advantages

This switch offers eight auto-negotiating RJ45 ports with Auto MDI/MDIX, eliminating the need for crossover cables. Its 16 Gbps switching capacity and 11.9 Mpps forwarding rate ensure non-blocking performance. The fanless design makes it ideal for noise-sensitive environments like offices or classrooms. Energy-efficient Ethernet reduces power consumption, and the compact desktop form factor saves space.

Suitable for

• Small office/home office (SOHO) networks
• IP camera systems and video surveillance
• VoIP phone deployments
• Expanding wired connectivity for workstations

Key specifications

• 8 x 10/100/1000Mbps RJ45 ports
• Switching capacity: 16 Gbps
• Packet forwarding rate: 11.9 Mpps
• MAC address table: 4K entries
• Jumbo frame support: 10KB
• Standards: IEEE 802.3, 802.3u, 802.3x, 802.3ab
• Power supply: External adapter (5V DC, 1A)
• Max power consumption: 3W
• LED indicators: Power, Link/Act
• Mounting: Desktop
• Fanless design
• Operating temperature: 0°C to 40°C
• Operating humidity: 10% to 90% non-condensing

Recommendations

For optimal performance, use Cat5e or higher cabling. This switch is ideal for expanding network capacity in small businesses or home offices. Pair with Uniview IP cameras for a seamless surveillance solution.
