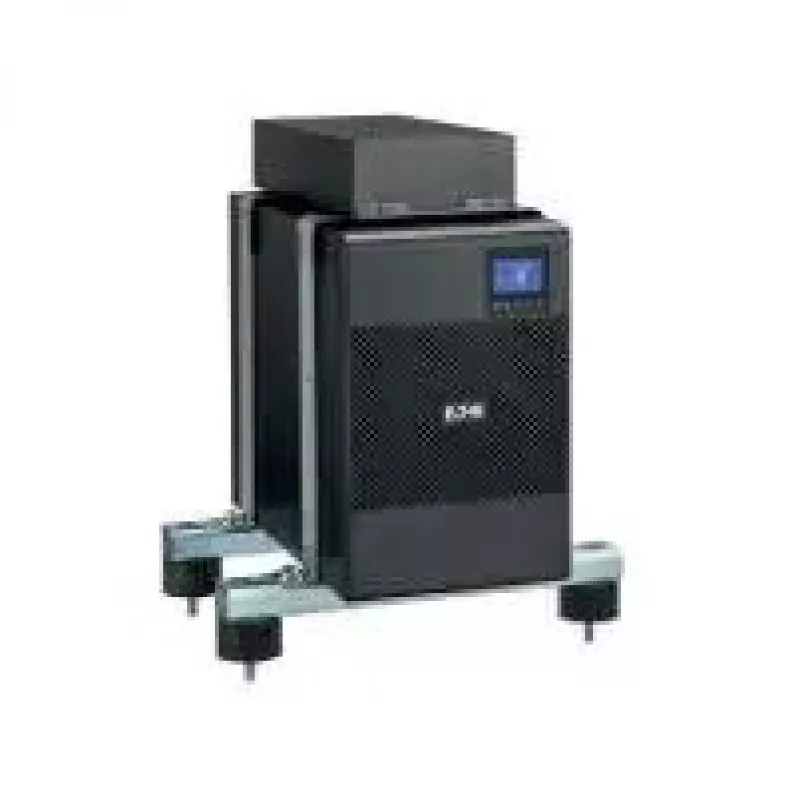

UPS Eaton 9SX1000IM doppia conversione online 1 kVA (900 W) 6x C13 RS-232 tower, nero

The Eaton 9SX1000IM Double-conversion Online 1 kVA (900 W) UPS is a tower-format uninterruptible power supply designed to provide continuous, regulated power for small servers, network equipment and critical IT devices. With online double-conversion topology it delivers a consistent sine-wave output regardless of input disturbances, while six C13 outlets and both RS-232 and USB 2.0 interfaces support multiple connected loads and basic management. Housed in a compact black chassis (160 × 387 × 252 mm) and certified to IEC/EN 62040 and UL 1778 standards, this UPS balances protection, efficiency and a modest footprint for office or edge data environments.

Advantages

The double-conversion (Online) design isolates connected equipment from input power anomalies, providing continuous voltage regulation and low total harmonic distortion to preserve sensitive electronics. Multiple C13 outlets allow simultaneous protection of several devices without external power distribution, while RS-232 and USB 2.0 ports enable communication with monitoring software for orderly shutdowns and event logging. The unit’s compact tower form and black finish make it suitable for rack-adjacent or floor placement where space is limited.

Suitable for

• Small business servers and NAS devices
• Network switches, routers and edge networking equipment
• Workstations and point-of-sale systems requiring clean power
• Laboratory and industrial controllers sensitive to power disturbances

Key specifications

• Topology: Double-conversion (Online)
• Output power capacity: 1 kVA (900 W)
• AC outlets: 6 × C13
• Interfaces: RS-232 serial, USB 2.0
• Form factor: Tower
• Colour: Black
• Dimensions (W×D×H): 160 × 387 × 252 mm
• Weight: 15 kg
• Certifications: IEC/EN 62040, UL 1778

How to use

Place the UPS on a stable, flat surface with adequate ventilation around the chassis. Connect critical devices to the C13 outlets and plug the UPS into a grounded utility mains outlet. Use the RS-232 or USB 2.0 port to connect to a management workstation if monitoring or automatic shutdown is required; install Eaton-compatible monitoring software per vendor instructions. Verify load does not exceed the 900 W output power rating and perform periodic self-tests to confirm battery condition.

Recommendations

For reliable operation, maintain total connected load below the rated 900 W, schedule regular battery self-tests and replace batteries according to Eaton’s maintenance guidelines. Locate the UPS away from heat sources and excessive dust, and keep communication connections configured for automated event logging and graceful shutdowns of protected equipment.
