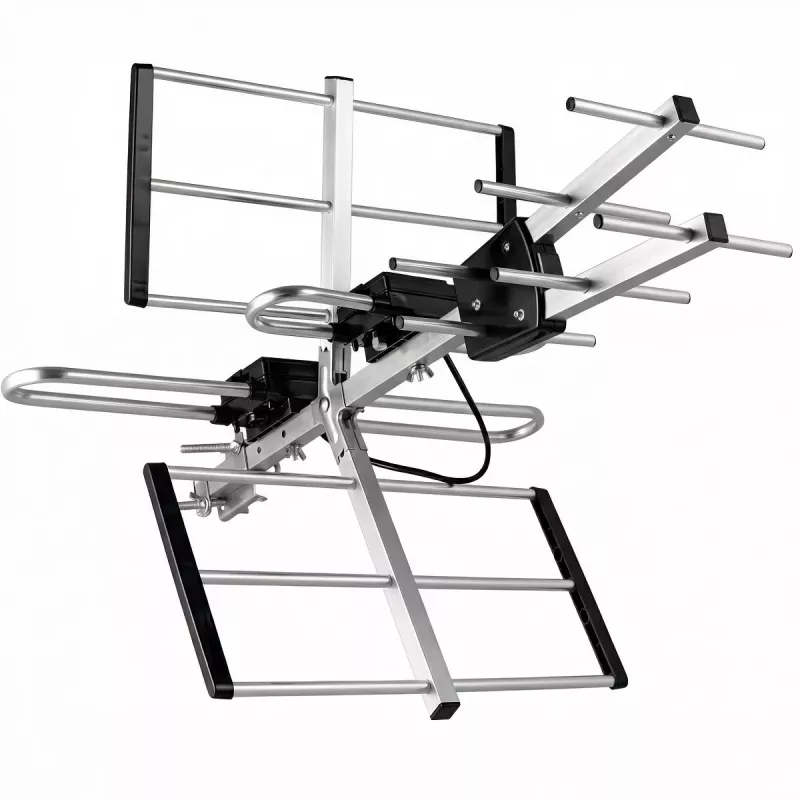

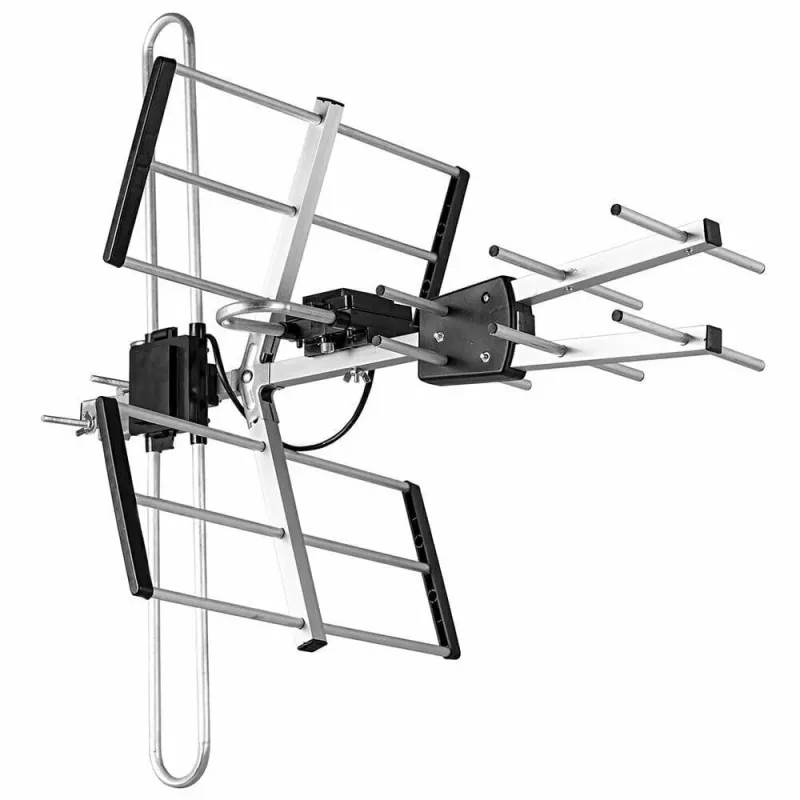

VAYOX VA0092 Antenna direzionale DVB-T/T2 H/V VHF UHF combinata passiva

The VAYOX VA0092 is a high-performance directional passive antenna designed for DVB-T/T2 digital terrestrial television reception. It supports both VHF and UHF frequency bands, ensuring reliable reception of Freeview HD and 4K broadcasts. With a robust outdoor construction and built-in LTE/5G filter, this antenna delivers clear, interference-free signals even in challenging environments.

Advantages

This combo antenna offers exceptional gain (up to 22 dBi on UHF) and supports both horizontal and vertical polarization, making it versatile for various installation scenarios. The passive design requires no external power, simplifying setup. Its durable aluminum and UV-resistant plastic construction ensures long-lasting outdoor performance.

Suitable for

• Outdoor DVB-T/T2 reception in areas with weak or medium signal strength
• Users seeking a high-gain, passive antenna for Full HD and 4K TV
• Installations requiring both VHF and UHF band support
• Replacement or upgrade of existing TV antennas

Key specifications

• Antenna Type: Directional, Passive
• Frequency Bands: VHF (174-230 MHz), UHF (470-790 MHz)
• Gain: VHF 10-12 dBi, UHF 18-22 dBi
• Polarization: Horizontal, Vertical
• Impedance: 75 Ohm
• Connector: F-type
• LTE/5G Filter: Built-in (up to 790 MHz)

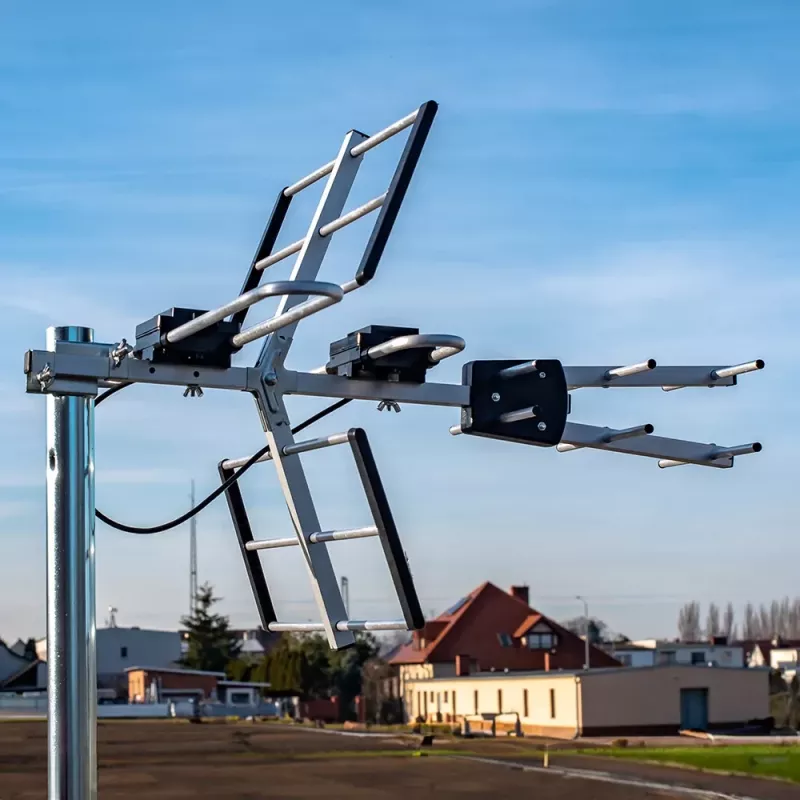

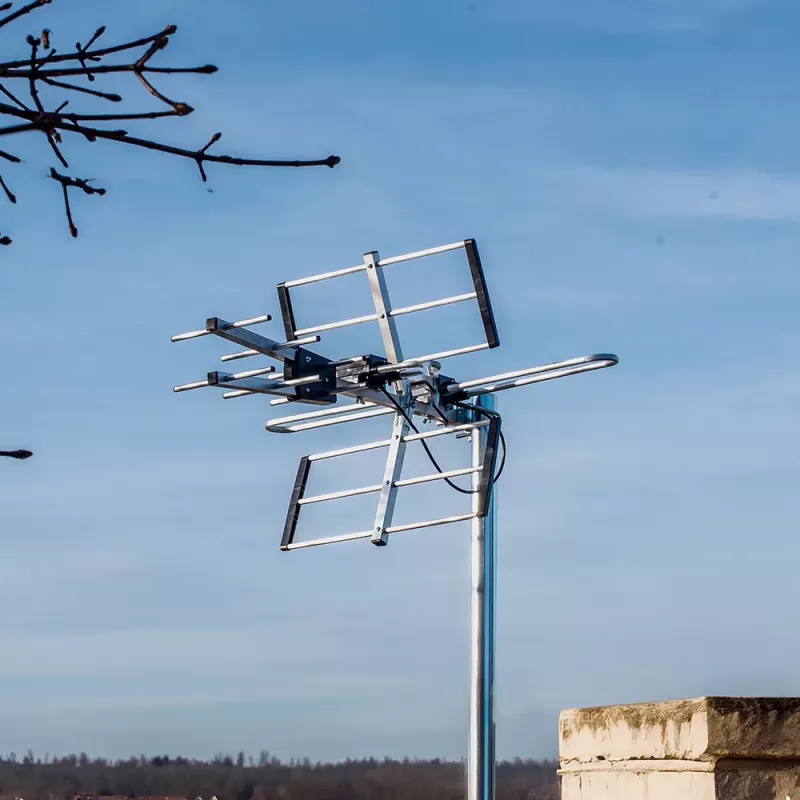

• Mounting: Outdoor mast/pole mount
• Material: Aluminum, UV-resistant Plastic
• Front-to-Back Ratio: >20 dB

Recommendations

For optimal performance, mount the antenna as high as possible with a clear line of sight to the transmitter. Use high-quality 75 Ohm coaxial cable and F-type connectors. Ensure the antenna is properly grounded for lightning protection.
