VAYOX VA900 antenna direttiva DVB-T/T2 (LB900) COMBO LTE

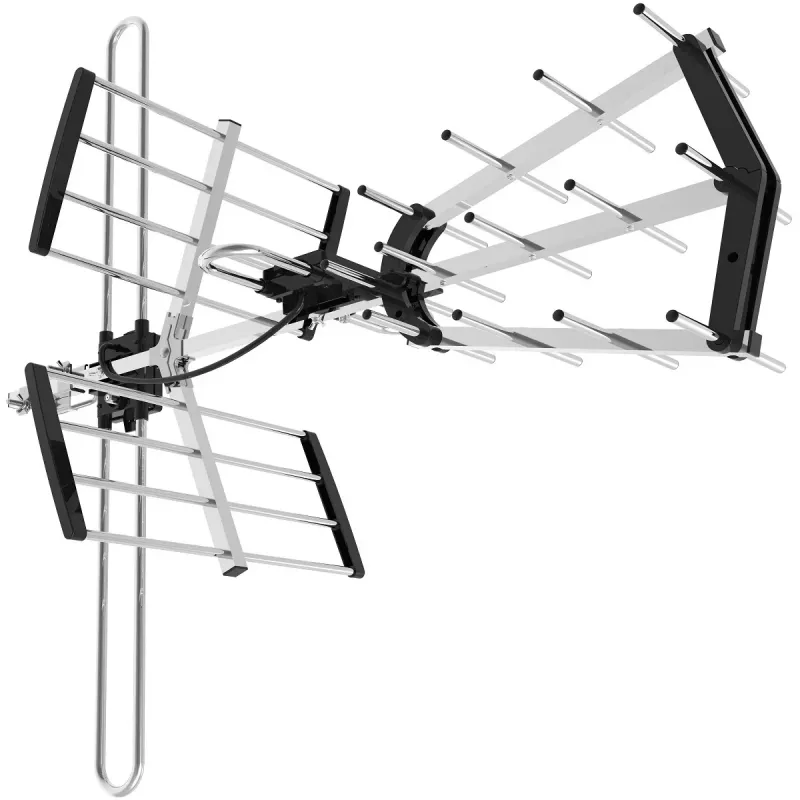

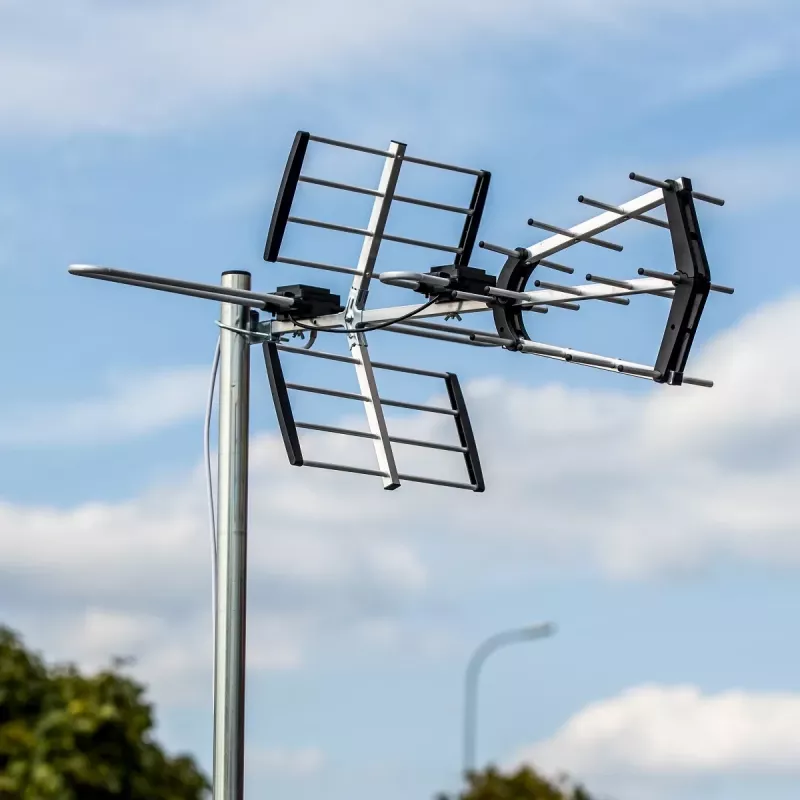

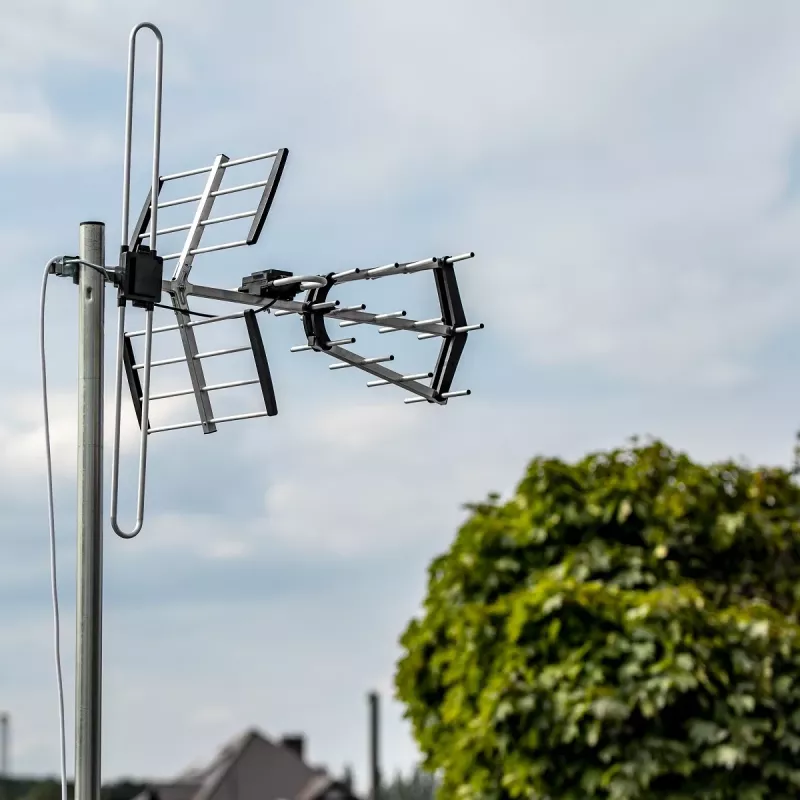

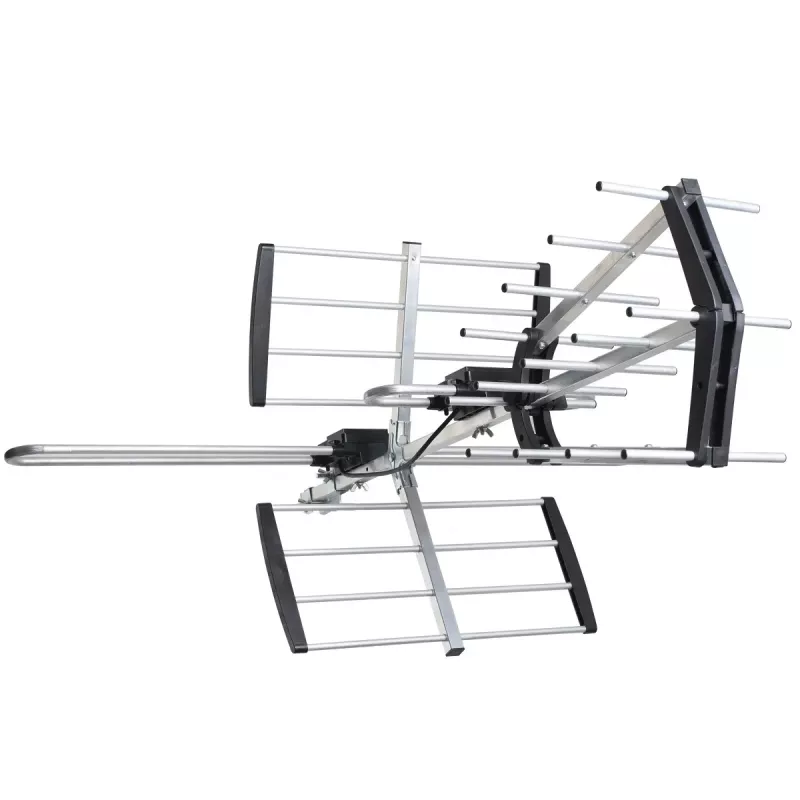

The VAYOX VA900 (LB900) is a high-performance directional outdoor antenna designed for DVB-T and DVB-T2 digital television reception. It features an integrated LTE 700 MHz filter to suppress interference from 5G/LTE networks, ensuring clear and stable signal reception. The antenna comes with a built-in amplifier and supports both horizontal and vertical polarization, making it versatile for various installation scenarios. Its robust construction with aluminum elements and UV-resistant plastic ensures durability in outdoor environments.

Advantages

This antenna offers exceptional gain of up to 30 dB, providing reliable reception even in weak signal areas. The integrated LTE filter eliminates common interference, while the adjustable polarization allows optimization for different broadcast towers. The weather-resistant design ensures long-term performance in all conditions.

Suitable for

• Home and commercial DVB-T/T2 TV reception
• Areas with weak or distant broadcast signals
• Installations requiring LTE/5G interference suppression

Key specifications

• Antenna Type: Directional Outdoor Antenna
• Signal Compatibility: DVB-T, DVB-T2, HDTV
• Frequency Range (VHF): 174 - 230 MHz
• Frequency Range (UHF): 470 - 694 MHz
• Integrated Filter: LTE 700 MHz (5G/LTE interference suppression)
• Max Gain (with amplifier): 28-30 dB
• Output Impedance: 75 Ohm
• Connector Type: F-type
• Polarization: Horizontal / Vertical (adjustable)
• Built-in Amplifier: Yes
• Amplifier Power Supply: 5-12V DC (via coaxial cable)
• Construction Material: Aluminum elements, UV-resistant plastic
• Weather Resistance: Outdoor rated
• Mounting Type: Mast/Pole Mount
• Noise Figure: < 3 dB

Recommendations

For optimal performance, mount the antenna as high as possible with a clear line of sight to the broadcast tower. Use high-quality 75 Ohm coaxial cable and ensure proper grounding. The antenna is compatible with all standard DVB-T/T2 receivers.
