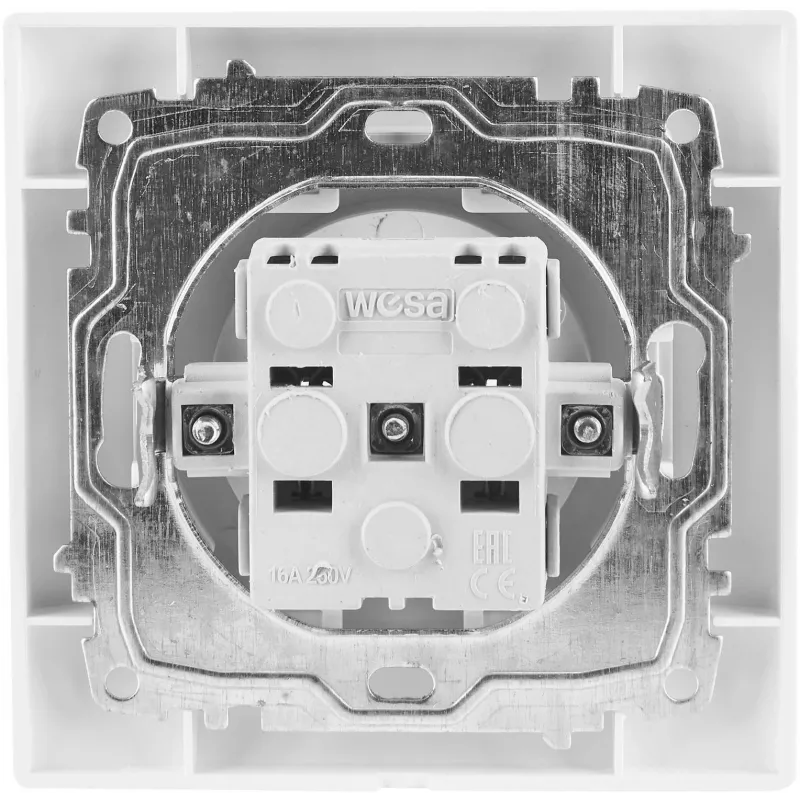

VCX WESA LC 07 Presa singola Type-E bianco

Single electrical socket outlet from the WESA LC 07 series, engineered for reliable power distribution in residential and commercial indoor spaces. Its Type E socket with earthing pin delivers a secure connection for appliances up to 16A at 250V AC. The flush-mounted design integrates seamlessly into standard Ø60mm wall boxes, while the included frame and cover plate ensure a clean, finished appearance.

Advantages

Robust thermoplastic housing (PC/ABS) resists impact and heat, ensuring long-term durability. Screw terminals provide a firm, maintenance-free connection for solid or stranded conductors. The integrated frame simplifies installation, eliminating the need for separate mounting accessories. IP20 rating protects against solid objects larger than 12mm, suitable for dry indoor environments only.

Suitable for

• Living rooms, bedrooms, and home offices requiring a standard power point
• Commercial interiors such as hotels, shops, and offices
• Retrofit projects where a single flush-mounted socket is needed
• Installations using standard 60mm diameter recessed boxes

Key specifications

• Socket type: Type E (French/Polish standard) with earthing pin
• Rated voltage: 250V AC
• Rated current: 16A
• Number of sockets: 1
• Mounting: Flush-mounted (recessed), claw/screw fixing
• Material: Thermoplastic (PC/ABS)
• Colour: White
• Degree of protection: IP20
• Terminal type: Screw terminals
• Frame and cover plate included

Recommendations

For a safe and code-compliant installation, always switch off the main circuit breaker before wiring. Use solid copper conductors of 1.5–2.5 mm² for optimal terminal contact. Pair with matching WESA LC 07 frames in white for a uniform look across multi-gang installations.
