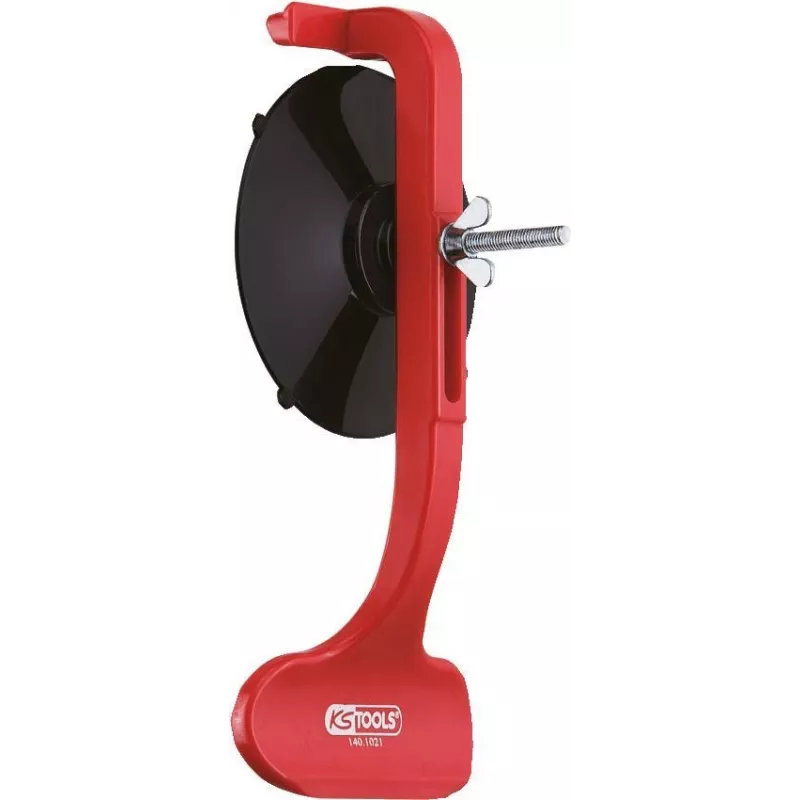

Ventosa a vuoto da montaggio KS Tools 140.1021 Ø 85 mm – ventosa a vuoto per sollevare e maneggiare

The KS Tools mounting vacuum 140.1021 is a Ø 85 mm vacuum suction cup designed for lifting, positioning and handling smooth, non-porous surfaces. Compact and lightweight, this vacuum suction cup provides temporary fixation for glass, sheet metal and other flat materials during installation or transport. Its simple attachment mechanism allows quick mounting to compatible vacuum tools or manual handling rigs, helping to reduce manual strain and improve accuracy when aligning panels or components.

Advantages

The vacuum suction cup delivers a consistent hold on clean, smooth surfaces and is sized for precise handling of medium-format panels. Its compact Ø 85 mm diameter makes it suitable for use where space is limited or where multiple small contact points are preferable to a larger single suction area. Constructed to facilitate quick attachment and release, the tool supports repetitive tasks and contributes to safer handling by reducing the likelihood of slippage during short-term lifts.

Suitable for

• Handling and positioning of flat glass panes
• Lifting and aligning sheet metal components
• Temporary fixation during assembly or installation of panels
• Use with compatible manual or powered vacuum handling rigs

Key specifications

• Diameter: 85 mm
• Material type: elastomer suction lip with rigid backing (typical construction)
• Intended surface: smooth, non-porous materials such as glass and sheet metal
• Mounting: designed for attachment to standard vacuum fittings or adapters
• Application: temporary lifting and positioning; not intended for permanent structural support

How to use

Ensure the contact surface is clean, dry and free from dust, oil or debris before attaching the suction cup. Mount the vacuum suction cup to a compatible vacuum fitting or handle according to the fitting manufacturer’s instructions. Position the cup on the target surface and apply vacuum until a secure seal is achieved. Lift or adjust the workpiece carefully, keeping loads within safe limits and maintaining visual confirmation of the seal. Release the vacuum to separate the suction cup when the task is complete.

Recommendations

Use the suction cup only on smooth, non-porous surfaces and avoid damaged or heavily textured materials. Regularly inspect the sealing lip for wear or cuts and replace the component if sealing performance degrades. Do not use the suction cup for overhead lifting of loads that exceed its safe handling capability; combine multiple cups or use a purpose-designed vacuum lifter for larger or heavier items.
