Victron Energy SmartSolar Control Screen - display remoto per regolatori di carica MPPT, VE.Direct, LCD, da incasso

Take full command of your Victron SmartSolar MPPT charge controller with the SCC900650010 Control Screen. This flush-mount remote display puts real-time PV power, battery voltage, and charge current at your fingertips, while also granting access to historical yield data and advanced settings—all through a crisp monochrome LCD with backlight.

Overview

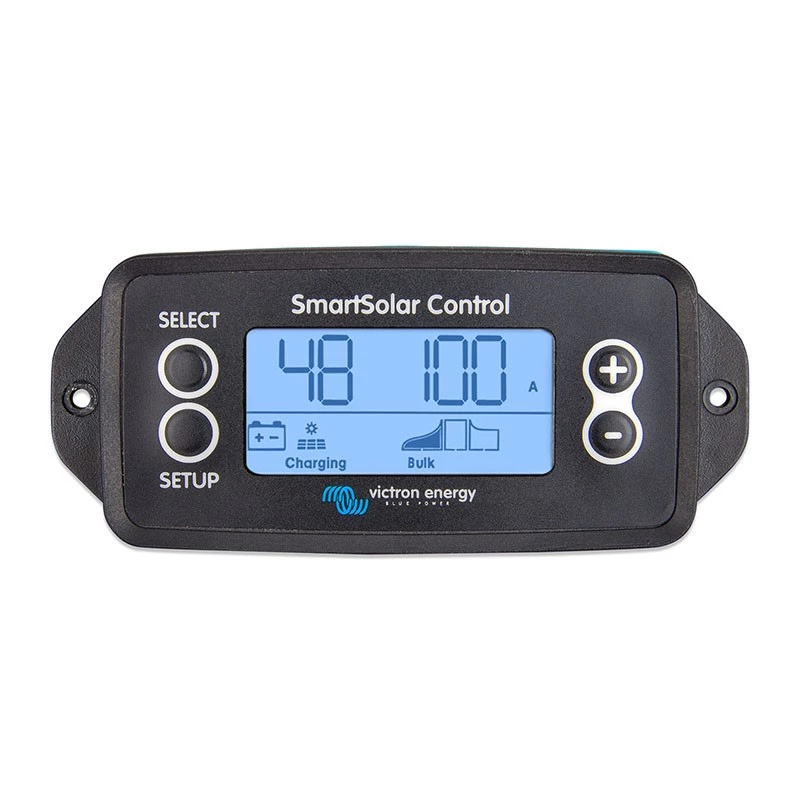

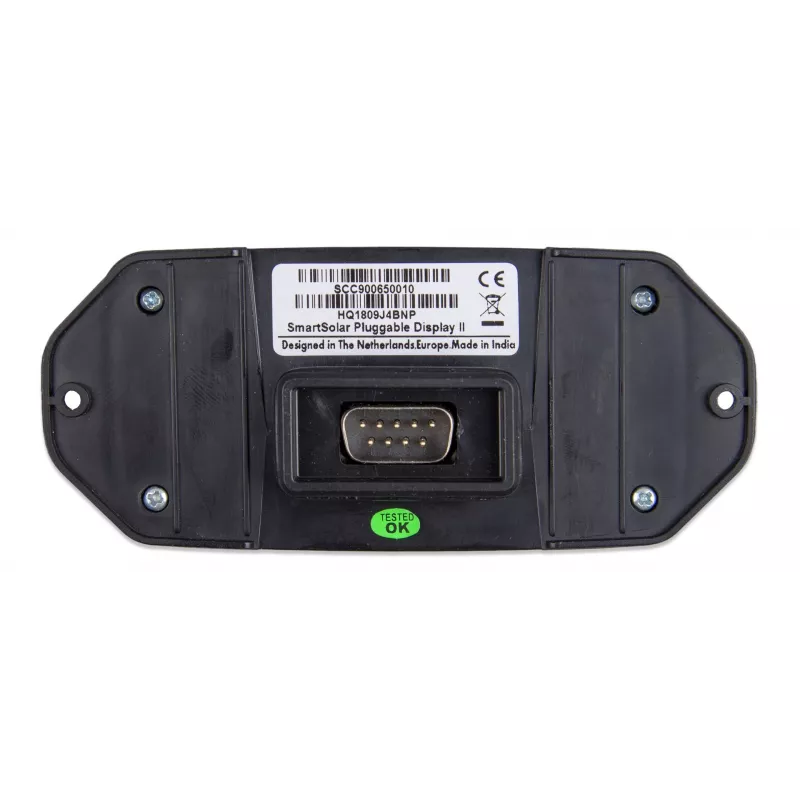

The SmartSolar Control Screen is a dedicated remote panel designed for seamless integration with Victron SmartSolar MPPT charge controllers equipped with a VE.Direct port. It connects via the included 1.5 m VE.Direct cable, drawing power directly from the charge controller—no separate power supply needed. The compact 68 x 68 mm front panel fits neatly into a 52 mm cut-out, making it ideal for dashboards, control cabinets, or anywhere you need convenient monitoring.

What stands out

• Real-time monitoring of PV power, battery voltage, charge current, and more
• Historical data display: total yield, maximum power, and other statistics
• Adjust settings on the fly: battery parameters, load output, and street light function
• Backlit monochrome LCD for clear visibility in all lighting conditions
• Flush mount design with only 20 mm depth behind the panel
• Powered directly from the charge controller via VE.Direct—no extra wiring

Technical details

• Compatibility: Victron SmartSolar MPPT charge controllers with VE.Direct port
• Display: Monochrome LCD with backlight
• Connectivity: VE.Direct port (cable included, 1.5 m)
• Power source: Powered via VE.Direct (from charge controller)
• Mounting: Flush mount, front panel 68 x 68 mm, cut-out diameter 52 mm, depth 20 mm
• Operating temperature: -20 to +50 °C
• Front enclosure protection: IP20
• User interface: Push buttons
• Colour: Black

Our verdict

The SmartSolar Control Screen is the perfect companion for your Victron MPPT controller, offering a simple yet powerful way to monitor and adjust your solar system without needing a smartphone or computer. Its compact flush-mount design and direct VE.Direct connectivity make installation a breeze.
