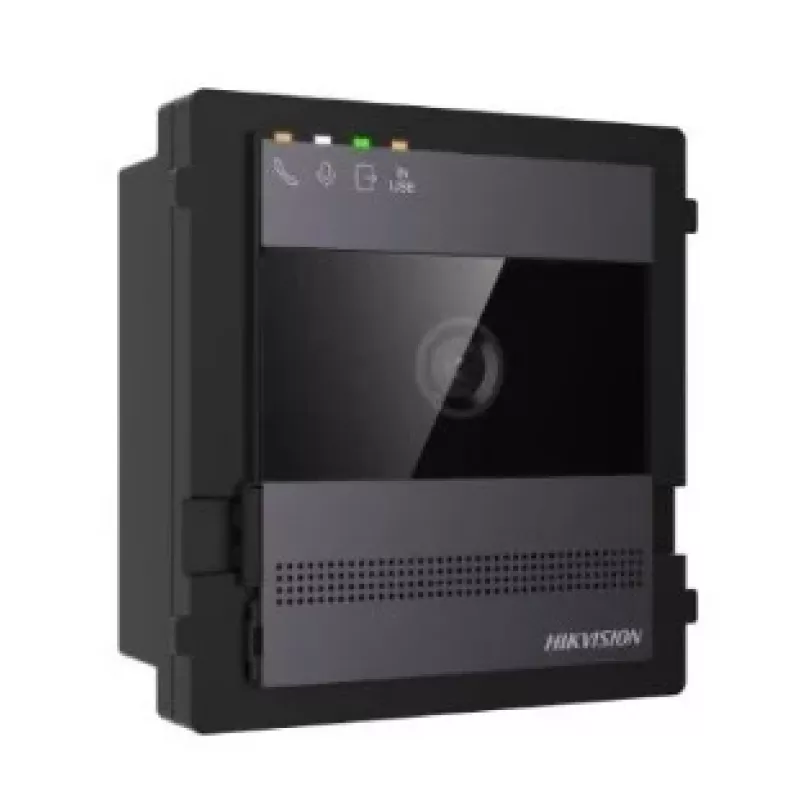

Videocitofono Hikvision DS-KD7003EY-IME2 2 MP alluminio nero

The Hikvision DS-KD7003EY-IME2 2 MP Aluminium Black is a 2-megapixel video intercom outdoor station designed for apartment retrofit and new installations where a compact, weather-resistant door station is required. The unit features an aluminium body, a wide-angle camera with 132° horizontal and 82° vertical field of view, an omnidirectional microphone for clear audio pickup, and IP65 protection for reliable outdoor operation. Built-in memory includes 4000 MB flash and 256 MB internal memory to support device functions and storage of basic data. The device is compatible with 2-wire HD transmission for simplified installation and reuse of existing wiring.

Advantages

The DS-KD7003EY-IME2 offers easy retrofit capability by reusing existing two-wire infrastructure, reducing installation time and cost. Plug-and-play readiness enables quick power-on setup with basic configuration via DEC knobs and extended setup through mobile AP mode for advanced parameters. The combination of a wide-angle 2 MP camera and omnidirectional microphone provides clear video and reliable audio for visitor identification. IP65-rated aluminium construction makes the unit durable for outdoor conditions while keeping a compact profile.

Suitable for

• Apartment building intercom retrofit projects
• Small multi-tenant residential entrances
• Outdoor door entry points requiring weatherproof hardware
• Installations where existing two-wire cabling should be reused

Key specifications

• Image sensor resolution: 2 megapixels
• Camera viewing angle: 132° horizontal, 82° vertical
• Body material: aluminium
• Audio: omnidirectional microphone (built-in)
• Protection rating: IP65 (suitable for outdoor use)
• Memory: 4000 MB flash, 256 MB internal
• Wiring: 2-wire HD transmission support

How to use

Mount the DS-KD7003EY-IME2 at the entry location using the recommended mounting accessories and wiring path. Connect power and the existing two-wire intercom line according to the installation manual. Perform initial basic configuration by turning the DEC knobs to set room or building numbers and other primary parameters. For advanced configuration—such as activating devices, adding user data, issuing access credentials, and network adjustments—connect a mobile device to the unit using AP mode and complete settings through the mobile web interface. Verify camera angle and audio pickup during commissioning and adjust as needed.

Recommendations

For reliable long-term operation, install the unit under appropriate shelter if possible, ensure cable terminations are secure and protected from moisture, and schedule periodic checks of the camera lens and microphone. Use the mobile AP mode for firmware updates and advanced configuration to keep the system current and secure.
