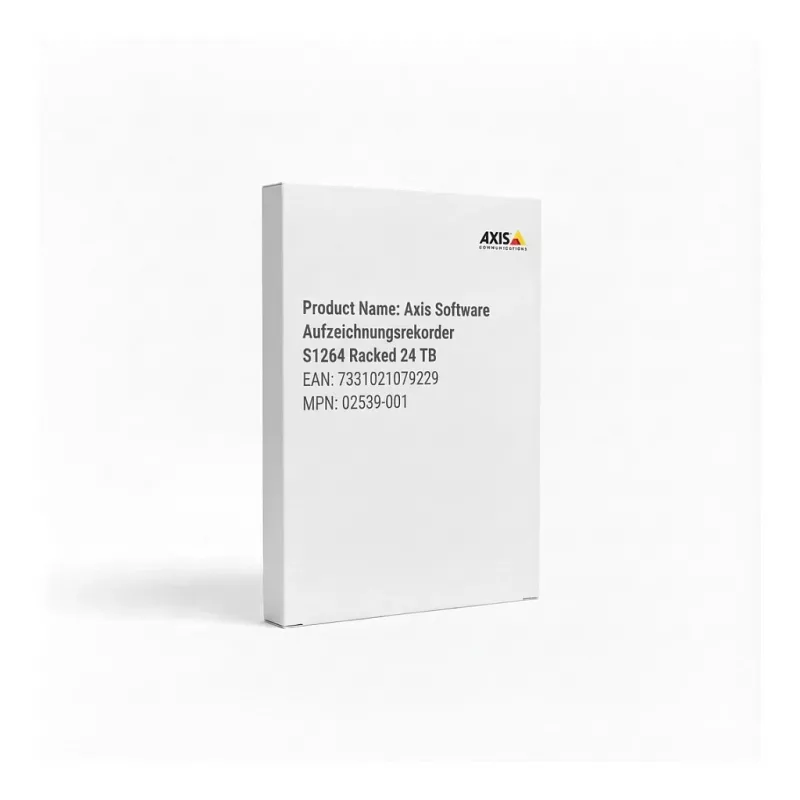

AXIS Camera Station S1264 videoregistratore di rete 02539-001, 24 TB, montaggio a rack, Windows 10 IoT Core, RAID 0/1/5/6/10, 100–240V, 721,6×482×87 mm, grigio

AXIS 02539-001 is a network video recorder with Windows 10 IoT Core preinstalled, designed for continuous video storage in surveillance systems. The unit supports multiple RAID configurations (0, 1, 5, 6, 10) to balance performance and redundancy, accepts 100–240 V AC input (50–60 Hz), and is housed in a grey enclosure sized 721.6 × 482 × 87 mm with a weight of 20.8 kg. It ships with AXIS Camera Station licenses and preconfigured software to simplify deployment.

Advantages

The recorder provides scalable storage options and multiple RAID levels to suit different redundancy and performance needs. A Trusted Platform Module (FIPS 140-2 level 2 certified) secures cryptographic keys and certificates. The product is available in three storage variants and includes AXIS Camera Station licenses, a unified price list for supported products, and optional services such as Keep Your Hard Drive, Next Business Day Onsite Support, and a 5-year warranty.

Suitable for

• Continuous video recording for surveillance systems
• Server-rack installations in security or IT rooms
• Deployments requiring data redundancy and high availability
• Installations needing preconfigured software and camera licenses

Key specifications

• Model: AXIS 02539-001
• Operating system: Windows 10 IoT Core (preinstalled)
• RAID support: 0, 1, 5, 6, 10
• Power input: 100–240 V AC, 50–60 Hz
• Dimensions (W×D×H): 721.6 × 482 × 87 mm
• Weight: 20.8 kg
• Colour: Grey
• Includes: AXIS Camera Station licenses, preconfigured software

How to use

Install the unit in a compatible server rack and connect it to mains power (100–240 V AC). Configure RAID according to your performance and redundancy requirements (choose from 0, 1, 5, 6, 10), complete Windows 10 IoT Core initial setup if required, and activate the included AXIS Camera Station licenses. Connect network cameras and storage clients to the recorder and verify recording, retention, and access settings through the preconfigured software interface.

Recommendations

Choose the RAID level based on whether priority is performance (RAID 0), redundancy (RAID 1, 6, 10), or a balance of both (RAID 5). Use the Trusted Platform Module for secure key storage and enable onsite support or extended warranty services if continuous operation and rapid hardware replacement are critical.
