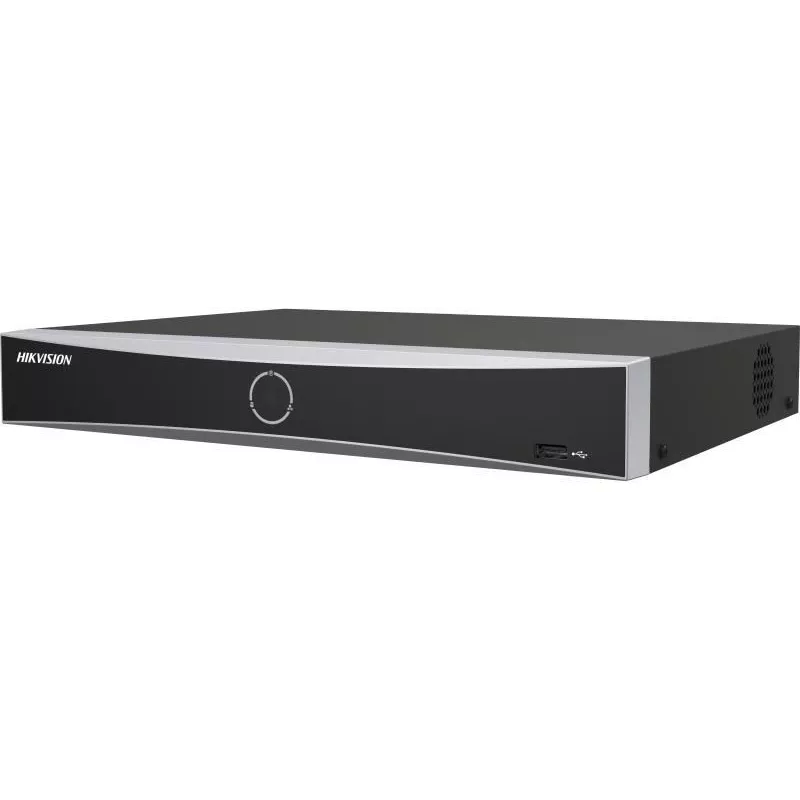

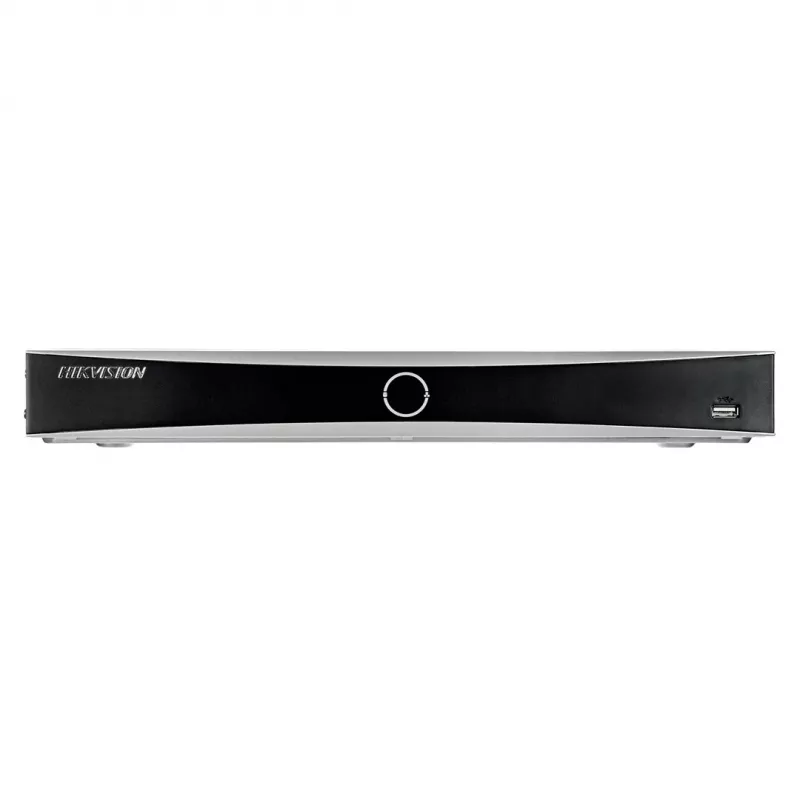

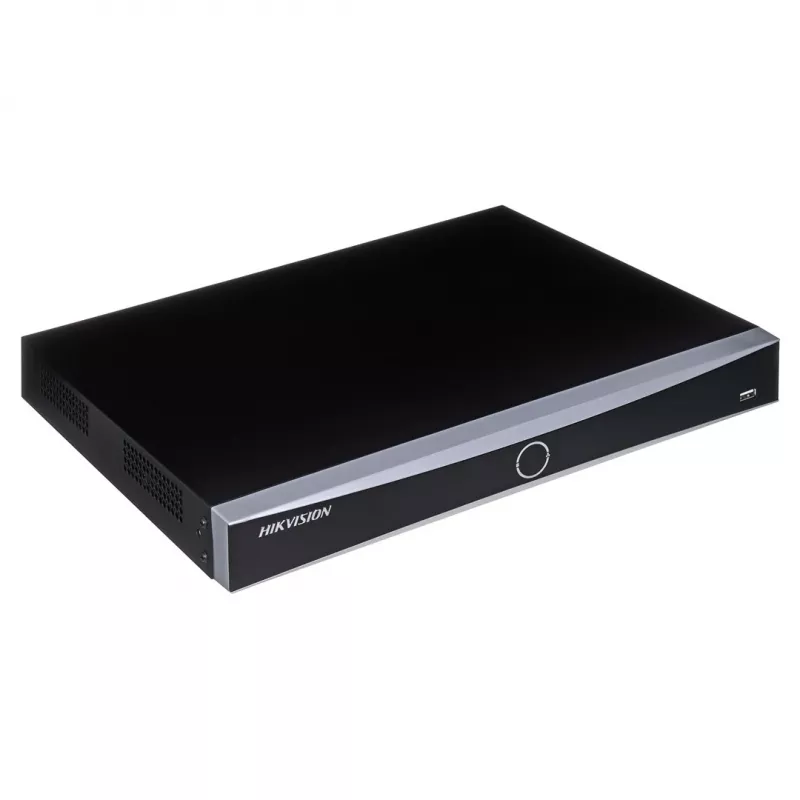

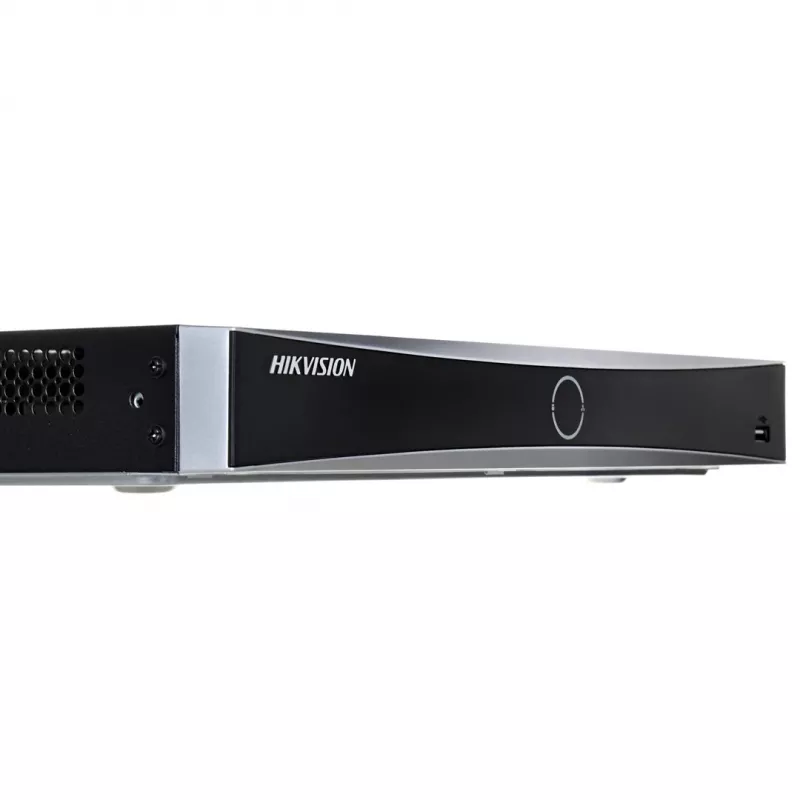

Videoregistratore di rete Hikvision DS-7616NXI-K1(D) 16 canali supporto 4K

Tipas: Tinklinis įrašymo įrenginys (NVR) Prekės ženklas: Hikvision Modelis: DS-7616NXI-K1(D) Kanalai: 16 SATA palaikymas: 1 HDD Maksimali talpa: Iki 16TB Vaizdo išėjimai: VGA, HDMI Kompresija: H.265+ Įvesties pralaidumas: 160 Mbps AcuSearch - žmonių paieška pagal požymius Aprašymas: Išmanioji analizė • AI pagal įrenginį: Facial recognition, perimeter protection, motion detection 2.0 • AI pagal kamerą: Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA Veido atpažinimas • Veido nuotraukos palyginimas: 4-ch • Veido aptikimas ir analizė: Face picture comparison, human face capture, face picture search • Veido paveikslų biblioteka: Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture < /= 4 MB, total capacity < /= 1 GB) • Veido aptikimas ir analizės našumas: 1-ch, 8 MP Judesio aptikimas 2.0 • Pagal kamerą: All channels Perimetro apsauga • Pagal įrenginį: 1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm • Pagal kamerą: All channels Vaizdas ir garsas • IP vaizdo įrašų įvestis: 16-ch • Įeinantis pralaidumas: 160 Mbps • Išeinantis pralaidumas: 80 Mbps • HDMI išvestis: 1-ch, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz • VGA išvestis: 1-ch, 1920 x 1080/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz • Vaizdo išvesties režimas: HDMI/VGA simultaneous output • CVBS išvestis: N/A • Garso išvestis: 1-ch, RCA (Linear, 1 Kiloohm) • Dvipusis pokalbis: 1-ch, RCA (2.0 Vp-p, 1 Kiloohm, using the audio input) Iškodavimas • Vaizdo iškodavimo formatas: H.265/H.265+/ H.264+/H.264 • Įrašymo raiška: 12 MP/ 8 MP/ 6 MP/ 5 MP/ 4 MP/ 3 MP/ 1080p/ UXGA/ 720p/ VGA/ 4CIF/ DCIF/ 2CIF/ CIF/ QCIF. • Sinchroninis atkūrimas: 16-ch • Iškodavimo pajėgumas AI on: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps) AI off: 2-ch@12 MP (30 fps)/4-ch@8 MP (30 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps) • Srauto tipas: Video, Video & Audio • Garso suspaudimas: G.711ulaw/ G.711alaw/ G.722/ G.726/ AAC Internetas • Nuotolinis prisijungimas: 128 • API: ONVIF (profile S/G); SDK; ISAPI • Suderinama naršyklė: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version • Protokolai: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS • Tinklo sąsaja: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface Sąsajos • SATA: 1 SATA interface • Talpa: Up to 16 TB capacity for each HDD • USB sąsaja: Front panel: 1 x USB 2.0; Rear panel: 1 x USB 2.0 • Ispėjamojo signalo įvestis/išvestis: N/A Pagrindinis • GUI kalba: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian • Maitinimas: 12 VDC, 1.5 A • Energijos sunaudojimas: < /=10 W (without HDD) • Darbinė temperatūra: -10 °C to 55 °C (14 °F to 131 °F) • Atsparumas drėgmei: 10% to 90% • Dydis: 320 mm x 240 mm x 48 mm (12.6x 9.4 x 1.9) • Svoris: < /= 1 kg (without HDD, 2.2 lb.) Sertifikatai • CE: EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 • Sertifikatai: CE KC WEEE REACH ROHS BIS CB RCM IC LOA UKCA

How to use

Install the NVR in a ventilated rack or shelf and connect it to the local network via Ethernet. Attach compatible IP cameras to the same network and register them with the recorder using the NVR's web interface or local GUI. Configure recording schedules, motion detection sensitivity and storage allocation through the system menus. Use the playback function to review recorded footage by selecting time ranges or event-based searches. For remote access, set up network parameters and user accounts, then connect via the approved client software or mobile application.

Recommendations

For reliable 4K multi-channel recording, use network infrastructure with sufficient bandwidth and install appropriately rated hard drives for surveillance workloads. Regularly back up critical footage and keep firmware updated to maintain compatibility and security. Configure motion detection and recording schedules to optimize storage usage while ensuring required coverage.
