VIDOS 2IP K-IP-2 convertitore per videocitofono a 2 fili VIDOS DUO

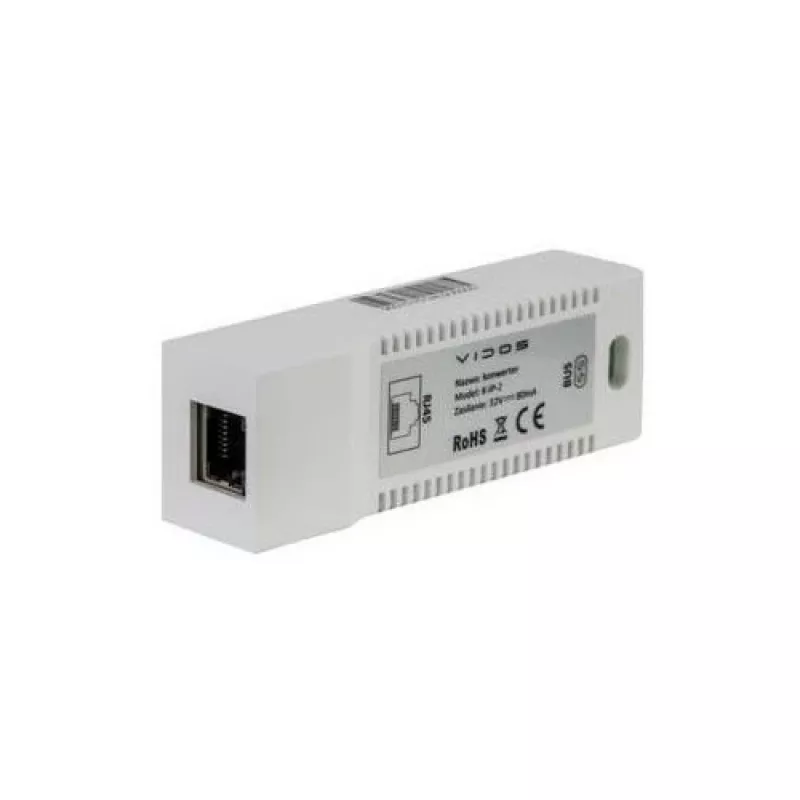

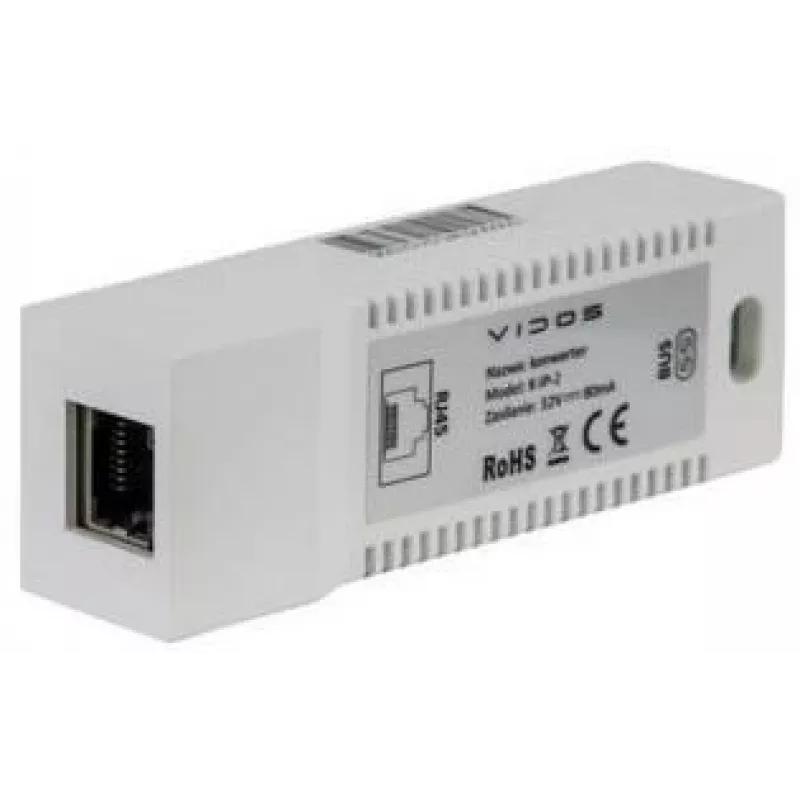

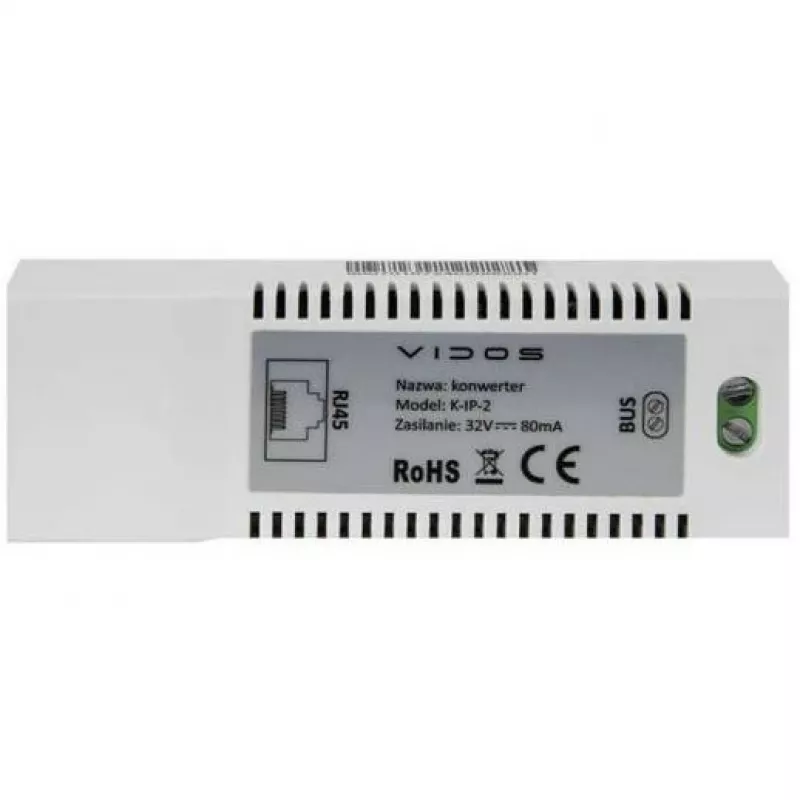

The VIDOS 2IP K-IP-2 converter is a DIN rail-mounted interface that connects the VIDOS DUO 2-wire intercom system to an IP network. It enables remote door opening, video monitoring, and call forwarding to up to four smartphones via the VIDOS DUO App (iOS/Android).

Advantages

Seamless integration of analog 2-wire intercom into IP networks; supports up to 4 mobile devices; easy DIN rail installation; low power consumption (max 3W).

Suitable for

• Residential and commercial buildings using VIDOS DUO intercom systems
• Upgrading existing 2-wire intercoms with IP-based remote access
• Installations requiring compact DIN rail components

Key specifications

• Network interface: 1x RJ45 Ethernet (10/100 Mbps)
• Power supply: 24V DC (from VIDOS DUO bus or external adapter)
• Power consumption: max. 3W
• Mounting: DIN rail (2 modules wide)
• Operating temperature: -10°C to +50°C
• Housing material: Plastic
• LED indicators: Power, Network Status, System Status
• Bus connections: 1x VIDOS DUO 2-wire bus input

Recommendations

For optimal performance, use with VIDOS DUO intercom stations and ensure network connectivity via a stable Ethernet connection. Configure via web interface or mobile app.
