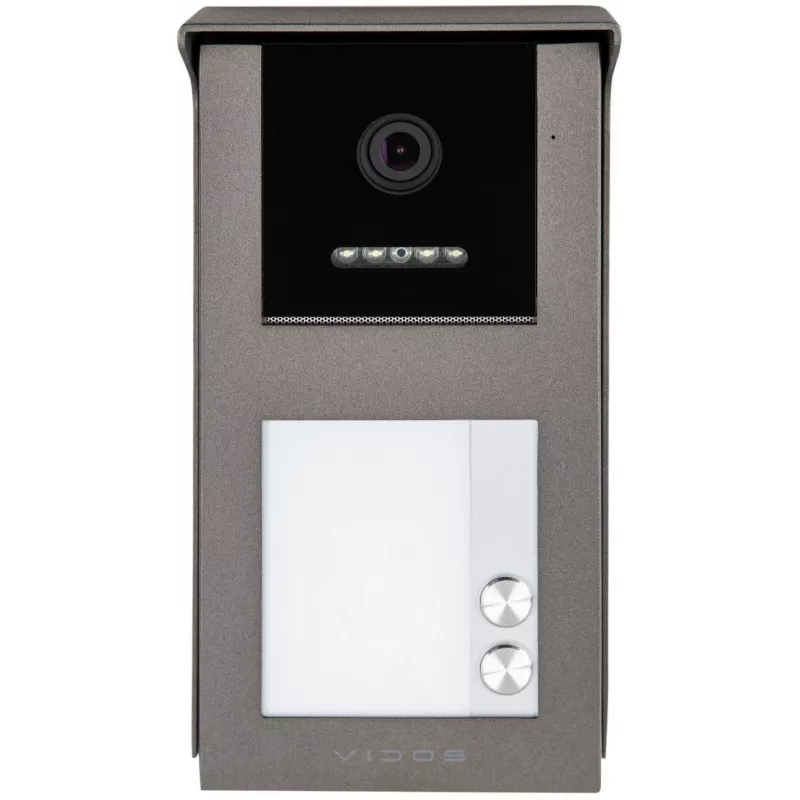

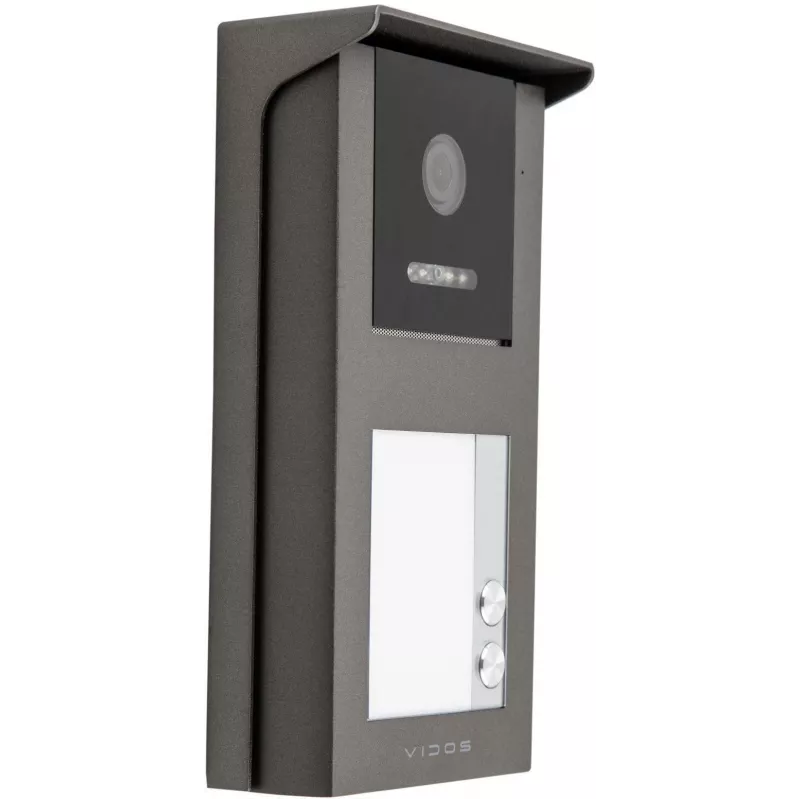

VIDOS IPX S101-2 Postazione esterna - Videocitofono IP 2MP con RFID, PoE, IP65

The VIDOS IPX S101-2 Outdoor Panel is a professional-grade IP video door station designed for single-family homes. Part of the VIDOS IPX system, it offers high-definition 2MP video, two-way audio, and integrated RFID access control, all in a vandal-resistant, weatherproof housing.

Advantages

Reliable outdoor communication with crystal-clear 1080p video and echo-cancelling audio. The built-in RFID reader (125kHz EM) enables keyless entry, while PoE simplifies installation. IP65 and IK07 ratings ensure durability in harsh conditions.

Suitable for

• Single-family residential entry points
• Secure access control for gates and doors
• Integration with VIDOS IPX intercom systems

Key specifications

• Camera: 2MP (1080p Full HD) with 170° horizontal viewing angle
• Night Vision: IR LED illumination
• Connectivity: IP (Ethernet) with PoE or 12V DC power

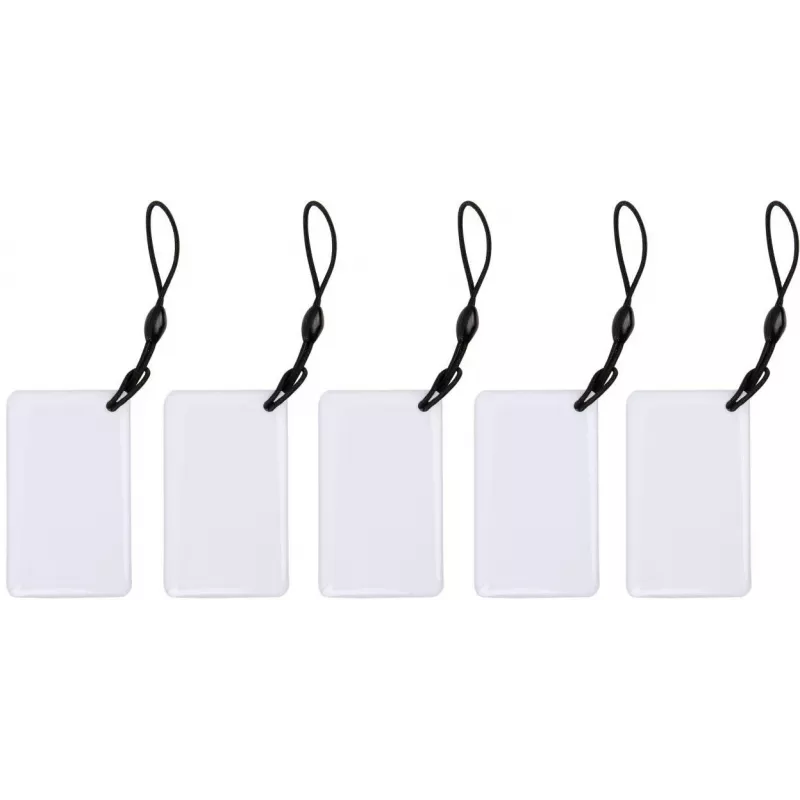

• Access Control: Built-in RFID reader (125kHz EM)
• Relay Output: 1 for door/gate control
• Audio: Two-way with echo cancellation
• Video Compression: H.264
• Network Protocols: TCP/IP, SIP

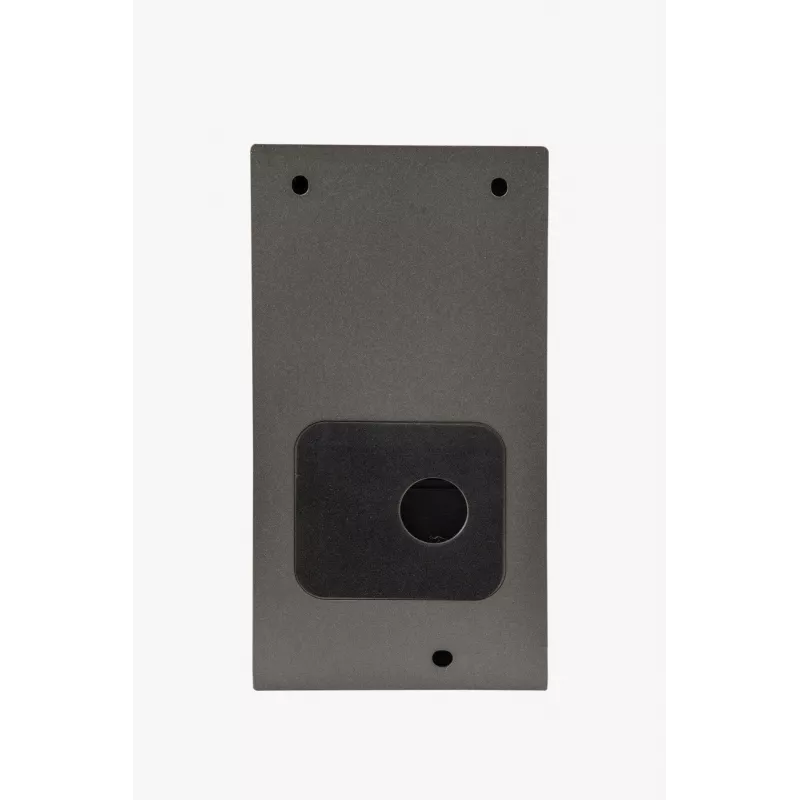

• Mounting: Surface mount
• Protection: IP65 (dust/water), IK07 (vandal resistance)
• Housing: Aluminum alloy
• Operating Temperature: -30°C to +50°C
• Mobile App: VIDOS IPX App support

Recommendations

For optimal performance, pair with a VIDOS IPX indoor station and ensure PoE switch or injector is used. Compatible with standard 125kHz EM tags.
