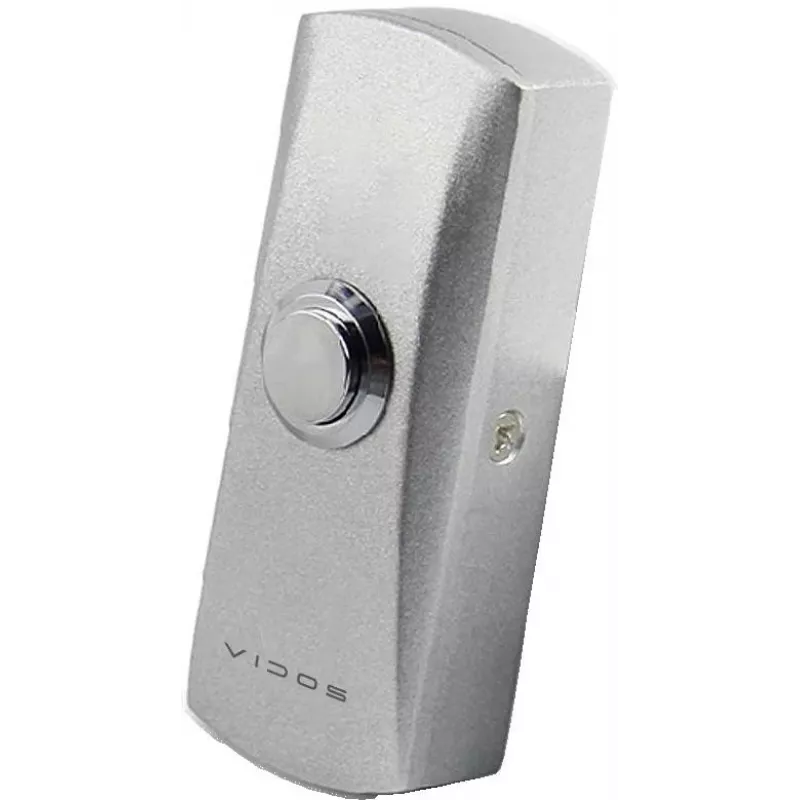

VIDOS OP03 Pulsante di uscita acciaio inox argento montaggio da parete

The VIDOS OP03 is a high-quality exit button designed for access control systems, providing reliable and secure door release functionality. Crafted from durable stainless steel with a sleek silver finish, this surface-mount push button is built for indoor use and offers both NO and NC contact configurations, making it versatile for various security setups.

Advantages

Robust stainless steel construction ensures long-lasting durability and resistance to wear. The momentary push button mechanism provides a tactile response, while the screw terminal connections simplify installation. With a mechanical durability of 500,000 cycles, the OP03 delivers consistent performance over time.

Suitable for

• Access control systems in commercial buildings, offices, and residential complexes
• Door release applications requiring a simple, reliable exit button
• Indoor installations where a compact and discreet design is needed

Key specifications

• Product Type: Exit Button
• Activation Type: Push Button (Momentary)
• Contact Configuration: NO/NC/COM
• Maximum Current Rating: 3 A
• Maximum Voltage Rating: 36 V DC
• Material: Stainless Steel
• Mounting Type: Surface Mount
• Durability (Mechanical): 500,000 cycles
• Operating Temperature Range: -20°C to +50°C
• Operating Humidity: 0-95% (non-condensing)
• Color: Silver
• Connection Type: Screw Terminals
• Indicator: No LED Indicator
• Installation Environment: Indoor
• Housing Material: Stainless Steel

Recommendations

For optimal performance, pair the VIDOS OP03 with compatible access control panels and ensure proper wiring according to the contact configuration. Regular testing is recommended to maintain reliability.
