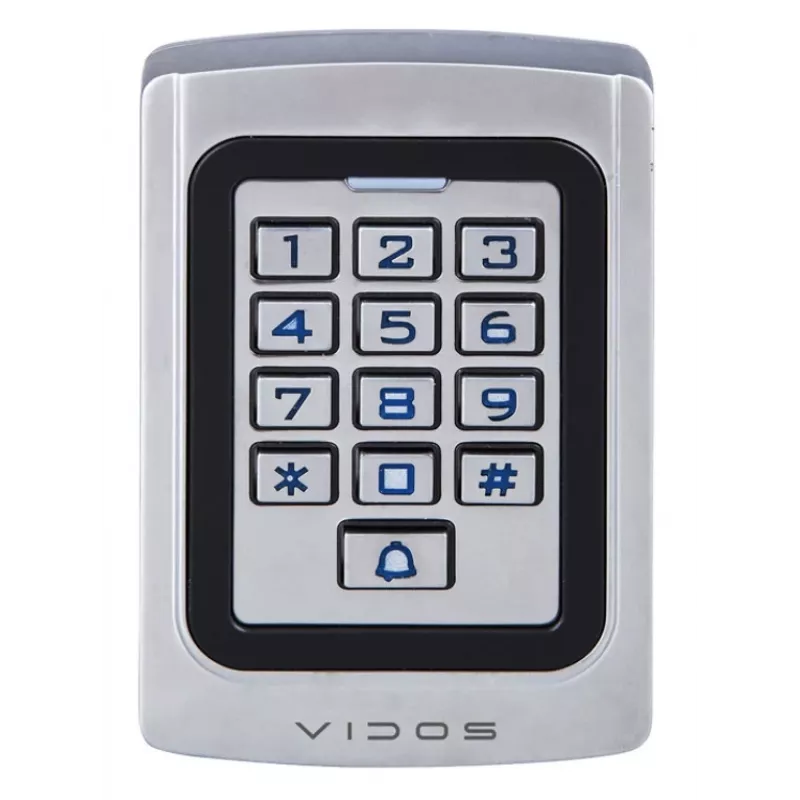

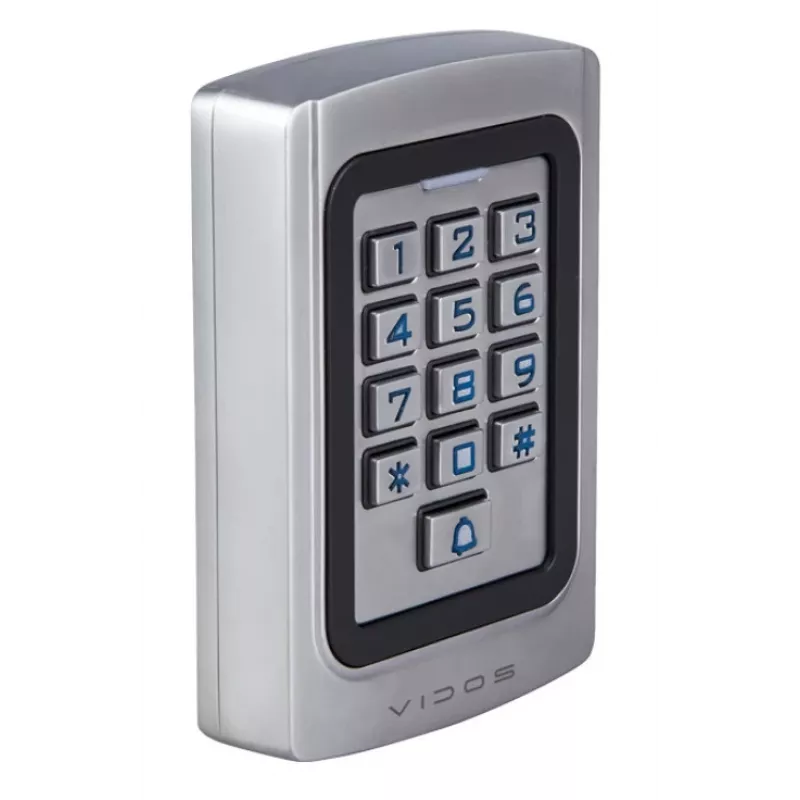

VIDOS Serratura a combinazione con lettore ZS41-L - Controllo accessi standalone, PIN e carta, IP65

The VIDOS Combination Lock with ZS41 Reader is a robust standalone access control solution designed for secure and convenient entry management. Combining a backlit touch keypad with an EM-ID (125kHz) card reader, it offers flexible authentication via PIN, card, or card+PIN. Ideal for commercial and residential applications, this lock features a durable zinc alloy casing with IP65 dustproof and water-resistant protection, ensuring reliable performance in various environments.

Advantages

• Versatile authentication: Choose between PIN, card, or combined card+PIN modes for enhanced security.
• High user capacity: Supports up to 2000 users, suitable for small to medium-sized facilities.
• Durable construction: Zinc alloy casing with IP65 rating withstands harsh weather conditions.
• Easy programming: Keypad programming allows quick setup and adjustments without additional software.
• Comprehensive security: Includes tamper alarm, forced entry alarm, and adjustable door open time (0-99 seconds).

Suitable for

• Office buildings and private offices
• Warehouses and storage facilities
• Residential gates and doors
• Industrial access points
• Any location requiring secure, keyless entry

Key specifications

• Access Control Type: Standalone
• Authentication Methods: Card, PIN, Card + PIN
• Card Type Support: EM-ID (125kHz)
• User Capacity: 2000 users
• Keypad Type: Backlit Touch Keypad
• Operating Voltage: DC 12V
• Current Consumption: Standby <30mA, Operating <100mA
• Relay Output: 1x (NO/NC/COM)
• Wiegand Interface: Wiegand 26/34-bit Output
• Input Ports: 1x Door Sensor, 1x Exit Button
• Material: Zinc Alloy Casing
• Ingress Protection: IP65
• Operating Temperature: -20°C to 60°C
• Operating Humidity: 10% to 90% RH (non-condensing)
• Adjustable Door Open Time: 0-99 seconds
• Alarm Output: Yes (Tamper, Forced Entry)
• Anti-tamper Function: Yes
• Programming Method: Keypad Programming

Recommendations

For optimal security, pair the lock with a compatible 12V power supply and consider using the Wiegand output for integration with larger access control systems. Regularly test the tamper alarm and ensure the keypad is clean for reliable touch response.
