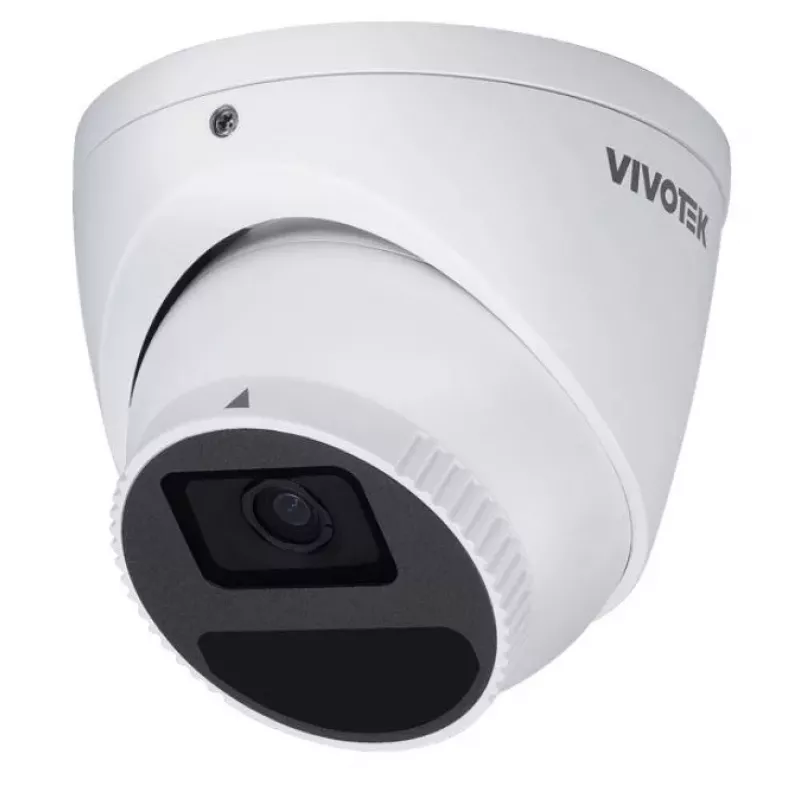

VIVOTEK IT9380-HV-V2 C-SERIE Telecamera IP Turret 5MP

The VIVOTEK IT9380-HV-V2 is a high-performance 5-megapixel turret IP camera from the C-SERIE, designed for reliable outdoor surveillance. Featuring a 1/2.7" progressive CMOS sensor, it delivers crisp 2560x1944 resolution at 30 fps with WDR Pro technology for clear imaging in challenging lighting conditions. The camera is equipped with a fixed 2.8mm lens (f/1.6) providing a 103° horizontal field of view, and built-in IR LEDs with up to 30m range for 24/7 monitoring. Its IP66-rated weatherproof and IK10-rated vandal-resistant housing ensures durability in harsh environments. Power is supplied via PoE (IEEE 802.3af/at) or DC 12V, and it includes a built-in microphone, MicroSD card slot, and advanced features like Smart Stream III and Trend Micro IoT Security.

Advantages

This camera offers exceptional image quality with 5MP resolution and WDR Pro, ensuring clear footage in high-contrast scenes. The robust IP66 and IK10 ratings make it ideal for outdoor and high-risk areas. Smart Stream III optimizes bandwidth and storage without sacrificing detail, while Trend Micro IoT Security protects against cyber threats. Easy installation with PoE support reduces cabling costs.

Suitable for

• Outdoor perimeter surveillance
• Parking lots and building entrances
• Retail stores and warehouses
• Industrial facilities

Key specifications

• Sensor: 1/2.7" Progressive CMOS
• Max Resolution: 2560x1944 (5MP)
• Frame Rate: 30 fps @ 2560x1944
• Lens: Fixed 2.8mm, f/1.6
• IR Range: Up to 30m
• Video Compression: H.265, H.264, MJPEG
• WDR: WDR Pro
• Weather Resistance: IP66
• Vandal Resistance: IK10
• Power: PoE (802.3af/at), DC 12V
• Storage: MicroSD slot
• Audio: Built-in microphone
• Network: 10/100 Mbps Ethernet
• Operating Temperature: -40°C to 60°C

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af/at. Pair with VIVOTEK's VAST or ST7501 recording software for advanced management.
