VOLTCRAFT DMA-1LS 16 adattatori di misura grigio scuro 16 A CAT III 300 V VC-16041160

Rated for CAT III 300 V and 16 A, the VOLTCRAFT DMA-1LS 16 measuring adapter safely taps into the power line to measure current and power consumption of connected devices without interrupting operation. Simply plug it between the Schuko socket and the appliance, then connect your multimeter or power meter via the 4 mm safety banana jacks.

Overview

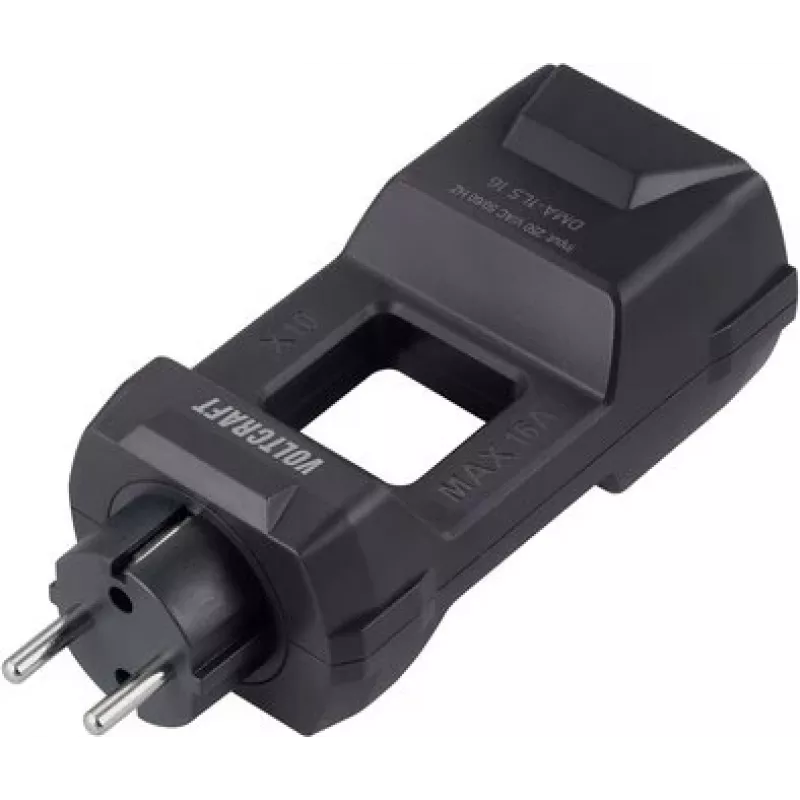

The DMA-1LS 16 is a robust inline measuring adapter designed for single-phase AC systems. It features a Schuko plug (CEE 7/7) on the input and a Schuko socket (CEE 7/3) on the output, allowing the device under test to be powered while measurements are taken. The integrated measurement circuit provides isolated 4 mm safety banana jacks for current and voltage sensing, compatible with standard multimeters and power analyzers.

What stands out

• Safety first: CAT III 300 V rating ensures safe measurements in building installations.
• High current capacity: handles loads up to 16 A, suitable for most household and light industrial appliances.
• Convenient inline design: no need to cut cables or interrupt the circuit; just plug and measure.
• Universal compatibility: standard 4 mm banana jacks work with a wide range of test instruments.
• Durable construction: dark grey robust plastic housing built for everyday use.

Technical details

• Product type: Measuring adapter
• Max. rated current: 16 A
• Max. rated voltage: 300 V AC
• Safety category: CAT III 300 V
• Input connection: Schuko plug (CEE 7/7)
• Output connection: Schuko socket (CEE 7/3)
• Measurement connections: 4 mm safety banana jacks
• Measured parameters: Current (AC), Power (AC)
• Number of phases: Single-phase
• Protection class: IP20
• Colour: Dark grey
• Housing material: Robust plastic
• Operating environment: Indoor use

Our verdict

The VOLTCRAFT DMA-1LS 16 is an essential tool for electricians, technicians, and serious DIYers who need to monitor power consumption or diagnose electrical issues safely and efficiently. Its high safety rating and sturdy build make it a reliable choice for professional use.
