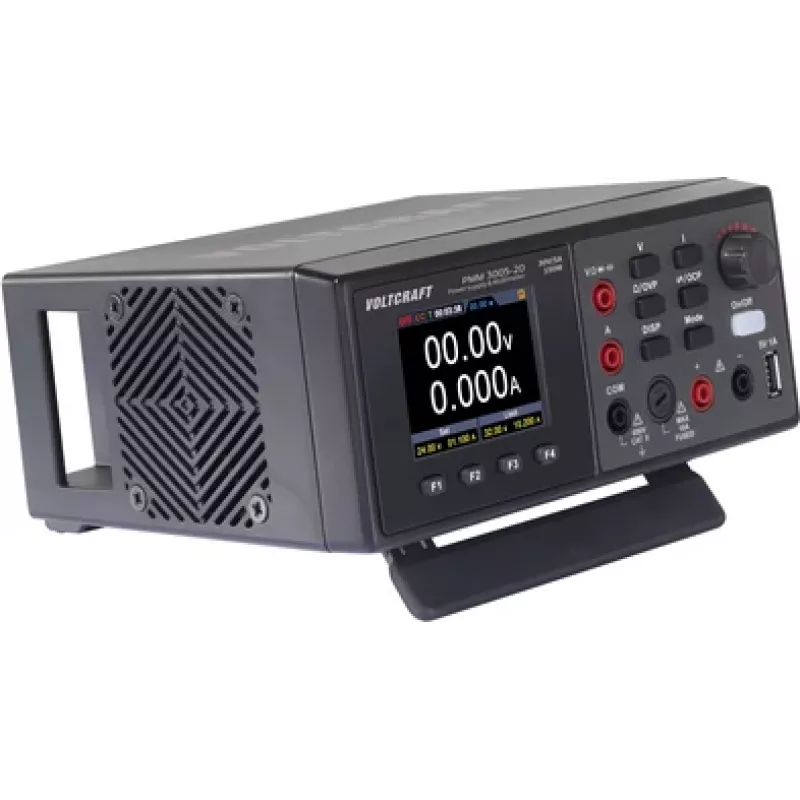

Voltcraft PMM 3005-20 multimetro digitale con alimentatore integrato, CAT II 600 V, 20000 count, 0-30 V / 5 A

With a 20000-count display and CAT II 600 V safety rating, the Voltcraft PMM 3005-20 combines a precision digital multimeter and a regulated DC power supply in one unit, delivering 0-30 V and up to 5 A.

Overview

The PMM 3005-20 is a versatile bench instrument for electronics labs, service workshops and education. The integrated power supply operates in constant voltage (CV) and constant current (CC) modes, while the multimeter section measures DC/AC voltage, DC/AC current, resistance, capacitance and frequency. Auto-range, data hold and a backlit LCD simplify readings, and the USB interface allows PC connectivity.

What stands out

• 20000-count digital multimeter with CAT II 600 V safety rating
• Integrated 0-30 V / 5 A DC power supply with CV/CC regulation
• Measures voltage, current, resistance, capacitance and frequency
• Auto-range, data hold and backlit display
• USB interface for remote control and data logging

Technical details

• DC voltage range: 200 mV – 600 V
• AC voltage range: 200 mV – 600 V
• DC current range: 200 µA – 10 A
• AC current range: 200 µA – 10 A
• Resistance range: 200 Ω – 40 MΩ
• Capacitance range: 20 nF – 4000 µF
• Frequency range: 20 Hz – 10 MHz
• Diode test and continuity test with acoustic signal
• Power source: mains powered

Our verdict

The PMM 3005-20 is a practical 2-in-1 tool for anyone who needs both precise measurements and a stable DC source without cluttering the bench.
