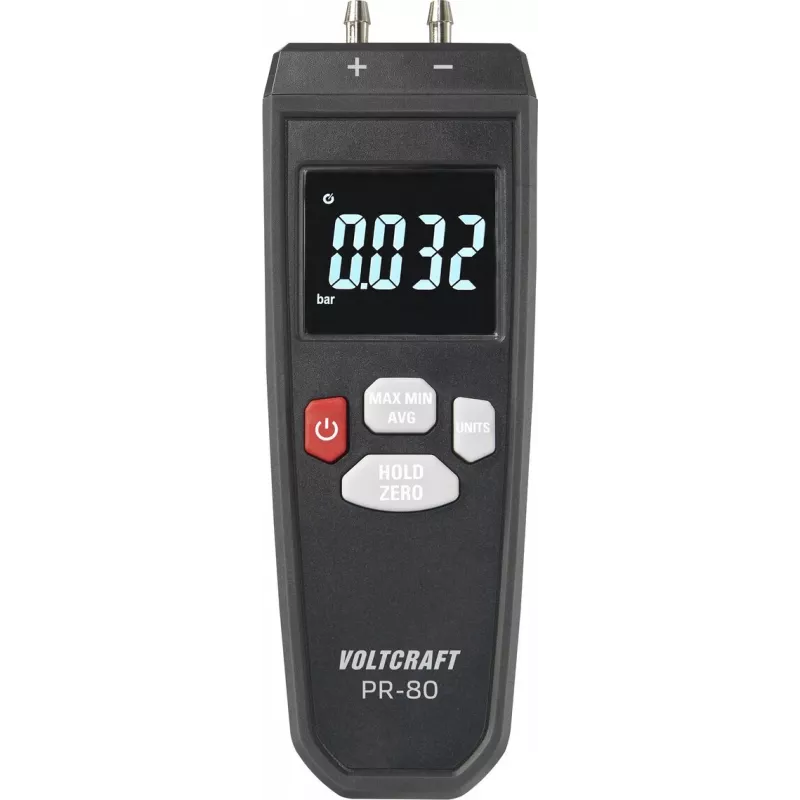

VOLTCRAFT PR-80 misuratore di pressione differenziale ±0,137 bar, 11 unità, LCD retroilluminato, data hold, min/max/avg, aria e gas non corrosivi VC-13101370

The VOLTCRAFT PR-80 stands apart from ordinary manometers by combining laboratory-grade differential pressure measurement with field-ready ruggedness. Its ±0.3% full-scale accuracy and 0.001 bar resolution let you quantify pressure drops across filters, verify cleanroom pressure cascades, or balance HVAC ducts with confidence—all from a single handheld device that reads 11 different pressure units.

Highlights

• Measures differential pressure from ±0.137 bar (±137 mbar) with selectable units: psi, inH2O, bar, mbar, kPa, inHg, mmHg, ozin², ftH2O, cmH2O, kgcm²
• High accuracy of ±0.3% F.S. at 25 °C and fine resolution down to 0.001 bar (unit dependent)
• Backlit LCD with Min/Max/Avg recording, Data Hold, and one-touch zero adjustment
• Auto power off after 20 minutes (can be disabled) and 10 bar overload protection
• Supplied with two 4 mm connection hoses, 9 V battery, carrying case, and user manual

In daily use

Connect the two silicone hoses to the high and low pressure ports and the PR-80 instantly displays the differential. The backlit screen remains readable in dim mechanical rooms, while the Min/Max/Avg function captures fluctuating pressures over time. For long-term monitoring, disable auto power off and let the meter log for up to 100 hours on a single 9 V block battery. The robust housing tolerates temperatures from 0 to 50 °C and humidity up to 80% RH, making it suitable for both bench and field work.

Full specifications

• Measurement range: ±0.137 bar (±137 mbar, ±2 psi, ±55.4 inH2O, ±13.79 kPa, ±103.4 mmHg, ±5.54 inHg, ±2000 ozin², ±17.25 ftH2O, ±200 cmH2O, ±0.14 kgcm²)
• Accuracy: ±0.3% F.S. at 25 °C
• Resolution: 0.001 bar / 0.01 psi / 0.01 kPa / 0.1 inH2O (unit dependent)
• Response time: 0.5 seconds
• Overload protection: 10 bar (1000 kPa / 145 psi)
• Measurement medium: air and non-corrosive gases
• Hose connections: 2x 4 mm inner diameter
• Display: LCD with backlight
• Functions: Min/Max/Avg, Data Hold, Zero Adjustment, Auto Power Off
• Power supply: 1x 9 V block battery (6F22)
• Battery life: approx. 100 hours (without backlight)
• Operating temperature: 0 to 50 °C
• Storage temperature: -10 to 60 °C
• Operating humidity: 10 to 80% RH (non-condensing)
• Auto power off: after 20 minutes (can be disabled)
• Included accessories: 2 connection hoses, 9 V battery, carrying case, user manual

Final note

For technicians who need precise, repeatable differential pressure readings without dragging a benchtop manometer to every job, the PR-80 delivers the accuracy and versatility of a lab instrument in a pocket-sized package.
