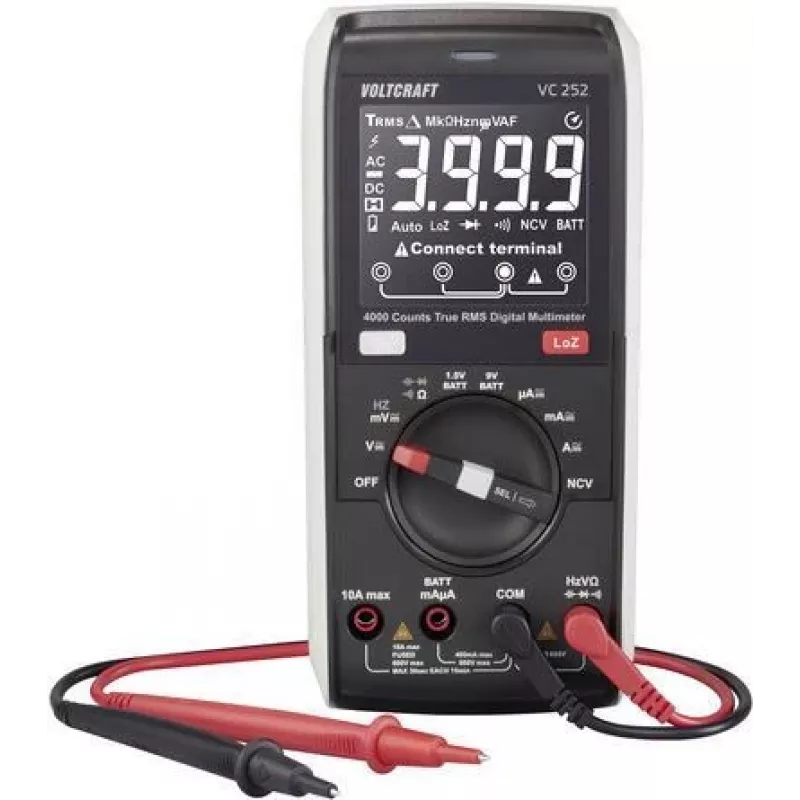

VOLTCRAFT VC252 multimetro digitale CAT III 600 V, 4000 counts VC-12884305

The VC252 from VOLTCRAFT brings professional-grade measurement precision into a compact, easy-to-use handheld format. Unlike basic multimeters that struggle with fluctuating signals, this model delivers stable, reliable readings across a wide range of electrical parameters, making it an essential tool for electricians, technicians, and ambitious DIY enthusiasts. With CAT III 600 V safety rating and a 4000-count display, it handles everything from delicate electronics to household mains installations with confidence.

Highlights

• 4000-count LCD display with clear, high-contrast readout
• CAT III 600 V safety rating for safe use on building installations
• Measures AC/DC voltage up to 600 V and current up to 10 A
• Resistance, capacitance, frequency, diode, and continuity testing
• Auto-ranging plus data hold and low battery indicator
• Compact, ergonomic design with protective rubber holster

In daily use

Whether you are troubleshooting a faulty circuit, verifying outlet voltage, or testing components on a PCB, the VC252 adapts instantly thanks to its auto-ranging function. The large backlit display remains readable even in dimly lit distribution boards, while the data hold feature lets you freeze a reading for later reference. The continuity buzzer provides quick go/no-go checks, and the diode test function helps identify faulty semiconductors without guesswork. Powered by a single 9 V battery, it is always ready when you are.

Full specifications

• Display: 4000 counts, LCD
• Safety rating: CAT III 600 V
• DC voltage range: 0.1 mV – 600 V
• AC voltage range: 0.1 mV – 600 V
• DC current range: 0.1 µA – 10 A
• AC current range: 0.1 µA – 10 A
• Resistance range: 0.1 Ω – 40 MΩ
• Capacitance range: 1 pF – 100 µF
• Frequency range: 0.001 Hz – 10 MHz
• Input impedance (DCV): 10 MΩ
• Diode test voltage: approx. 2.8 V
• Continuity beeper: yes
• Overload protection: yes
• Power supply: 1x 9 V block battery
• True RMS: no

Final note

For reliable measurements in the field or on the bench, the VOLTCRAFT VC252 combines essential functions with robust safety – a dependable companion for every electrical task.
