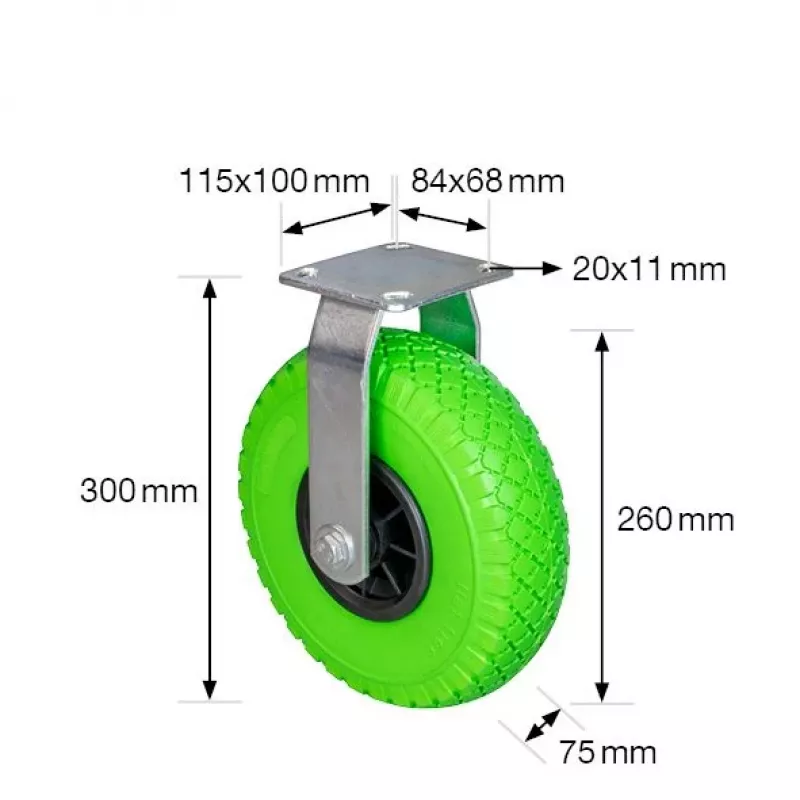

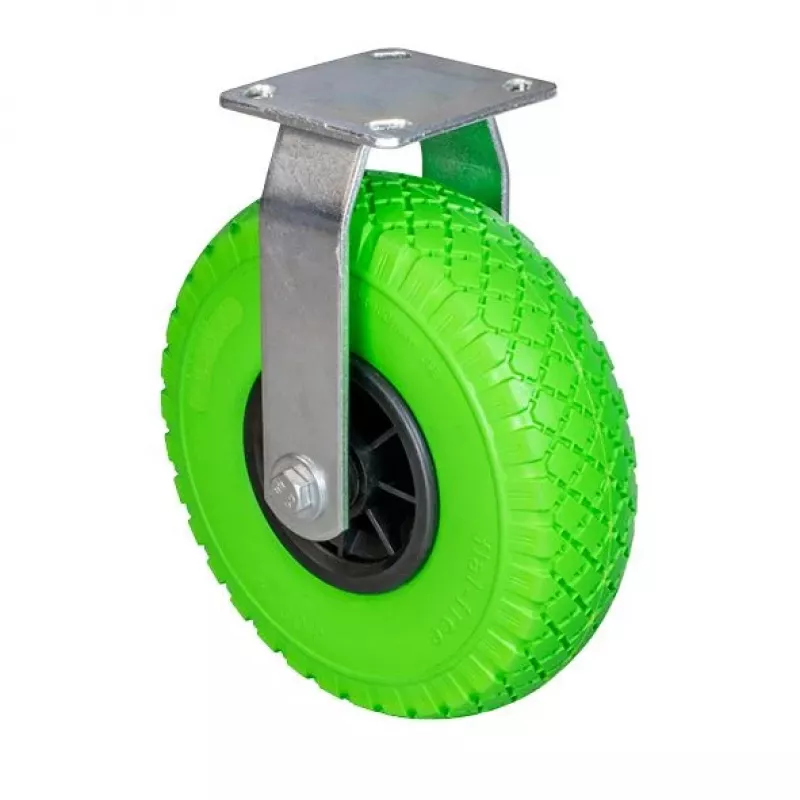

Wagner design yourself Rotella pivotante per carichi pesanti RO 7266 verde (4726601)

The RO 7266 fixed castor from the Wagner design yourself series stands out with its robust 200 kg load capacity and corrosion-resistant galvanized steel housing, making it a reliable choice for heavy-duty industrial and workshop applications where mobility and stability are critical.

Highlights

• 200 kg load capacity per castor
• 100 mm polyamide wheel with green tread
• Galvanized steel housing for corrosion resistance
• Plain bearing for smooth operation
• Top plate mounting with 105 x 85 mm plate

In daily use

This fixed castor provides directional stability for carts, trolleys, and equipment that need to move in a straight line. The polyamide wheel offers high wear resistance and low rolling resistance, while the plain bearing ensures quiet operation. The galvanized steel housing withstands harsh environments, and the temperature range of -20°C to +80°C allows use in cold storage or near ovens.

Full specifications

• Castor type: Fixed castor
• Load capacity: 200 kg
• Wheel diameter: 100 mm
• Wheel material: Polyamide (PA)
• Wheel colour: Green
• Housing material: Galvanized steel
• Bearing type: Plain bearing
• Mounting type: Top plate
• Top plate dimensions: 105 x 85 mm
• Top plate hole spacing: 80 x 60 mm
• Top plate hole diameter: 9 mm
• Overall height: 128 mm
• Wheel tread width: 35 mm
• Temperature range: -20°C to +80°C
• Wheel hardness: 70 Shore D
• Series: design yourself

Final note

With its heavy-duty construction and precise specifications, the RO 7266 is engineered for demanding applications where reliability and load capacity are non-negotiable.
