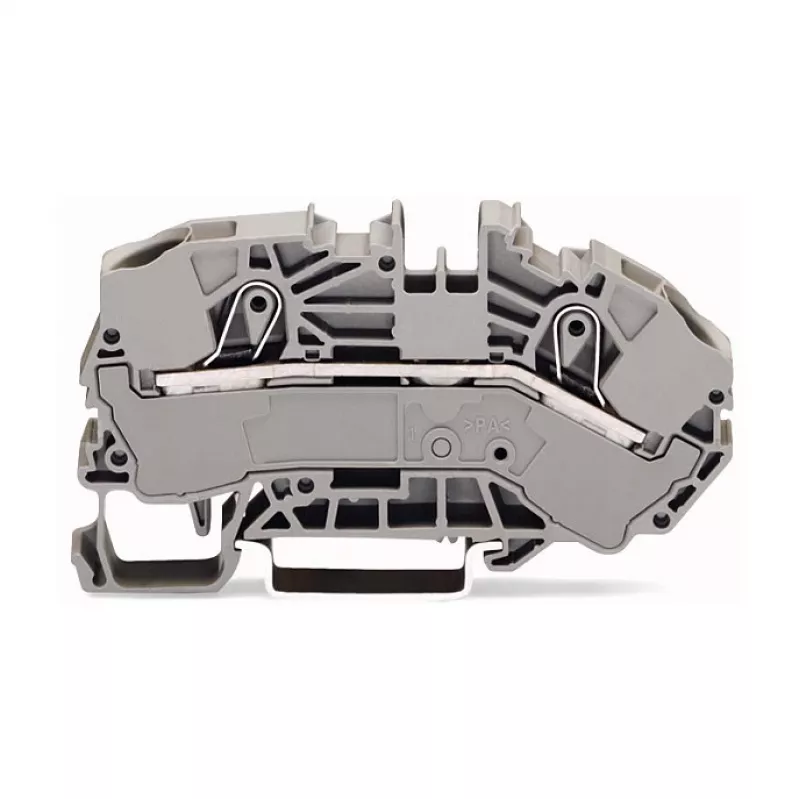

WAGO 2016-7601 morsetto passante, 2 conduttori, 16 mm², 800 V, grigio

The WAGO 2016-7601 is a high-quality through terminal block designed for reliable and maintenance-free electrical connections. With a compact design and push-in actuation, it offers fast and secure wiring for industrial applications. Rated for 800 V and 76 A, this terminal block is suitable for a wide range of power distribution and control systems.

Advantages

Push-in CAGE CLAMP® technology enables tool-free connection of solid and stranded conductors, saving installation time. The compact 12 mm width allows for high-density wiring on DIN-35 rails. Polyamide housing provides excellent insulation and durability in harsh environments.

Suitable for

• Industrial control panels
• Building automation
• Power distribution systems
• Machine wiring

Key specifications

• Number of conductors: 2
• Connection type: CAGE CLAMP®
• Actuation: Push-in
• Nominal cross-section: 16 mm² (AWG 6)
• Rated voltage (EN): 800 V
• Rated impulse voltage: 8 kV
• Rated current (EN): 76 A
• Solid conductor range: 0.5 … 25 mm² / 20 … 4 AWG
• Stranded conductor range: 0.5 … 16 mm² / 20 … 6 AWG
• Fine-stranded conductor range: 0.5 … 16 mm² / 20 … 6 AWG
• Stripped length: 20 … 22 mm
• Mounting type: DIN-35 rail
• Color: Gray
• Insulating material: Polyamide (PA)
• Number of potentials: 1
• Number of levels: 1
• Pollution degree: 3
• Operating temperature: -35 … +85 °C

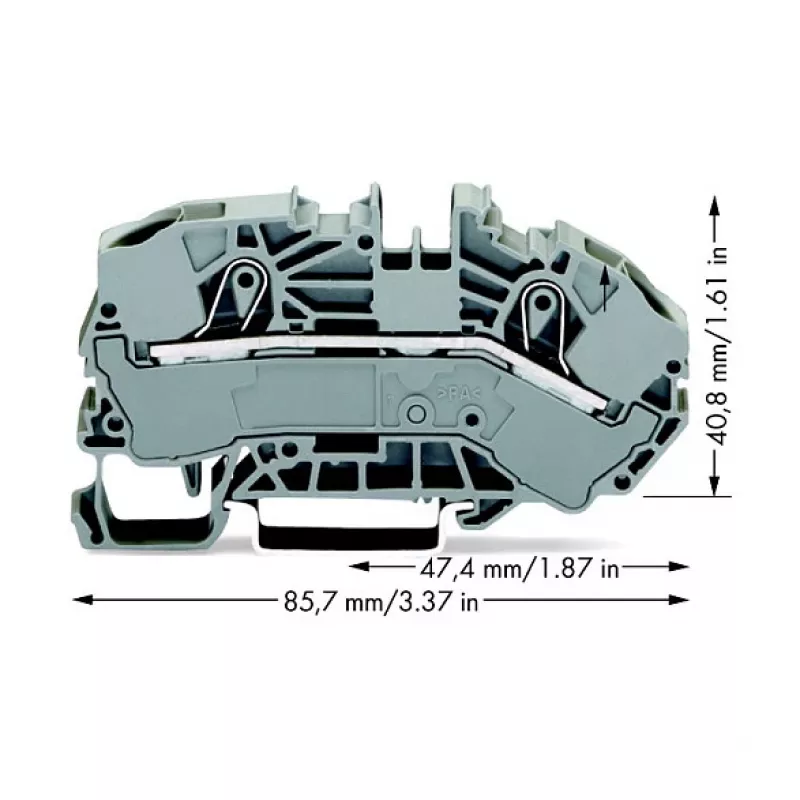

• Dimensions (W x H x D): 12 mm x 85.7 mm x 40.8 mm

Recommendations

For optimal performance, use with WAGO marking strips and accessories. Ensure proper stripping length and conductor insertion for secure connections.
