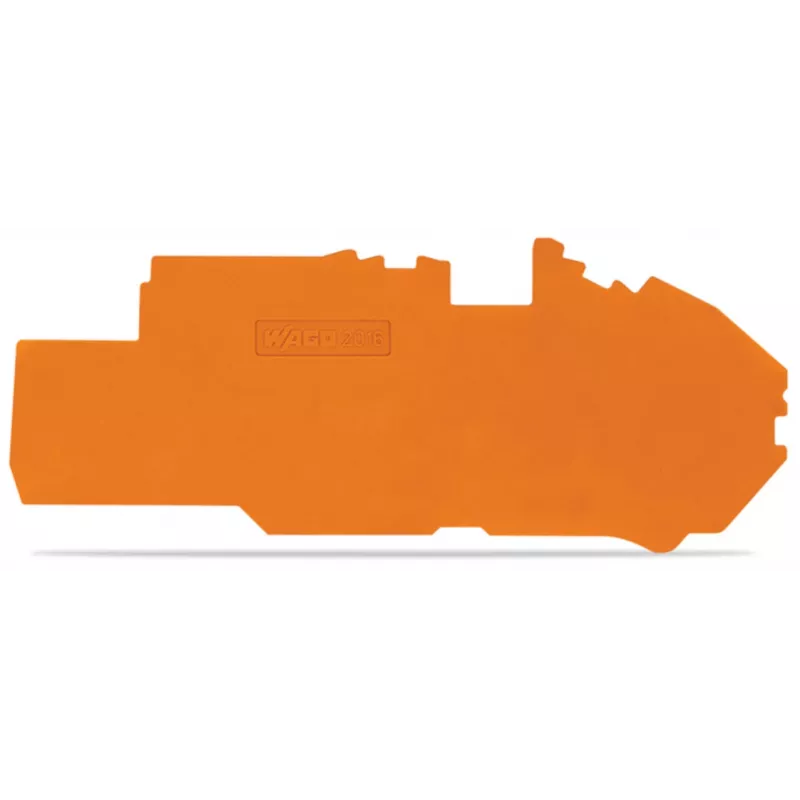

WAGO 2016-7792 copertura per morsetto arancione 1 mm 98,1 mm 41,7 mm 3,5 g

The WAGO 2016-7792 is a high-quality side cover designed for use with WAGO 2016 Series terminal blocks. It provides insulation and protection against accidental contact, ensuring safe and reliable electrical connections. Made from durable polyamide (PA) 66 with a UL 94 V-0 flammability rating, this cover is suitable for demanding industrial environments.

Advantages

Snap-on mounting for easy installation without tools. Orange color for easy identification. Compact dimensions (98.1 x 41.7 x 1 mm) and lightweight (3.5 g). Wide operating temperature range from -60 to +105 °C. RoHS compliant.

Suitable for

• Side covering of WAGO 2016 Series 2-conductor and 3-conductor through terminal blocks
• Insulation and protection in control cabinets, junction boxes, and industrial automation systems

Key specifications

• Product Type: Cover
• Application: Side cover for terminal block assemblies
• Compatible Terminal Block Series: WAGO 2016 Series
• Compatible Terminal Block Types: 2-conductor and 3-conductor through terminal blocks
• Color: Orange
• Material: Polyamide (PA) 66
• Flammability Rating: UL 94 V-0
• Mounting Type: Snap-on
• Operating Temperature Range: -60 to +105 °C
• Storage Temperature Range: -60 to +105 °C
• Pollution Degree: 3
• Insulating Material Group: I
• RoHS Compliance: Yes
• Dimensions (L x W x H): 98.1 x 41.7 x 1 mm
• Weight: 3.5 g

Recommendations

For optimal safety and performance, use this cover with WAGO 2016 Series terminal blocks. Ensure proper snap-on engagement to secure the cover in place.
